Automatic mm / inch conversion · Core engineering specifications
| Overall unit dimensions (single standard module) | 1160 x 580 x 2200 mm | |
|---|---|---|
| Clear shelf depth for document storage | 380 mm | |
| Adjustable shelf height increment | 32 mm | |
| Upper glass door section internal height | 1380 mm | |
| Lower solid door section internal height | 720 mm | |
| Tempered glass door panel thickness | 5 mm | |
| Carcass panel nominal thickness | 25 mm | |
| Back panel thickness | 9 mm | |
| Plinth base height | 100 mm | |
| Clear opening height per upper shelf compartment | 350 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Per-shelf static load capacity | 68 kg | |
|---|---|---|
| Door hinge cycle rating | 80000 cycles | |
| Keyed lock cycle rating | 10000 cycles | |
| Lower storage compartment static load | 90 kg | |
| Product net weight (single standard module) | 110 kg | |
| Edge band thickness | 1 mm | |
| Recommended maximum shelf load for glass door section | 45 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Carcass core material | E1 grade MDF core with mahogany wood veneer | |
|---|---|---|
| Upper door panel material | 5mm clear tempered glass in wood veneer frame | |
| Lower door panel material | 25mm solid wood-framed MDF with mahogany veneer | |
| Back panel material | 9mm plywood with mahogany veneer match finish | |
| Shelf material | 25mm veneer-covered MDF with PVC edge banding | |
| Hardware material | Zinc alloy with antique brass finish pull handles | |
| Lock mechanism | Keyed cam lock with 2 keys per lockable door | |
| Plinth base construction | Solid wood frame with veneer cladding | |
| Hinge hardware | Commercial grade concealed self-closing hinges | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Adjustable shelf configuration | 3 adjustable shelves per upper glass section, repositionable via metal pin supports | |
|---|---|---|
| Secured lower storage | Keyed cam locks on all lower solid doors, restricting access to confidential files | |

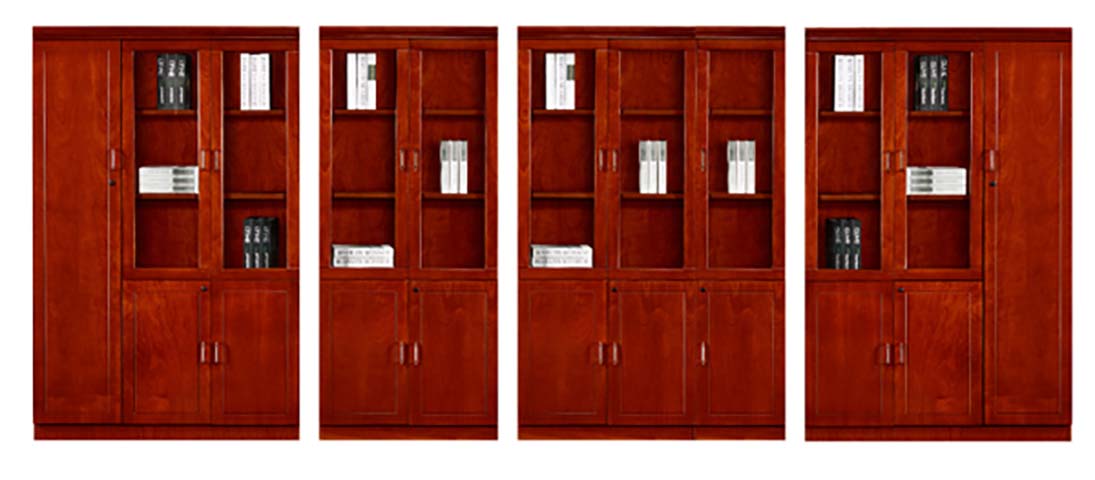

| Side wardrobe module option | Full-height solid door side compartment with hanging rod for garment/coat storage | |
| Modular combination capability | Connectable 2-door, 3-door, 4-door side/center units for continuous wall storage | |
| Door swing function | 110-degree opening angle for all hinged doors, providing full access to interior compartments | |
| Leveling adjustment | Glide levelers integrated into plinth base to compensate for uneven office floors | |
| Dust protection | Full perimeter door seals on glass and solid doors to prevent dust accumulation on stored documents | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Executive private office use | Matches formal mahogany executive styling for management office document storage and display | |
|---|---|---|
| Conference room document storage | Provides centralized storage for meeting materials, reference books, and archival records | |
| Government/agency office filing | Lockable lower storage meets requirements for secured official document storage | |
| Law/accounting firm office use | Formal aesthetic and high-capacity storage suitable for client file and reference book organization | |
| Modular wall installation | Connectable units create continuous storage walls along office perimeter walls | |
| Display of honors and reference materials | Glass upper doors allow visible display of awards, yearbooks, and frequently used references |
EU Market Access Requirements* EN Standards
| EN 14073-2:2004 | Office storage furniture safety requirements, applicable for stability and strength verification | |
|---|---|---|
| EN 14074:2004 | Office furniture moving parts durability and safety test methods for doors and locks |
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage furniture performance standard, applicable for shelf load and cycle testing | |
|---|---|---|
| ANSI/BIFMA X5.1-2017 | General office furniture safety and stability requirements for floor-standing units |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for dimensional and structural quality inspection | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor office air quality compliance | |
| GB/T 4897.3-2015 | Particleboard specification for furniture use, applicable if particleboard is used in core construction |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for dimensional and structural quality inspection; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor office air quality compliance; 3. GB/T 4897.3-2015: Particleboard specification for furniture use, applicable if particleboard is used in core construction; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
