PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3500 × 3500 × 2700 mm
Overall assembled dimensions	3500 x 3500 x 2700 mm
Canopy edge clearance above deck	2100 mm
Round granite base diameter	1000 mm
Granite base thickness	100 mm
Main support pole cross-section	80 x 55 mm
Support arm cross-section	25 x 40 mm
Canopy rib profile	15 x 25 mm
Canopy valance overhang length	100 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total assembled product weight	155 kg
Maximum static wind resistance rating	6 Beaufort scale
Canopy UV protection factor	UPF 50+
Recommended shade capacity	6 people
Canopy fabric water column resistance	300 mm
Base static stability load	90 kg
Frame corrosion resistance lifespan	5 years outdoor use
Adjustment mechanism cycle life	1000 open/close cycles
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Canopy fabric	210D PU-coated polyester, maroon color
Main support pole	Powder-coated aluminum with wood-grain finish
Canopy support ribs	Powder-coated aluminum, 8 total ribs
Offset support arm	Wood-grain finished aluminum with black steel joint brackets
Weighted base	Segmented solid natural granite, round shape
Adjustment hardware	Powder-coated carbon steel with black matte finish
Internal joint bushings	Nylon wear-resistant bushings
Canopy top vent	Polyester mesh vent at canopy apex
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Canopy operation	Manual crank lift for open and close
Canopy tilt adjustment	5-position angle tilt up to 45 degrees forward
Base rotation	360-degree foot-pedal controlled rotation
Canopy position lock	Positive lock at each tilt and rotation position
Base anchoring	Freestanding weighted design, no permanent deck bolting required
Canopy fabric replacement	Removable fabric with hook-and-loop fasteners on ribs
Crank handle storage	Foldable crank handle on lower pole section
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Riverside public terrace use	Suitable for scenic waterfront boardwalks and public viewing decks
Commercial outdoor dining	Suitable for restaurant and cafe patio seating areas
Residential backyard patio use	Suitable for private garden, poolside and deck spaces
Hotel resort outdoor lounge	Suitable for pool decks and open-air lounge zones
Open-air event space use	Suitable for temporary outdoor markets and event seating

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Outdoor furniture parasol safety requirements	EN 1991:2005+A1:2010
Textile solar UV protection	EN 13758:2001+A1:2006

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Outdoor furniture structural safety	GB 28007
Textile UV protection performance	GB/T 18830

Standardized tender description text

This product must meet the following technical requirements:
1. Outdoor furniture structural safety: GB 28007;
2. Textile UV protection performance: GB/T 18830;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CW-CU3500-WD-MAR-GR90

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CW-CU3500-WD-MAR-GR90

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CW-CU3500-WD-MAR-GR90Open Export Tool

Quick Actions

Post an RFQ

Product Description

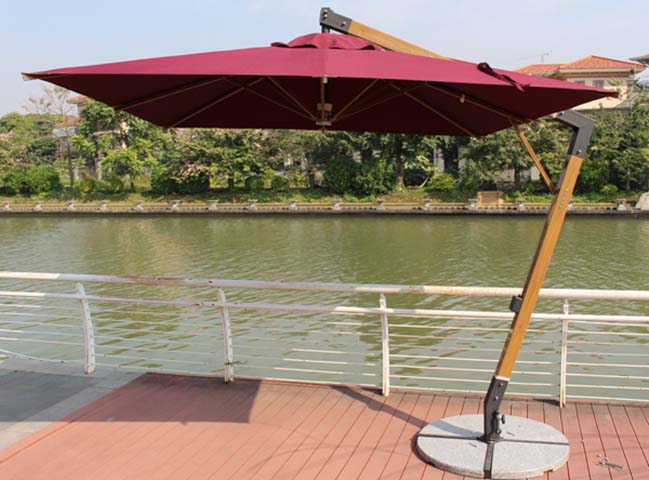

The unbranded 3.5m Square Wood-Grain Cantilever Patio Umbrella, model CW-CU3500-WD-MAR-GR90, delivers structured, high-function shade for a wide range of outdoor public and leisure settings. Visually, it pairs a warm wood-grain finished aluminum frame with a rich maroon canopy, balanced by a substantial round natural granite base that anchors the offset cantilever structure without disrupting open sightlines across seating areas. The 3500mm square canopy sits with 2100mm of edge clearance above ground, accented by a 100mm valance overhang and a fine mesh vent at the apex to encourage gentle air circulation, while the offset support arm eliminates central pole obstructions to the shaded space below. Its robust construction combines powder-coated aluminum poles and eight canopy support ribs, wear-resistant nylon joint bushings, matte black powder-coated carbon steel adjustment hardware, and segmented solid granite for the weighted base, with a 5-year outdoor corrosion resistance lifespan for the frame. The maroon 210D PU-coated polyester canopy offers UPF 50+ UV protection, 300mm water column resistance, and removes easily via hook-and-loop fasteners on ribs for straightforward replacement. Practical, user-centric functions include a manual crank lift for smooth canopy open and close, with a foldable crank handle that tucks neatly against the lower pole when not in use, 5-position forward tilt adjustment up to 45 degrees, and foot-pedal controlled 360-degree base rotation, each position secured with a positive lock to prevent unintended movement. The freestanding 90kg static load base requires no permanent deck bolting, supporting safe use up to 6 Beaufort wind conditions and providing comfortable shade for up to 6 people. This umbrella is well suited for riverside public terraces and scenic waterfront boardwalks, restaurant and cafe patio dining zones, hotel resort pool decks and open-air lounges, private residential backyard and poolside spaces, and temporary seating for open-air markets and outdoor events. For procurement, note that each unit ships across 2 cartons, with a packaged gross weight of 120kg, total packaging volume of 0.8 cubic meters, and an 40-minute assembly time per set; the fully assembled unit weighs 155kg, requiring two-person handling for final placement. The 1000mm diameter, 100mm thick granite base should be positioned on level, stable surfaces to ensure consistent static stability during use.

3.5m Square Wood-Grain Cantilever Patio Umbrella with Round Granite Base Specifications
