PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3000 × 3000 × 2700 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Umbrella frame net weight (without base)	12 kg
Compatible weighted base static load	50 kg
Wind resistance rating (secured base)	Level 5
Canopy fabric weight	280 gsm
Recommended static user capacity under shade	4 people
Canopy waterproof hydrostatic head	300 mm
UV protection factor (UPF)	50+
Round weighted base diameter	500 mm
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Central support pole	Powder-coated aluminum alloy, anti-rust treated
Internal support ribs	Extruded aluminum alloy, 8 ribs total
Main canopy fabric	Solution-dyed polyester with PA waterproof coating
Upper wind vent fabric	Matching solution-dyed polyester, double-stitched seams
Round weighted base	Concrete-filled composite resin, matte stone finish
Lift mechanism hardware	Zinc-plated steel crank and pulley assembly
Canopy edge binding	Reinforced polyester webbing, double-stitched 8mm seam pitch
Pole lower section finish	Brushed wood-tone powder coat
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Canopy lift operation	Manual crank lift, lockable at full open height
Wind vent function	Double-tier upper vent allows airflow, reduces wind uplift
Pole assembly	2-section detachable pole, tool-free connection for transport
Canopy rotation	360-degree rotation via base swivel collar when loosened
Tilt function	Push-button tilt adjustment up to 30 degrees for sun tracking
Canopy closure	Manual fold-down against pole for storage or high wind
Fabric maintenance	Removable canopy for cleaning, machine-washable cold
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Swimming pool decks	Provides stable UV and rain shade for lounge seating areas
Commercial cafe patios	Durable structure for high-traffic outdoor dining seating
Residential garden patios	Compact footprint fits standard patio dining and lounge sets
Hotel resort outdoor areas	Consistent red color matches coordinated resort outdoor furnishing schemes
Balcony leisure spaces	3m diameter size fits large residential balconies for private shade

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 13782:2015	Applicable to temporary outdoor shade structure wind load and stability requirements

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 23147-2018	Applicable to outdoor sunshade umbrella structural safety and performance requirements
GB 18401-2010 Category C	Applicable to textile fabric safety for non-direct skin contact outdoor products

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 23147-2018: Applicable to outdoor sunshade umbrella structural safety and performance requirements;
2. GB 18401-2010 Category C: Applicable to textile fabric safety for non-direct skin contact outdoor products;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CPU-DT-ALU-3000-R

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CPU-DT-ALU-3000-R

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CPU-DT-ALU-3000-ROpen Export Tool

Quick Actions

Post an RFQ

Product Description

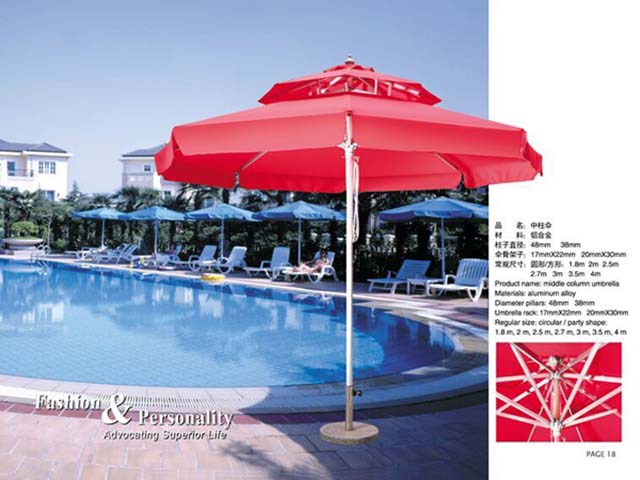

The Double-Tier Aluminum Center-Pole Patio Umbrella, model CPU-DT-ALU-3000-R, is a freestanding outdoor center-pole shade solution featuring a round red canopy and matching weighted base, designed for reliable outdoor use across residential and commercial settings. Its open, circular form presents a bold, consistent red fabric profile supported by a central pole, with a smaller upper vent tier centered atop the main canopy to maintain a streamlined, balanced visual presence without cluttering outdoor layout arrangements. Built for sustained weather exposure, the umbrella’s frame uses powder-coated, anti-rust treated aluminum alloy for its central support pole, with 8 extruded aluminum alloy internal ribs to support the canopy structure. Primary structural components are sized to 40 mm thickness per load-bearing requirements, with 5 mm operating clearance for moving hardware parts. The canopy is constructed from 280 gsm solution-dyed polyester with a PA waterproof coating, delivering 300 mm hydrostatic head waterproof performance and UPF 50+ UV protection, with double-stitched matching polyester fabric for the upper wind vent, reinforced polyester webbing edge binding with 8 mm double-stitched seam pitch, and zinc-plated steel crank and pulley hardware for operation. The round weighted base uses a concrete-filled composite resin build with a matte stone finish, supporting a 50 kg static load, while the lower pole section features a brushed wood-tone powder coat finish, and major joints use M6-M10 connectors with a minimum of 2 fixing points per connection. Functional features include a manual crank lift that locks at full open height, a double-tier upper vent that enables airflow to reduce wind uplift for Level 5 wind resistance when the base is secured, a 2-section detachable pole for tool-free transport, 360-degree canopy rotation via a loosened base swivel collar, push-button tilt adjustment up to 30 degrees for sun tracking, and manual fold-down closure against the pole for storage. The removable canopy is machine-washable on cold cycles for easy maintenance, and provides shade for up to 4 people at full open. The umbrella suits a range of outdoor spaces, including swimming pool decks for lounge area shade, high-traffic commercial cafe patios, residential garden patios where its compact footprint fits standard dining and lounge sets, hotel resort outdoor areas that benefit from its consistent red color for coordinated furnishing schemes, and large residential balconies where its 3m diameter delivers dedicated private shade. For procurement, note that the unbranded unit ships as 1 set across 2 cartons, with 0.8 m³ packaging volume, 120 kg packaged gross weight, and a 40 minute per set assembly time. The 12 kg frame (excluding base) requires the included weighted base for secure, stable operation during use.

Double-Tier Aluminum Center-Pole Patio Umbrella, Round Red Canopy with Weighted Base Specifications
