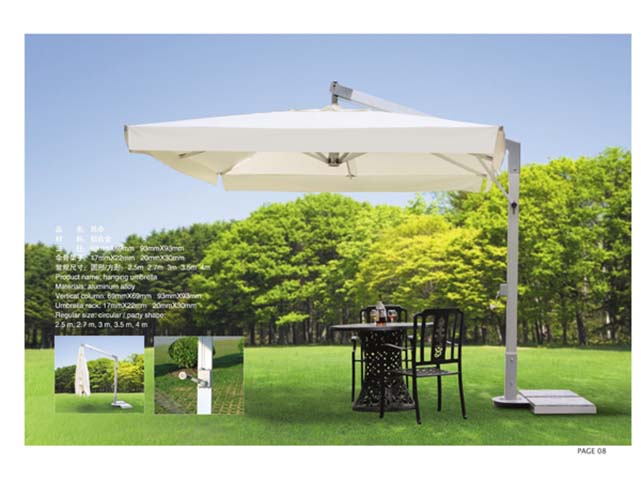

Product supplier3m Square Off-White Aluminum Cantilever Offset Hanging Patio Umbrella with Weighted Base, Powder-coated aluminum alloy, 93x93mm 2.6mm wall
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3000 × 3000 × 2700 mm | |
|---|---|---|
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total assembled product weight (with marble base) | 180 kg | |
|---|---|---|
| Static wind speed rating (anchored, closed in gusts) | 48 km/h | |
| Canopy fabric weight | 280 g/㎡ | |
| Fabric UV protection factor | UPF 50+ | |
| Fabric water column resistance | 300 mm | |
| Recommended static load for frame structure | 75 kg | |
| Fabric fade resistance warranty period | 3 years | |
| Frame corrosion resistance service life | 10 years | |
| Weighted base plate dimensions | 1000 x 1000 x 80 mm | |
| Reference Static Load | 150 kg depending on category |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Vertical support pole | Powder-coated aluminum alloy, 93x93mm 2.6mm wall | |
|---|---|---|
| Cantilever support arm | Powder-coated aluminum alloy, welded joint at pole top | |
| Canopy support ribs | Powder-coated aluminum alloy, 20x30mm 1.2mm wall | |
| Canopy fabric | 280g PA-coated waterproof polyester, UV-stabilized | |
| Weighted stabilization base | Solid natural marble slab, anti-slip rubber foot pads | |
| Adjustment hardware (crank, locks, bolts) | 304 stainless steel, rust-proof for outdoor exposure | |
| Canopy vent structure | Reinforced polyester mesh top vent, stitched seams | |
| Surface finish on metal parts | Matte light gray powder coating, scratch-resistant | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Canopy open/close operation | Side-mounted hand crank mechanism, smooth geared operation | |
|---|---|---|
| Canopy rotation range | 360-degree lockable rotation, foot/handle actuated lock | |
| Canopy tilt adjustment | 5-position angle tilt lock, 45degree adjustment range | |
| Canopy maintenance feature | Detachable canopy fabric, machine-washable for easy cleaning | |
| Wind stability feature | Central top vent, reduces wind lift under canopy | |
| Weighted base installation | Slab base mounts to pole bottom, no permanent ground anchoring required | |
| Canopy height adjustment | 200mm vertical height fine-tune via pole locking collar | |
| Folded storage function | Canopy folds vertically against support pole for off-season storage | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Patio dining areas | Covers 4-person round/square outdoor dining sets, no central pole obstruction | |
|---|---|---|
| Commercial outdoor seating | Suitable for cafe, restaurant, hotel courtyard seating areas | |
| Residential garden use | Fits backyard lawns, poolside patios, balcony lounge areas | |
| Park and public leisure spaces | Stable weighted base for high-traffic public outdoor zones | |
| Event pop-up shading | Removable, foldable design for temporary outdoor event shading | |
| Recommended matched furniture | Pairs with 1200 mm outdoor dining tables and 6dining chairs |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 13561:2015 | External blinds and awnings - Performance requirements including wind resistance for outdoor shading |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 21944.2-2008 | Outdoor leisure furniture - Umbrellas - Part 2: Cantilever patio umbrellas, safety and performance requirements | |
|---|---|---|
| GB 18401-2010 | National general safety technical code for textile products, Class C for outdoor decorative textiles |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 21944.2-2008: Outdoor leisure furniture - Umbrellas - Part 2: Cantilever patio umbrellas, safety and performance requirements; 2. GB 18401-2010: National general safety technical code for textile products, Class C for outdoor decorative textiles; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
