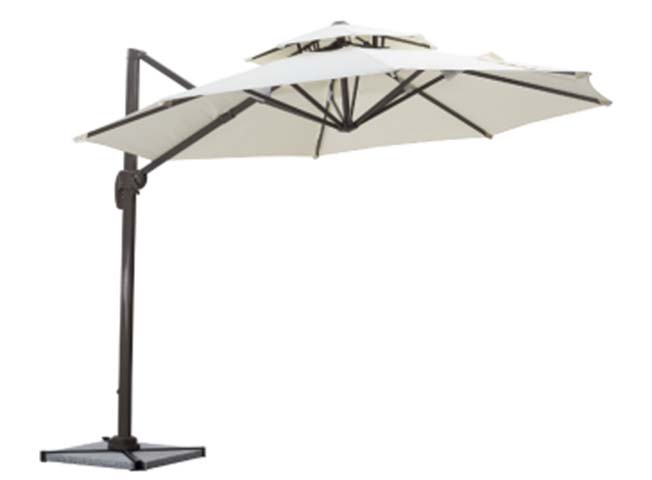

Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 3050 x 3050 x 2650 mm | |
|---|---|---|
| Canopy shade area | 9.3 m² | |
| Vertical main pole diameter | 48 mm | |
| Cross base footprint | 1000 x 1000 mm | |
| Cantilever arm length | 2750 mm | |
| Canopy rib length | 1525 mm | |
| Bottom canopy edge height from ground | 2100 mm | |
| Upper vent canopy diameter | 1200 mm | |
| Cross base arm width | 80 mm | |
| Pole wall thickness | 1.5 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
| Product net weight | 23 kg | |
|---|---|---|
| Recommended base ballast weight | 100 kg | |
| Maximum static wind resistance | 48 km/h | |
| Canopy UV protection rating | UPF 50+ | |
| Fabric water repellency grade | Grade 4 per AATCC 22 | |
| Canopy fabric weight | 281 gsm | |
| Recommended user capacity | 6 people | |
| Tilt angle adjustment range | 45 degrees | |
| Mechanism crank open/close cycles | 1000 cycles | |
| Reference Static Load | 150 kg depending on category |
Core acceptance fields · Panels / hardware / frame / upholstery
| Main vertical pole | Powder-coated dark bronze aluminum, 1.5mm wall thickness | |
|---|---|---|
| Cantilever support arm | Powder-coated dark bronze aluminum, triangular reinforced bracing | |
| Canopy support ribs | 8 pieces powder-coated carbon steel, 1.2mm wall thickness | |
| Main canopy fabric | 281 gsm solution-dyed polyester, PA water-repellent coating | |
| Upper vent canopy | Matching off-white solution-dyed polyester, stitched perimeter reinforcement | |
| Cross base frame | Powder-coated black steel, accepts concrete/sand weight plates | |
| Tilt/rotation mechanism housing | Die-cast aluminum with corrosion-resistant coating | |
| Canopy edge binding | Polyester webbing, double-stitched with UV-resistant thread | |
| Hardware fasteners | Stainless steel 304 grade, rust-resistant for outdoor use | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| 360-degree rotation | Foot-pedal actuated full rotation with positive lock positions | |
|---|---|---|
| Canopy tilt adjustment | 6-position locking tilt, adjustable up to 45 degrees via crank/lever | |
| Canopy open/close operation | Hand crank lift system with auto-lock when fully opened | |
| Double-vent wind ventilation | Upper independent vent allows airflow to reduce canopy wind lift | |
| Cantilever offset shade design | No central pole under canopy, creates unobstructed shade area below | |
| Cross base compatibility | Accepts sand/concrete weight plates or sandbags for ballast | |
| Canopy angle lock | Positive lock at each tilt position prevents unintended movement | |
| Quick disassembly | Tool-free removal of canopy and arm for off-season storage | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
| Residential patio use | Suitable for backyard patio seating, dining sets and lounge areas | |
|---|---|---|
| Poolside application | Corrosion-resistant frame works for high-humidity pool perimeter shading | |
| Commercial outdoor seating | Suitable for cafe and restaurant patio seating areas | |
| Garden leisure areas | Ideal for garden lounge sets and outdoor relaxation spaces | |
| Balcony use | Offset design fits large balconies without central pole obstruction | |
| Event temporary shading | Can be repositioned for small outdoor events and gatherings |
EU Market Access Requirements* EN Standards
| EN 13763-1:2009 | Applies to outdoor furniture umbrella mechanical safety and stability requirements | |
|---|---|---|
| EN 13561:2015 | Applies to external sun shading performance and wind resistance requirements |
Standards applicable to China-market projects
| GB/T 23173-2008 | Applies to parylene/coated metal corrosion resistance for outdoor metal frames | |
|---|---|---|
| GB 18401-2010 | Applies to textile safety requirements for canopy fabric direct contact use |
This product must meet the following technical requirements: 1. GB/T 23173-2008: Applies to parylene/coated metal corrosion resistance for outdoor metal frames; 2. GB 18401-2010: Applies to textile safety requirements for canopy fabric direct contact use; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
