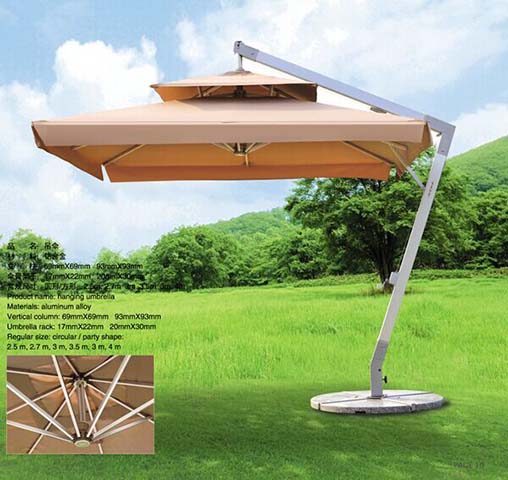

Product supplier3m Square Double-Tier Taupe Cantilever Offset Patio Umbrella with Round Weighted Base, Powder-coated matte silver aluminum alloy
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3000 × 3000 × 2700 mm | |
|---|---|---|
| Lower vertical column section | 69 x 69 mm aluminum alloy | |
| Upper vertical column section | 95 x 93 mm aluminum alloy | |
| Thinner umbrella rib section | 17 x 32 mm aluminum alloy | |
| Thicker umbrella rib section | 20 x 30 mm aluminum alloy | |
| Double-tier upper vent canopy width | 900 mm | |
| Aluminum frame wall thickness | 1.8 mm | |
| Rib count | 8 ribs | |
| Crank handle height above ground | 1500 mm | |
| Canopy edge clearance above ground | 2100 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net product weight (excluding base) | 26 kg | |
|---|---|---|
| Included round weighted base weight | 90 kg | |
| Maximum recommended wind speed for safe use | 48 km/h | |
| Canopy UV block rate | 98% | |
| Fabric water column resistance | 300 mm | |
| Canopy fabric weight | 250 gsm | |
| Fabric fade resistance lifespan | 3 years | |
| Rotation/tilt mechanism cycle lifespan | 1000 cycles | |
| Recommended maximum user coverage | 6 people | |
| Round weighted base diameter | 1000 mm |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main vertical support column | Powder-coated matte silver aluminum alloy | |
|---|---|---|
| Offset cantilever support arm | Powder-coated matte silver aluminum alloy | |
| Umbrella support ribs | Aluminum alloy with reinforced triangular bracing | |
| Main canopy fabric | 250gsm taupe solution-dyed polyester with PU coating | |
| Double-tier upper vent panel | 250gsm taupe solution-dyed polyester | |
| Round weighted base | Concrete-filled steel shell with weather-resistant coating | |
| Hardware fasteners | 304 stainless steel | |
| Frame connection brackets | Die-cast aluminum alloy | |
| Operating crank handle | Glass-filled nylon with soft-touch grip | |
| Canopy edge binding | Reinforced polyester webbing | |
| Rib end caps | UV-stabilized polypropylene | |
| Rotation/tension bearings | Greased steel bushing bearings |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Canopy opening mechanism | Hand crank lift system to deploy and retract canopy smoothly | |
|---|---|---|
| Base rotation feature | 360° foot-pedal activated rotation to reposition shade direction | |
| Canopy tilt adjustment | 6-position angular tilt to track sun angle throughout the day | |
| Double vent function | Dual-tier canopy vent allows wind passage to reduce uplift and wind stress | |
| Locking function | Auto-lock joint system holds canopy at selected angle without drift | |
| Canopy removable design | Detachable canopy fabric for off-season cleaning and replacement | |
| Base transport feature | Built-in recessed lift points for two-person repositioning on patios | |
| Storage compatibility | Accommodates standard fitted umbrella cover for winter weather protection | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential patio use | Suitable for backyard patio seating and dining sets up to 6 seats | |
|---|---|---|
| Commercial hospitality use | Appropriate for café, restaurant and poolside outdoor seating areas | |
| Garden lawn installation | Works on level grass lawns with included heavy round weighted base | |
| Pool deck placement | Corrosion-resistant aluminum frame suitable for chlorinated pool-side environments | |
| Event rental application | Heavy-duty construction supports repeated setup and teardown for outdoor events | |
| Balcony use (large spaces) | Fits oversized residential balconies over 16 sqm for private outdoor shade | |
| Year-round temperate climate use | Designed for use in areas with light to moderate wind and seasonal rain |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 13561:2015 | Applies to external sunshades, covering wind resistance and mechanical performance |
|---|
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 23147-2018 | Applies to outdoor leisure sunshade umbrellas, covering structural stability and fabric performance | |
|---|---|---|
| GB 18401-2010 Category C | Applies to textile canopy fabrics, covering formaldehyde and colorfastness limits |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 23147-2018: Applies to outdoor leisure sunshade umbrellas, covering structural stability and fabric performance; 2. GB 18401-2010 Category C: Applies to textile canopy fabrics, covering formaldehyde and colorfastness limits; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
