Automatic mm / inch conversion · Core engineering specifications

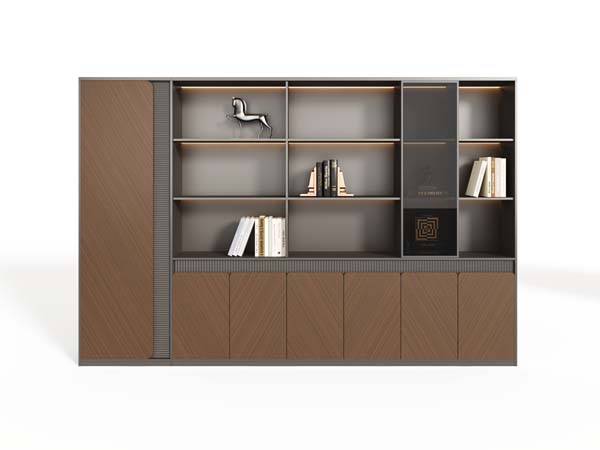

| Overall dimensions | 3200 x 400 x 2000 mm | |
|---|---|---|
| Left tall closed door width | 640 mm | |
| Upper open shelving section height | 1000 mm | |
| Lower closed cabinet section height | 800 mm | |
| Ribbed accent trim height (upper/lower divider) | 200 mm | |
| Individual lower cabinet door width | 427 mm | |
| Open shelf internal depth | 350 mm | |
| Open shelf clearance height per tier | 310 mm | |
| Vertical ribbed side trim width | 80 mm | |
| Side accent frame thickness | 25 mm | |
| Back panel thickness | 9 mm | |
| Main cabinet panel thickness | 18 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Unit net weight | 180 kg | |
|---|---|---|
| Static load per open shelf | 20 kg | |
| Total unit static load capacity | 300 kg | |
| Recommended maximum load per lower cabinet shelf | 30 kg | |
| Hinge cycle rating for cabinet doors | 80000 open/close cycles | |
| Drawer slide load rating (if fitted internally) | 35 kg | |
| LED strip operational lifespan | 50000 hours | |
| Surface abrasion resistance | 2000 cycles | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Cabinet carcass | E1 grade melamine-faced particleboard | |
|---|---|---|
| Closed door panels | Diagonal-grain warm brown melamine finish over engineered wood core | |
| Frame and shelf interiors | Matte dark gray melamine laminate | |
| Decorative ribbed trim | Grooved engineered wood with matching dark gray finish | |
| Edge banding | 1 mm thick PVC edge tape sealed to all panel edges | |
| Cabinet hinges | Cold-rolled steel soft-close concealed hinges | |
| Integrated lighting | 12V warm-white LED strip recessed into front edge of each open shelf | |
| Back panel | 9 mm thick hardboard with dark gray finish | |
| Feet/base | Integrated powder-coated steel leveling base | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Upper open shelving storage | Fixed divided grid shelves with integrated LED lighting for display and frequently accessed materials | |
|---|---|---|
| Lower closed cabinet storage | 7 hinged doors (1 tall left, 6 lower right) concealing adjustable shelves for concealed file and supply storage | |
| Soft-close door operation | Concealed hinges enable 110-degree door opening with soft-close damping to prevent slamming | |
| LED lighting control | Recessed LED strips feature hardwired low-voltage connection with wall switch control for adjustable display illumination | |
| Adjustable internal shelving | Lower cabinet shelves support 32 mm pitch height adjustment to accommodate varying file and storage box sizes | |
| Anti-tip safety | 2 wall-mounted anti-tip connectors secure the tall unit to prevent forward tipping during use | |
| Cable management | Pre-drilled rear cable access ports support power for LED strips and small displayed devices | |
| Door lock compatibility | All closed doors support optional key lock installation for secure storage of confidential documents | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Executive office background | Positioned behind an executive desk to store documents and display decorative items, matching professional office design | |
|---|---|---|
| Open-plan office resource area | Used as a centralized storage and display unit for shared office materials and team recognition awards | |
| Reception waiting area | Installed in reception zones to display company credentials, reading materials and decorative pieces | |
| Conference room perimeter storage | Mounted against conference room walls to store meeting materials, books and presentation supplies | |
| Manager private office | Installed in manager offices for organized storage of files, reference books and personal work items | |
| High-end study room | Used in premium home studies for book storage, collectible display and concealed office supply storage |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Safety and strength requirements for domestic and office storage furniture, applicable to unit stability | |
|---|---|---|
| EN 1728:2012 | Test methods for furniture strength, durability and stability, applicable to performance validation | |
| EN 13986:2004 | Wood-based panels for construction and furniture use, applicable to panel material conformity |
US and Canada office-furniture standards
| North America procurement and testing reference | Recommended references: ANSI/BIFMA X5.9 |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to dimensional and structural acceptance | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, minimum E1 grade required for indoor office use | |
| GB/T 4897.3-2015 | Particleboard specifications for furniture use, applicable to core panel material performance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to dimensional and structural acceptance; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, minimum E1 grade required for indoor office use; 3. GB/T 4897.3-2015: Particleboard specifications for furniture use, applicable to core panel material performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
