Light Natural Solid Wood Arched Spindle Queen Platform Bed Specifications

SW-SPINDLE-QN-001

代码:3Z57P4V1
获取供应商报价
2026-09-15 10:56人气: 1
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

SW-SPINDLE-QN-001

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall footprint2150 x 1910 x 1140 mm
Compatible mattress size1800 x 2000 mm
Headboard height from floor1140 mm
Footboard height from floor630 mm
Sleeping surface height from floor250 mm
Underbed clearance250 mm
Spindle slat thickness on headboard/footboard30 mm
Side rail thickness35 mm
Recommended mattress thickness300 mm
Corner post diameter60 mm
Slat spacing on bed base70 mm
Number of bed base slats14
Center support leg count3
Slat Spacing80 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total static weight capacity227 kg
Net product weight36 kg
Recommended maximum mattress weight45 kg
Per slat static load capacity30 kg
Frame joint durability10000 cycle load test
Warranty period5 years
Bed Static Load Reference400 kg
Per-slat Load Reference60 kg
Recommended Procurement WarrantyFrame 10 years; hardware 5 years; upholstery 2 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Frame materialKiln-dried solid beech/pine wood
FinishClear natural wood wax oil
Bed base slatsSolid wood slats with anti-slip silent strips
Hardware connectorsZinc-plated steel bolts and barrel nuts
Corner post treatmentRounded edge polished solid wood posts
Center support beamSolid wood longitudinal beam
Foot padsNon-slip felt floor protection pads
Surface treatmentSanded smooth 240 grit finish prior to oil application
Slat Thickness15 mm bent plywood or solid timber
Primary Connector SpecificationReference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color CountRecommended 6timber/upholstery options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Support typePlatform slat system, no box spring required
Assembly requirementKnock-down assembly with included hex key
Underbed access250 mm clearance for robot vacuum and low-profile storage bins
Headboard functionCurved vertical slat design for back support when sitting upright
Footboard functionLow spindle railing to prevent mattress slippage without blocking sightlines
Noise reductionAnti-slip silent strips between slats and frame to reduce creaking
Mattress retentionRecessed frame lip to hold mattress in place and prevent lateral shift
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight130 kg/set
Reference Packaging Volume0.9 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Primary applicationResidential master or guest bedroom for adult double occupancy
Style compatibilityNordic, Japanese, light natural wood and modern casual interior schemes
Recommended pairingMatching light wood nightstands, dressers and Windsor style seating
Ceiling height requirementMinimum 2400 mm ceiling height to preserve headboard visual proportion
User group suitabilityAdults and teen users, low platform height suitable for senior users
Placement recommendationPosition with 600 mm minimum clearance on both sides and foot of bed
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1725:2012Domestic furniture beds, test methods for safety, durability and stability
EN 12521:2015Domestic furniture strength, durability and safety requirements for seating, applicable edge safety
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable for frame strength and finish quality
GB 18584-2001Indoor decorating and refurbishing materials limit of harmful substances for wooden furniture
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for frame strength and finish quality;
2. GB 18584-2001:Indoor decorating and refurbishing materials limit of harmful substances for wooden furniture;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · SW-SPINDLE-QN-001

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · SW-SPINDLE-QN-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · SW-SPINDLE-QN-001打开导出工具

页面快速操作

发布采购询价

产品描述

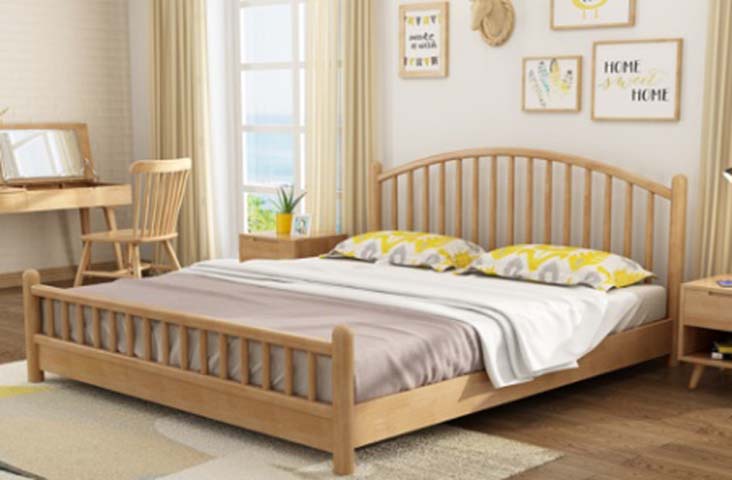

The Light Natural Solid Wood Arched Spindle Queen Platform Bed, model SW-SPINDLE-QN-001, features a refined, timeless silhouette defined by a gracefully arched headboard lined with vertical solid wood spindles and a low-profile matching spindle footboard. The design balances open, airy visual weight with structured lines, creating a soft focal point without overwhelming surrounding interior elements. Constructed with a kiln-dried solid beech or pine wood frame, the bed is built to hold its form over extended use, with joints validated through repeated load testing. All wood surfaces are sanded smooth before application of a clear natural wood wax oil finish that highlights the material’s inherent grain. The base uses solid wood or bent plywood slats fitted with anti-slip silent strips, supported by a central longitudinal solid wood beam, with zinc-plated steel bolts and barrel nuts securing all connections. Corner posts are polished to rounded edges for safety, and non-slip felt foot pads protect finished flooring from scuffs. As a platform bed, the slat support system eliminates the need for a separate box spring. The curved spindle headboard provides stable back support for sitting upright to read or relax, while the low footboard railing prevents mattress slippage without obstructing sightlines across the room. A recessed frame lip adds extra security to hold the mattress in place and prevent lateral shift, and the silent strips between slats and frame reduce unwanted creaking during use. The underbed clearance accommodates robot vacuums and low-profile storage bins, and the low sleeping surface height offers easy access for senior users alongside adult and teen occupants. This bed is designed for residential use, ideal for master bedrooms or dedicated guest rooms, and pairs seamlessly with Nordic, Japanese, light natural wood, and modern casual interior schemes. It works best with complementary light wood nightstands, dressers, and Windsor-style seating, and requires sufficient ceiling height to preserve the headboard’s visual proportion, with recommended clearance around the sides and foot of the bed for ease of movement. For procurement planning, note the bed ships in knock-down form with an included hex key for assembly, and comes with a 5-year warranty. Buyers should account for total packaged weight and volume when arranging delivery and storage, and select a compatible queen-size mattress within the recommended weight limit to ensure optimal long-term performance.
