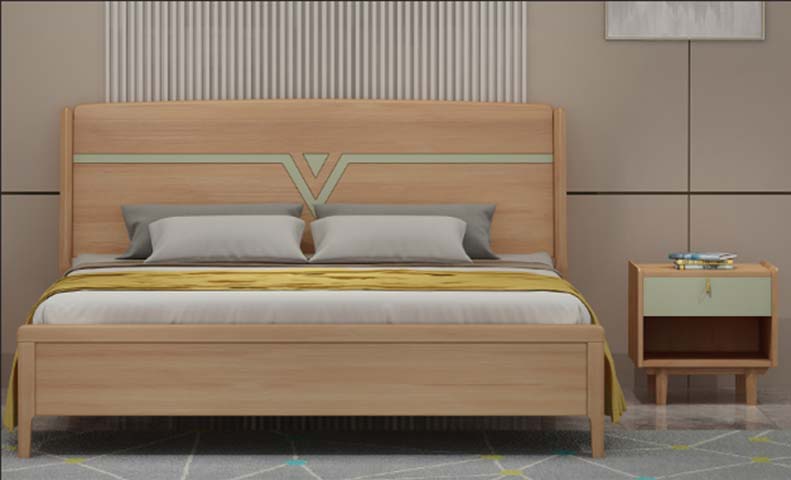

Light Oak Panel Bed with Sage Green Chevron Inlay Headboard and Matching Nightstand Specifications

PNL-LTOK-CHV180-NS01

代码:4XBYLNV1
获取供应商报价
2026-09-15 12:40人气: 1
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

PNL-LTOK-CHV180-NS01

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall external dimensions1880 x 2170 x 1320 mm
Compatible mattress dimensions1800 x 2000 mm
Headboard height1320 mm
Footboard height380 mm
Under-bed clearance250 mm
Sleeping surface height450 mm
Side rail thickness30 mm
Wooden slat thickness18 mm
Slat spacing50 mm
Center support leg count3
Matching nightstand dimensions500 x 400 x 550 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total static load capacity350 kg
Per-slat static load30 kg
Nightstand top static load25 kg
Nightstand drawer dynamic load10 kg
Bed frame net weight85 kg
Warranty period365 days
Bed Static Load Reference400 kg
Per-slat Load Reference60 kg
Recommended Procurement WarrantyFrame 10 years; hardware 5 years; upholstery 2 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Headboard panelOak wood veneer over MDF substrate
Headboard inlaySage green painted MDF chevron detail
Bed corner legsSolid rubberwood with natural lacquer finish
Support slatsSolid pine wood slats
Connecting hardwareZinc-plated steel three-in-one connectors
Nightstand drawer frontSage green painted MDF matching headboard inlay
Nightstand legsSolid rubberwood matching bed legs
Nightstand top surfaceOak wood veneer matching bed finish
Surface finishMatte UV-cured lacquer
Slat Thickness15 mm bent plywood or solid timber
Primary Connector SpecificationReference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color CountRecommended 6timber/upholstery options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Mattress support systemWooden slat base with center support legs
Assembly typeKnock-down flat pack assembly
Nightstand storage configuration1 soft-close upper drawer + lower open shelf
Under-bed accessibility250mm floor clearance
Headboard functionFull-width upright panel
Footboard functionLow-profile solid panel
Frame joint designReinforced mortise-and-tenon hardware connections
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight130 kg/set
Reference Packaging Volume0.9 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Primary use spaceResidential master bedrooms
Secondary use spaceShort-term rental and boutique hotel guest rooms
Recommended configurationPair with 1 or 2 matching nightstands
Mattress compatibilityWorks with 280 mm thick memory foam, hybrid or innerspring mattresses
Style compatibilityPairs with neutral beige, sage green and warm wood tone decor
User suitabilityIdeal for adult users seeking a low-maintenance, sturdy wooden bed frame
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1725:1998Domestic furniture – Beds and mattresses – Safety requirements and test methods, applicable to structural stability
EN 12521:2015Furniture – Strength, durability and safety for domestic seating and storage, applicable to matching nightstand units
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to finished panel bed structure and dimensions
GB 18584-2001Formaldehyde emission limit for interior decoration wooden furniture, ≤0.124mg/m³ required for indoor use
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to finished panel bed structure and dimensions;
2. GB 18584-2001:Formaldehyde emission limit for interior decoration wooden furniture, ≤0.124mg/m³ required for indoor use;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · PNL-LTOK-CHV180-NS01

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · PNL-LTOK-CHV180-NS01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · PNL-LTOK-CHV180-NS01打开导出工具

页面快速操作

发布采购询价

产品描述

The Light Oak Panel Bed with Sage Green Chevron Inlay Headboard and Matching Nightstand from Youzan Furniture, model PNL-LTOK-CHV180-NS01, delivers understated Scandinavian-inspired design anchored by solid wood framing and raised panel construction for both residential and select commercial settings. Visually, the set is anchored by a full-width upright headboard, where light oak veneer forms a warm, consistent base, accented by a structured sage green chevron inlay that creates subtle geometric contrast without overwhelming surrounding decor. The low-profile footboard keeps sight lines open, while solid rubberwood legs finished with natural lacquer carry the cohesive wood tone through to the floor, balanced by a matte UV-cured lacquer finish across all surfaces for a soft, non-reflective look. The matching nightstand mirrors the bed’s finish palette, with an oak veneer top, sage green painted MDF drawer front, and matching rubberwood legs to create a coordinated built-in aesthetic when placed beside the bed. The bed frame utilizes reinforced mortise-and-tenon hardware connections with zinc-plated steel three-in-one connectors for structural integrity, set on a slatted support base crafted from solid pine. The headboard panels and inlay details use MDF substrates with oak veneer or painted finishes to deliver consistent visual texture while reducing material variability. The slatted base includes center support legs to distribute weight evenly, removing the need for an additional box spring for compatible mattresses. Under the frame, a 250 mm floor clearance offers accessible open storage space beneath the sleeping surface, which sits at a height that eases getting in and out of bed for most adult users. The accompanying nightstand adds functional bedside storage with one soft-close upper drawer for smaller personal items and a lower open shelf for frequently accessed objects like books or charging devices. This set is designed first for residential master bedrooms, where its warm neutral palette pairs seamlessly with neutral beige, sage green, and warm wood tone decor schemes. It also performs well in short-term rental properties and boutique hotel guest rooms, offering a polished, durable furnishing option that requires minimal ongoing maintenance. The bed supports memory foam, hybrid, or innerspring mattresses up to 280 mm thick sized to 1800 x 2000 mm, and can be configured with one or two matching nightstands to suit room layout needs. For procurement planning, note the set ships as knock-down flat pack, with a reference assembly time of 40 minutes per set, to account for on-site installation scheduling. The bed frame carries a 365-day warranty, and weight ratings should be reviewed to confirm alignment with expected use cases. Buyers should also plan for appropriate freight handling, as the packaged set has a total gross weight of 130 kg across its delivery cartons, to ensure smooth delivery and placement in the intended space.
