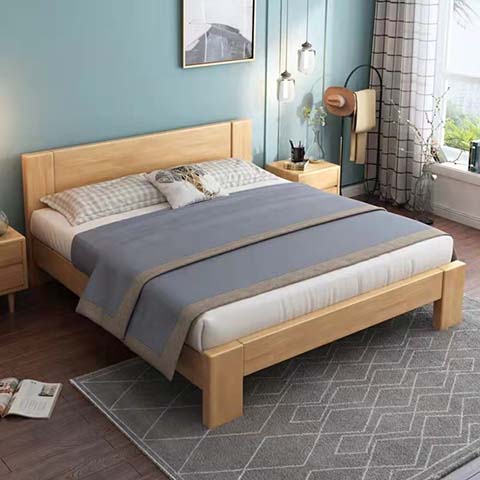

商品供应商Light Solid Wood Low-Profile Platform Bed with Panel Headboard，Solid pine wood
可联系供应商获取生产周期与报价。
PRODUCT MODULE 01 / 06
基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源：工厂资料结构化字段，最终以实测值为准
| 产品外部尺寸（宽 × 深 × 高） | 1642 × 2140 × 1160 mm | |
|---|---|---|
| Headboard panel thickness | 30 mm | |
| Side rail thickness | 40 mm | |
| Platform sleeping surface height (from floor) | 356 mm | |
| Under-bed ground clearance | 190 mm | |
| Slat thickness | 20 mm | |
| Slat spacing | 75 mm | |
| Number of support slats | 18 | |
| Foot rail height from floor | 356 mm | |
| Center Support Leg Count | Recommended 6legs |
PRODUCT MODULE 02 / 06
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源：产品性能数据，采购前请核对具体测试口径
| Total static weight capacity | 363 kg | |
|---|---|---|
| Recommended mattress thickness | 305 mm | |
| Number of center support legs | 3 | |
| Product net weight | 35 kg | |
| Finish abrasion resistance | 4000 cycles | |
| Suitable number of sleepers | 2 | |
| Noise reduction performance | Silent operation under normal load | |
| Bed Static Load Reference | 400 kg | |
| Per-slat Load Reference | 60 kg | |
| Recommended Procurement Warranty | Frame 10 years; hardware 5 years; upholstery 2 years |
PRODUCT MODULE 03 / 06
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源：以工厂材质清单与验货报告为准
| Frame main structure | Solid pine wood | |
|---|---|---|
| Support slats | Solid pine wood slats | |
| Center reinforcement | Powder-coated steel support bar | |
| Surface finish | Low-VOC matte natural wood finish | |
| Connection hardware | Zinc-plated steel bolts and barrel nuts | |
| Legs | Solid pine square block legs | |
| Headboard panel | Solid pine flat panel | |
| Slat padding | Self-adhesive felt pads | |
| Slat Thickness | 15 mm bent plywood or solid timber | |
| Primary Connector Specification | Reference M8-M10 bolts with at least 2 fixing points per corner | |
| Reference Finish / Color Count | Recommended 6timber/upholstery options |
PRODUCT MODULE 04 / 06
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源：功能配置参数，以供应商正式规格为准
| Mattress support | Wooden slat platform, no box spring required | |
|---|---|---|
| Assembly method | Knock-down assembly with included hardware and instructions | |
| Under-bed access | 190mm clearance for cleaning and robot vacuum passage | |
| Headboard function | Fixed integrated panel headboard, supports pillow placement and wall protection | |
| Edge support | Full perimeter solid wood side and foot rails | |
| Connection stability | Locking bolt connections prevent wobble with regular use | |
| Square block leg cross-section | 80 x 80 mm | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源：外贸报价与装柜测算参考
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源：依据产品结构与品类整理的推荐应用场景
| Residential master bedroom | Suitable for standard queen mattress, pairs with matching nightstands for coordinated bedroom sets | |
|---|---|---|
| Nordic/minimalist interior schemes | Light natural wood finish matches Scandinavian and contemporary home decor styles | |
| Guest bedroom use | Low-profile, sturdy construction suitable for regular guest occupancy | |
| Small to medium sized bedrooms | Compact footprint with integrated headboard eliminates need for separate headboard mounting | |
| Hardwood or carpeted flooring | Solid block legs distribute weight evenly without damaging floor surfaces | |
| Users seeking no-box-spring design | Integrated slat system reduces overall mattress set cost |
STANDARD S1
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| EN 1725:1998 | Domestic furniture – Beds and mattresses – Safety requirements and test methods, applicable for safety validation | |
|---|---|---|
| EN 747-1:2012 | Domestic furniture – Bunk beds and high beds – Part 1: Safety, strength and durability requirements, reference for structural strength | |
| EN 12521:2015 | Domestic furniture – Strength, durability and safety – Requirements for tables, reference for hardware strength |
STANDARD S3
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for frame strength and finish quality checks | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wooden furniture, applicable for VOC testing | |
| GB/T 10357.6-2013 | Furniture mechanical performance test for beds, applicable for static load and durability verification |
招标文件标准化描述文本
本产品须满足以下技术参数要求： 1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable for frame strength and finish quality checks； 2. GB 18584-2001：Indoor decoration material limit of harmful substances for wooden furniture, applicable for VOC testing； 3. GB/T 10357.6-2013：Furniture mechanical performance test for beds, applicable for static load and durability verification； 最终交付参数、检测报告和验收标准以双方采购合同为准。
