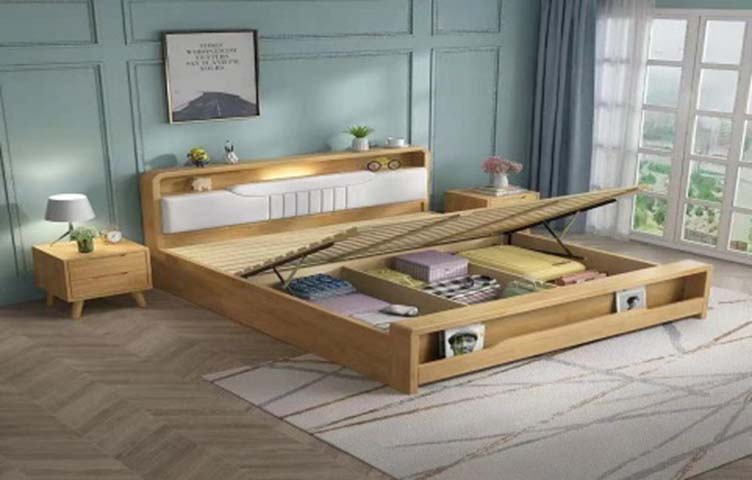

Light Wood Hydraulic Lift Storage Bed with Shelf Headboard and Footboard Cubbies Specifications

HB-LIFT-1800

代码:7CHR1UV1
获取供应商报价
2026-09-15 11:47人气: 1
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

HB-LIFT-1800

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions1890 x 2220 x 1070 mm
Compatible mattress size1800 x 2000 mm
Sleep surface height with mattress480 mm
Under-bed storage cavity internal height250 mm
Headboard height1070 mm
Footboard height340 mm
Floor clearance under frame25 mm
Headboard shelf depth150 mm
Footboard cubby opening height200 mm
Center support beam thickness30 mm
Slat spacing70 mm
Recommended mattress thickness250 mm
Side Rail Thickness40 mm
Center Support Leg CountRecommended 6legs
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total static weight capacity410 kg
Hydraulic lift assist capacity50 kg
Under-bed divided storage volume720 L
Slat static load per slat30 kg
Headboard shelf load capacity10 kg
Bed Static Load Reference400 kg
Per-slat Load Reference60 kg
Recommended Procurement WarrantyFrame 10 years; hardware 5 years; upholstery 2 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Main frame material18mm thick light natural oak veneer MDF panel
Slat material15mm thick solid pine wood slats
Headboard center padWhite linen-look fabric upholstery over 40mm high-density foam
Lift mechanismBlack powder-coated steel hydraulic gas struts, 2 units
Hardware fastenersZinc-plated steel cam bolts and corner brackets
Footboard cubby dividers12mm thick MDF panels with matching wood veneer
Frame edge finishSanded clear lacquer with rounded corner edges
Hinge assemblyHeavy-duty steel hinges mounted at headboard base
Slat Thickness15 mm bent plywood or solid timber
Primary Connector SpecificationReference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color CountRecommended 6timber/upholstery options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Hydraulic lift accessHeadboard-hinged platform lifts to 45° open angle, soft-close gas struts prevent slamming
Divided under-bed storage3 separate compartment sections to organize bedding and personal items
Headboard top shelfRecessed open shelf runs full width of headboard for decor, books and small items
Footboard open cubbies2 front-facing open cubby shelves for display of books or decor items
Integrated lighting prepRecessed channel under headboard shelf for optional LED strip installation
Mattress retention2 raised stoppers at headboard end prevent mattress sliding during lift operation
Lift assist operationSingle-person operation via recessed fabric pull strap at foot end, no heavy lifting required
Bed set compatibilityPre-drilled matching points for paired 2-drawer nightstands of matching finish
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight130 kg/set
Reference Packaging Volume0.9 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Residential master bedroomKing size configuration for primary bedroom use for two adults
Small apartment bedroomLarge under-bed storage eliminates need for separate dressers in compact spaces
Matching bedroom set configurationPairs with matching 2-drawer light wood nightstands for coordinated room design
Modern Scandinavian style interiorsLight wood finish and clean lines match Nordic and light neutral decor schemes
Guest bedroom upgradeStorage capacity organizes spare bedding and guest supplies out of sight
Family household useDurable frame and high weight capacity support regular daily use for adults
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1725:1998Domestic furniture - Beds and mattresses - Safety requirements and test methods
EN 12520:2015Furniture - Strength, durability and safety - Requirements for domestic seating applicable edges
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable for frame and panel construction
GB 18580-2017Formaldehyde emission limits for wood-based panels, E0 grade recommended for indoor use
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for frame and panel construction;
2. GB 18580-2017:Formaldehyde emission limits for wood-based panels, E0 grade recommended for indoor use;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · HB-LIFT-1800

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · HB-LIFT-1800

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · HB-LIFT-1800打开导出工具

页面快速操作

发布采购询价

产品描述

The Light Wood Hydraulic Lift Storage Bed from Youzan Furniture, model HB-LIFT-1800, presents a streamlined modern form defined by clean lines, a cohesive light walnut finish, and integrated storage elements woven into its structured silhouette. Its layout balances functional utility with understated visual appeal: a tall, full-width headboard anchors the design, while a lower footboard with open front-facing cubbies maintains an open, unobtrusive presence in the room. The bed’s king-size configuration supports standard 1800 x 2000 mm mattresses, with a finished sleep surface height that supports easy entry and exit for most adults. The frame is constructed from 18mm thick light natural oak veneer MDF panels finished with sanded clear lacquer and rounded corner edges for a soft, polished feel. Its support system uses 15mm thick solid pine wood slats, paired with heavy-duty steel hinges at the headboard base and two black powder-coated steel hydraulic gas struts for the lift mechanism. The center section of the headboard is upholstered in white linen-look fabric over 40mm high-density foam, adding subtle textural contrast, while all hardware uses zinc-plated steel cam bolts and corner brackets for secure assembly. Footboard cubby dividers are cut from 12mm thick MDF panels finished in matching wood veneer for consistent visual flow. Practical functionality is central to the design: the headboard-hinged platform lifts to a 45° open angle with soft-close gas struts that prevent slamming, operated single-handedly via a recessed fabric pull strap at the foot end to eliminate heavy lifting. The under-bed area offers divided storage across three separate compartments to organize bedding and personal items, while the headboard incorporates a full-width recessed open shelf for display of decor, books, and small everyday items. The two footboard cubbies provide additional accessible open storage, and a recessed channel under the headboard shelf is prepped for optional LED strip installation to add customizable ambient lighting. Raised stoppers at the headboard end hold the mattress securely in place during lift operation. This bed is well suited for a range of residential spaces, including master bedrooms for two adults, small apartment bedrooms where its large under-bed storage removes the need for separate standalone dressers, guest bedrooms where it can tuck spare bedding and supplies out of sight, and family households where its durable build supports regular daily use. Its light wood finish and clean lines align seamlessly with modern Scandinavian and light neutral interior schemes, and it pairs with matching light wood nightstands for a fully coordinated bedroom design. For procurement, note that each unit ships across multiple cartons, with a reference assembly time of 40 minutes per set. The slatted support system eliminates the need for a separate box spring, and the integrated storage features reduce the need for additional freestanding storage furniture, supporting efficient space planning. The design’s compatibility with matching case goods allows for cohesive furnishing of full bedroom suites for both residential multi-room projects and individual home upgrades.
