Low-Profile Light Oak Slatted Platform Bed Frame (No Headboard) Specifications

PF-LOAK-2000

代码:CVYKZ7V1
获取供应商报价
2026-08-16 13:27人气: 34
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

PF-LOAK-2000

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall assembled dimensions2000 x 2200 x 250 mm
Inner mattress support area1800 x 2000 mm
Floor clearance under frame180 mm
Perimeter frame rail thickness70 mm
Perimeter frame rail height120 mm
Support slat thickness20 mm
Support slat width70 mm
Slat spacing (gap between slats)76 mm
Total slat count for king size28 pcs
Center support rail width70 mm
Leg count (perimeter + center)10 pcs
Side Rail Thickness40 mm
Slat Spacing80 mm
Center Support Leg CountRecommended 6legs
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total static load capacity (mattress + users)1000 kg
Frame net weight (without nightstands)70 kg
Under-bed storage accessible height170 mm
Recommended mattress thickness range300 mm
Supported user count2 adults
Slat center support static load per slat60 kg
Fastener torque rating for assembly12 N·m
Finish abrasion resistance (surface)1000 cycles
Bed Static Load Reference400 kg
Per-slat Load Reference60 kg
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Perimeter frame railsFAS-grade solid light oak, natural wood wax oil finish
Support slatsSolid beech wood, sanded smooth unfinished surface
Center support railSolid oak, matching frame material, mortise-and-tenon joint to end rails
Integrated block legsSolid oak, one-piece construction with corner frame rails, no separate hardware
Connecting hardwareZinc-plated steel bolts and barrel nuts, corrosion-resistant coating
Anti-slip slat padsEVA rubber pads between slats and frame, reduces movement and noise
Surface finishFood-grade natural wood wax oil, zero added formaldehyde, matte sheen
Optional matching nightstandsSolid light oak, single drawer with open lower shelf, matching tapered legs
Slat Thickness15 mm bent plywood or solid timber
Primary Connector SpecificationReference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color CountRecommended 6timber/upholstery options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Mattress support designSlatted base eliminates need for box spring, allows 360° airflow under mattress
Assembly methodBolt-together flat-pack assembly, no special woodworking tools required
Edge support performanceSolid perimeter rails prevent mattress edge sag when sitting on bed side
Under-bed accessOpen 180mm clearance allows robot vacuum access and low-profile storage bins
Custom size compatibilityFrame can be cut to fit 1200/1500/1800/2000mm width standard mattress sizes
Optional accessory fitPre-drilled holes allow installation of matching headboard, leg height extensions, or under-bed drawers
Noise dampingEVA slat pads and tight mortise joints eliminate squeaking during normal use
Floor protectionIntegral leg bottoms include pre-applied felt pads to prevent hardwood floor scratching
Integrated block leg height180 mm
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight130 kg/set
Reference Packaging Volume0.9 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Small residential bedroomsLow profile design reduces visual bulk for compact studio or apartment spaces
Minimalist/Japandi style interiorsLight oak natural finish and no-headboard design matches muted, uncluttered decor
Low-height mattress setups250mm total height creates floor-bed aesthetic popular for modern bedroom design
Child and senior friendly spacesLow step-in height reduces fall risk when entering or exiting the bed
Rooms with paired nightstandsMatching finish coordinates with the two matching bedside units shown in the image
Vacation rental / short stay furnishingsDurable solid wood construction withstands frequent guest use
Allergen-reduced bedroom environmentsSlatted base improves airflow to reduce mattress dust mite accumulation
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1725:1998Domestic furniture - Beds and mattresses - Safety requirements and test methods
EN 1334:1996Domestic furniture - Beds and mattresses - Test methods for strength and durability
EN 717-1:2004Wood-based panels - Determination of formaldehyde release - Part 1: Formaldehyde emission by chamber method, E1 ≤0.124mg/m³
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applies to dimensional stability and joint strength
GB 18584-2001Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture, formaldehyde emission ≤1.5mg/L
GB/T 1952.2-2011General technical requirements for spring and upholstered mattresses, applies to slat support spacing compatibility
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applies to dimensional stability and joint strength;
2. GB 18584-2001:Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture, formaldehyde emission ≤1.5mg/L;
3. GB/T 1952.2-2011:General technical requirements for spring and upholstered mattresses, applies to slat support spacing compatibility;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · PF-LOAK-2000

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · PF-LOAK-2000

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · PF-LOAK-2000打开导出工具

页面快速操作

发布采购询价

产品描述

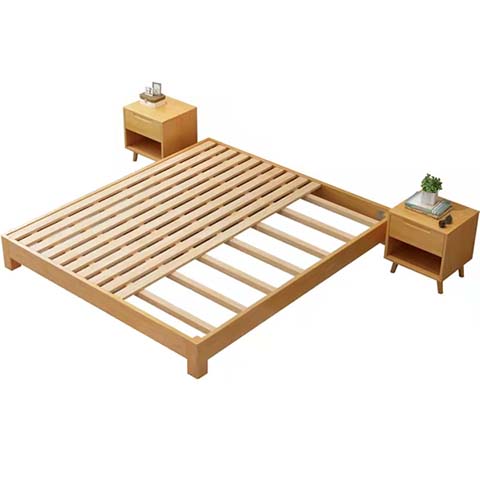

The Low-Profile Light Oak Slatted Platform Bed Frame (No Headboard), model PF-LOAK-2000, features a clean, unadorned rectangular form with no integrated headboard, creating a streamlined silhouette that sits close to the floor. Its slatted support structure sits within thick, solid perimeter rails, with evenly spaced slats forming a flat, open support plane that avoids visual clutter. The frame is built with FAS-grade solid light oak for perimeter rails, center support rails, and integrated block legs, which are formed as one piece with corner rails without separate attachment hardware. The center rail connects to end rails via mortise-and-tenon joints, while support slats are crafted from solid beech wood with a smooth sanded unfinished surface. All oak components are finished with food-grade natural wood wax oil with a matte sheen, containing zero added formaldehyde. Connections use zinc-plated steel bolts and barrel nuts with a corrosion-resistant coating, and EVA rubber pads sit between slats and the frame to reduce movement and noise. The slatted base eliminates the need for a box spring, enabling full airflow under the mattress, while thick solid perimeter rails prevent mattress edge sag when seated on the bed side. Open clearance under the frame accommodates robot vacuums and low-profile storage bins, and pre-drilled holes support optional add-ons including a matching headboard, leg height extensions, or under-bed drawers. The frame supports two adults with a total static load capacity of 1000 kg, and EVA pads paired with tight mortise joints prevent squeaking during regular use. It arrives as a flat-pack bolt-together assembly requiring no specialized woodworking tools, with a reference assembly time of 40 minutes per set. This bed frame suits small residential bedrooms such as compact studios and apartments, where its low profile reduces visual bulk, as well as minimalist and Japandi style interiors that favor muted, uncluttered decor. Its low total height creates a popular floor-bed aesthetic for modern bedroom designs, and its low step-in height makes it suitable for child and senior friendly spaces by reducing fall risk during entry and exit. It also works well for vacation rental and short stay furnishings, as its solid wood construction holds up to frequent guest use, and pairs seamlessly with optional matching light oak nightstands featuring a single drawer and open lower shelf. For procurement, note that the inner mattress support area fits a 1800 x 2000 mm mattress, with a recommended mattress thickness of 300 mm, though the frame can be cut to accommodate a range of standard width mattress sizes. The set ships across two cartons with a total packaged gross weight of 130 kg, so delivery access and moving support should be planned in advance, and fasteners should be tightened to the specified torque rating during assembly to maintain structural stability.
