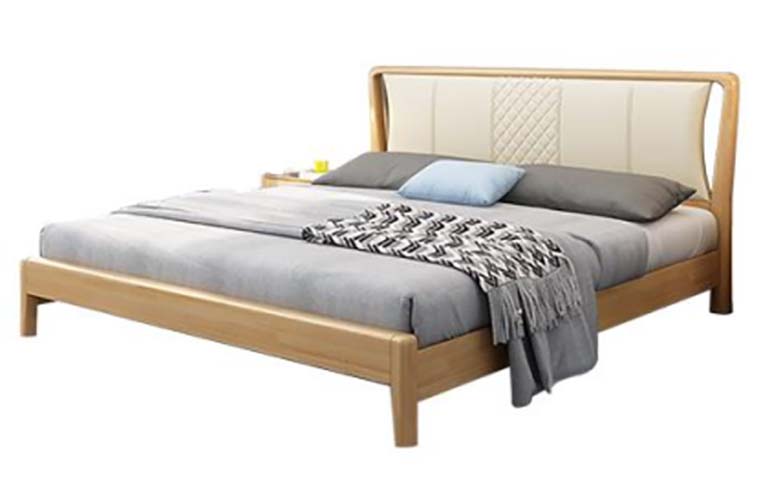

Light Solid Wood Upholstered Platform Bed with Diamond-Quilted Headboard Specifications

UPB-LW-DQH-1800

代码:MPJ3W3V1
获取供应商报价
2026-08-16 12:49人气: 35
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

UPB-LW-DQH-1800

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions2240 x 1890 x 1170 mm
Fits mattress size1800 x 2000 mm
Headboard height from floor1170 mm
Side rail top height from floor267 mm
Leg height203 mm
Under-bed clearance152 mm
Side rail thickness64 mm
Headboard upholstered panel thickness80 mm
Footboard height from floor305 mm
Mattress recess depth50 mm
Individual slat width70 mm
Slat spacing gap70 mm
Slat Spacing80 mm
Center Support Leg CountRecommended 6legs
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total static weight capacity363 kg
Product net weight61 kg
Compatible mattress thickness305 mm
Center support beam count1
Support slat count14
Recommended user count2 adults
Frame service life reference10 years
Upholstery abrasion resistance30000 double rubs
Bed Static Load Reference400 kg
Per-slat Load Reference60 kg
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Bed frame, rails and footboardSolid light rubberwood with natural matte finish
Headboard outer frameCurved solid hardwood matching natural wood finish
Headboard upholsteryCream woven polyester-linen blend fabric
Headboard padding40mm thick 35kg/m³ high-density polyurethane foam
Support slatsLaminated veneer lumber (LVL) bent slats
Center support beamSolid kiln-dried hardwood
Bed legsTapered solid hardwood, 60mm top diameter
Connecting hardwareZinc-plated steel bolts and barrel nuts
Foot padsNon-slip PE plastic floor protection pads
Seam construction on headboardStitched diamond quilting with 8mm seam pitch
Slat Thickness15 mm bent plywood or solid timber
Primary Connector SpecificationReference M8-M10 bolts with at least 2 fixing points per corner
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Slat support systemNo box spring required, direct mattress placement on slats
Mattress retentionRecessed platform edge prevents lateral mattress movement
Under-bed accessOpen 152mm clearance for robot vacuum access and low-profile storage
Headboard back supportPadded curved design provides lumbar support when sitting upright in bed
Assembly structureKnock-down flat pack construction with cam lock and bolt connections
Noise reductionTight fitted slat sockets and bolted connections eliminate squeaking during use
Cleaning accessSmooth finished wood surfaces and spot-cleanable upholstery for easy maintenance
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight130 kg/set
Reference Packaging Volume0.9 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Residential primary bedroom useSized for 1.8m double mattress, ideal for adult master bedrooms
Nordic/Japandi style interiorsLight natural wood and cream upholstery matches minimalist neutral decor
Small to medium bedroom layoutsLow-profile design does not overwhelm compact room dimensions
Robot vacuum compatible homes152mm under-bed clearance allows automated cleaning access
Users who read in bedPadded curved headboard provides comfortable back support for upright sitting
Mattress upgrade compatibilityWorks with memory foam, latex and spring mattresses without box spring
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1725:1998Domestic furniture - Beds and mattresses - Safety requirements and test methods
EN 1022:2018Domestic furniture - Seating - Determination of stability, applies to seated headboard use
EN 12520:2015Domestic furniture - Strength, durability and safety requirements for tables and seating
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applies to frame strength and dimensions
GB 18584-2001Indoor decorating and refurbishing materials limit of harmful substances for wooden furniture
GB/T 1952.2-2011Spring soft mattress furniture mechanical performance test methods, applies to support surface
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applies to frame strength and dimensions;
2. GB 18584-2001:Indoor decorating and refurbishing materials limit of harmful substances for wooden furniture;
3. GB/T 1952.2-2011:Spring soft mattress furniture mechanical performance test methods, applies to support surface;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · UPB-LW-DQH-1800

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · UPB-LW-DQH-1800

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · UPB-LW-DQH-1800打开导出工具

页面快速操作

发布采购询价

产品描述

This unbranded light solid wood upholstered platform bed features a streamlined, low-profile silhouette aligned with minimalist Nordic and Japandi design sensibilities, anchored by a diamond-quilted cream headboard framed by gently curved solid hardwood that matches the frame’s natural matte finish. Tapered solid wood legs lift the frame to create open under-bed space, while a recessed platform edge sits flush with the mattress footprint to maintain a clean, uncluttered visual line across the entire piece. Construction centers on a solid light rubberwood frame for side rails and footboard, paired with a single kiln-dried hardwood center support beam and 14 laminated veneer lumber bent slats. The headboard is upholstered in a woven polyester-linen blend fabric, padded with high-density polyurethane foam for a soft, supportive surface. Zinc-plated steel bolts and barrel nuts secure all connections, fitted with tight slat sockets to reduce movement noise, while non-slip PE plastic foot pads protect finished flooring below. The slat support system eliminates the need for a box spring, allowing direct placement of memory foam, latex, or spring mattresses, with a recessed edge that prevents lateral mattress shifting during use. The curved, padded headboard delivers targeted lumbar support for users sitting upright to read or relax in bed, while the open under-bed clearance accommodates robot vacuum access and low-profile storage. Smooth matte wood surfaces and spot-cleanable upholstery simplify routine maintenance, and the knock-down flat pack design uses cam lock and bolt connections for straightforward assembly. This bed is sized to fit a standard 1.8m double mattress, with a static weight capacity suited for two adult users. It is an ideal fit for residential primary bedrooms, particularly in small to medium layouts where its low-profile frame will not visually overwhelm compact spaces, and pairs seamlessly with neutral, light-toned minimalist decor schemes. For procurement planning, note the unit ships across multiple cartons, with a listed reference assembly time per set, and a 10-year reference service life for the frame. Coordinate delivery access to match packaged shipment dimensions, and account for total packaged gross weight when arranging receiving and in-home placement. The design is compatible with a range of common mattress types, eliminating the added cost of a separate box spring for furnishing projects.
