Name: Light Natural Wood Storage Platform Bed with Headboard Shelf and Footboard Book Slots
Brand: Youzan Furniture
SKU: N1KDWF

纠错时间

修改字段

原参数

修改后参数

说明 / 状态

暂无参数纠错记录，发现错误可点击行末旗标提交

PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	1890 × 2160 × 1030 mm
compatible mattress size	1800 x 2000 mm
sleeping surface height	460 mm
headboard shelf depth	150 mm
headboard total height	1030 mm
footboard height	310 mm
footboard open slot height	200 mm
under-bed floor clearance	20 mm
slat width	70 mm
slat spacing	75 mm
Side Rail Thickness	40 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

total static load capacity	272 kg
bed frame net weight	114 kg
recommended mattress thickness	254 mm
expected service life	10 years
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

headboard panel	Solid rubberwood, 25mm thick, rounded edges, matte clear finish
side/foot rails	Solid rubberwood, 30mm thick, rounded corners, matching finish
support slats	Solid pine plywood, 18mm thick, sanded smooth
center support rail	Solid hardwood, 40mm thick, runs full length of bed
support legs	Solid wood tapered legs, 50mm diameter, floor-protective pads
hardware connectors	Zinc-plated steel bolts, dowels, and cam locks
surface finish	Low-VOC matte clear lacquer, 0.1mm coating thickness
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

headboard storage shelf	Continuous recessed top shelf along full headboard width for books, clocks, small decor
footboard book slots	Two open recessed slots in footboard panel for vertical book/magazine storage
slat support system	14 slats spaced 75mm apart with 1 center support rail, no box spring required
rounded edge safety design	All exposed frame corners rounded to 10mm radius to prevent impact injury
floor protection	All support legs fitted with non-marking felt pads to prevent floor scratching
flat-pack assembly	Ships disassembled with all hardware and hex key included for two-person assembly
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

primary use space	Residential master or guest bedrooms, for adult double sleeping
target user	Users preferring nordic/minimalist style, needing bedside open storage
recommended configuration	Pair with matching 1-drawer open-shelf nightstands on both sides
mattress compatibility	Works with memory foam, latex, or spring mattresses up to 254mm thick
style suitability	Fits scandinavian, modern minimalist, and japanese-inspired interior designs
installation note	Requires 100mm clearance from wall to access headboard shelf fully

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1725:1998	Domestic furniture - Beds and mattresses - Safety requirements and test methods
EN 12520:2015	Furniture - Strength, durability and safety - Requirements for domestic seating (applicable for edge safety)

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for dimensional stability and finish quality
GB 18584-2001	Limit of harmful substances in wooden furniture, applicable for formaldehyde emission control

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable for dimensional stability and finish quality；
2. GB 18584-2001：Limit of harmful substances in wooden furniture, applicable for formaldehyde emission control；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · STB-LN-1800-STORAGE

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · STB-LN-1800-STORAGE

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · STB-LN-1800-STORAGE打开导出工具

页面快速操作

发布采购询价

产品描述

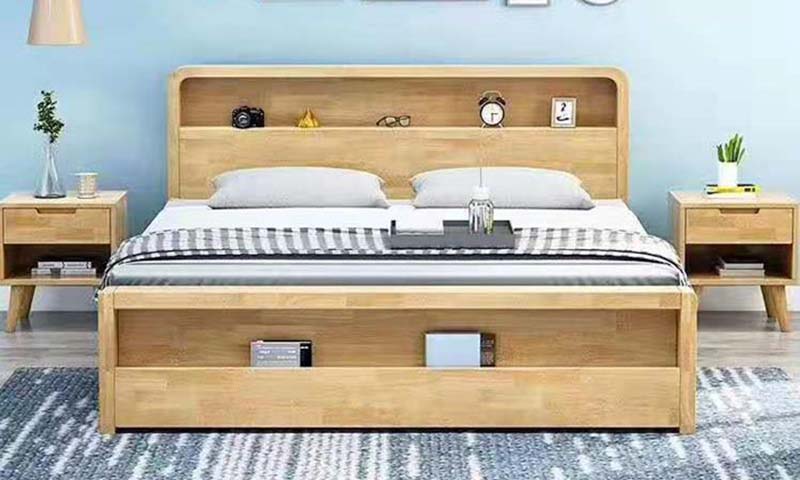

Youzan Furniture’s STB-LN-1800-STORAGE storage platform bed blends Nordic-style functional design with streamlined light natural wood aesthetics, suited for spaces prioritizing uncluttered, warm visual appeal. Its cohesive silhouette features a full-height headboard topped with a continuous recessed shelf, a low-profile footboard with integrated open slots, and tapered solid wood legs, with all exposed corners and edges rounded to soften lines and reduce impact risk. The frame is finished in a low-VOC matte clear lacquer that highlights natural wood grain, creating a gentle, unobtrusive presence in interior layouts. When placed, the bed requires sufficient clearance from the wall to enable full access to the headboard shelf, and pairs seamlessly with matching open-shelf nightstands for a coordinated look. The bed’s construction uses durable, thoughtfully selected materials: the headboard panel is crafted from solid rubberwood, while side and foot rails use thicker solid rubberwood with a matching finish. A full-length solid hardwood center rail provides robust structural reinforcement, paired with smooth-sanded solid pine plywood support slats that eliminate the need for a box spring. Tapered solid wood legs are fitted with non-marking felt pads to protect floor surfaces, and zinc-plated steel bolts, dowels, and cam locks create secure, stable joints across the frame. Integrated storage features support organized, clutter-free sleep spaces: the full-width headboard shelf holds bedside essentials such as books, alarm clocks, and small decor items, while two open recessed slots in the footboard accommodate vertical storage of books and magazines. The slat support system is engineered to work with memory foam, latex, or spring mattresses of the compatible thickness, delivering reliable static load capacity for regular adult use, with a documented expected service life for regular residential use. This model is ideally suited for residential master or guest bedrooms, fitting seamlessly into Scandinavian, modern minimalist, and Japanese-inspired interior schemes, and serves users seeking understated style paired with accessible open bedside storage. For procurement, buyers should note the product ships in flat-pack form, with all required hardware and an assembly tool included for two-person assembly. Recommended warranty coverage includes 10 years for the frame, 5 years for hardware components, and 2 years for any upholstered elements. Teams should account for the packaged weight and volume when planning delivery and staging, and confirm on-site space allows for the required wall clearance to make full use of the headboard storage feature.

Light Natural Wood Storage Platform Bed with Headboard Shelf and Footboard Book Slots Specifications
