PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	2007 × 2191 × 1120 mm
Compatible mattress size	1800 x 2000 mm
Headboard height	1120 mm
Frame side rail height	350 mm
Under-bed drawer internal dimensions	1020 x 580 x 150 mm
Slat dimensions	12 mm thick, 70 mm wide, spaced 75 mm apart
Sleep surface height	350 mm
Under-bed clearance at foot end	120 mm
Number of slats per bed base	28
Center support beam length	2000 mm
Side Rail Thickness	40 mm
Slat Spacing	80 mm
Center Support Leg Count	Recommended 6legs

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Total static load capacity	500 kg
Net weight	92 kg
Upholstery abrasion resistance	50000 cycles
Upholstery lightfastness rating	6
Recommended mattress thickness	300 mm
Bed Static Load Reference	400 kg
Per-slat Load Reference	60 kg
Recommended Procurement Warranty	Frame 10 years; hardware 5 years; upholstery 2 years

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Bed frame core	18 mm thick engineered particleboard and plywood
Headboard padding	30 mm thick 35 kg/m³ high-density polyurethane foam
Headboard upholstery	100% woven polyester fabric with matte light grey finish
Mattress support slats	12 mm thick multi-layer glued birch plywood slats
Drawer construction	12 mm thick particleboard drawer boxes with fabric-lined interiors
Drawer hardware	Nylon roller drawer slides with integrated stop mechanisms
Support legs	Solid engineered wood block legs finished to match frame color
Hardware connectors	Zinc-plated steel cam lock and bolt connectors for flat-pack assembly
Seam stitching	6 mm stitch pitch matching upholstery thread color
Slat Thickness	15 mm bent plywood or solid timber
Primary Connector Specification	Reference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color Count	Recommended 6timber/upholstery options

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Storage drawer operation	4 full-extension pull-out drawers (2 per long side) on roller slides
Mattress support	Slatted base with no box spring required for mattress installation
Headboard design	3-panel padded fixed headboard with wall-aligned mounting
Drawer safety feature	Integrated drawer stops to prevent full pull-out during access
Assembly structure	Flat-pack knockdown design requiring on-site assembly with included hardware
Ventilation function	Slatted base provides consistent airflow under mattress to prevent moisture buildup
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight	130 kg/set
Reference Packaging Volume	0.9 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Primary application space	Residential master bedrooms with light contemporary interior design
Target user group	Adult homeowners seeking hidden under-bed storage without sacrificing aesthetic finish
Recommended pairing	Matching 2-drawer nightstands positioned symmetrically on either side of headboard
Installation note	Position against flat wall with 600 mm side clearance for full drawer extension
Suitability note	Ideal for small to medium bedrooms to replace separate dressers with under-bed storage

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1725:2012	Domestic furniture - Beds and mattresses - Safety requirements and test methods
EN 1021-1:2014	Upholstered furniture ignitability resistance test for cigarette ignition source

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to frame strength and stability
GB 18584-2001	Limit of formaldehyde emission for wooden furniture, required for indoor air quality compliance
GB/T 1952.2-2011	Test methods for furniture stability and strength applicable to bed frames

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable to frame strength and stability；
2. GB 18584-2001：Limit of formaldehyde emission for wooden furniture, required for indoor air quality compliance；
3. GB/T 1952.2-2011：Test methods for furniture stability and strength applicable to bed frames；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · SB-Q-3PHD-4DR-01

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · SB-Q-3PHD-4DR-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · SB-Q-3PHD-4DR-01打开导出工具

页面快速操作

发布采购询价

产品描述

This light grey upholstered storage bed (model SB-Q-3PHD-4DR-01, unbranded) delivers a streamlined low-profile silhouette anchored by a fixed 3-panel padded headboard, aligned flush to the wall for a polished, tailored look. The frame sits on color-matched solid engineered wood block legs, with a consistent sleep surface height aligned to the side rail height for a clean, unbroken visual line, and matte light grey woven polyester upholstery stitched with color-matched thread for a seamless, soft contemporary finish. The bed’s core structure uses an 18 mm thick engineered particleboard and plywood frame, secured with zinc-plated steel cam lock and bolt connectors built to support up to 5 controlled assembly cycles for repeated setup or relocation. The fixed headboard features 30 mm thick high-density polyurethane foam padding wrapped in 100% woven polyester fabric tested for 50000 abrasion cycles and a lightfastness rating of 6 for long-term color retention. Mattress support comes from 12 mm thick multi-layer glued birch plywood slats, sized 70 mm wide with 75 mm gaps between them, eliminating the need for a separate box spring. Four full-extension pull-out drawers (two positioned on each long side of the frame) are constructed from 12 mm thick particleboard with fabric-lined interiors, operating on smooth nylon roller slides fitted with integrated stop mechanisms to prevent accidental full pull-out during use. The slatted base design enables consistent airflow under the mattress to reduce moisture buildup, and the frame supports a total static load of 500 kg, with a 400 kg static load reference for the bed frame and 60 kg per-slat load reference. This bed is designed for residential master bedrooms with light contemporary interiors, and is particularly well-suited for small to medium spaces where it can replace standalone dressers by integrating hidden storage without disrupting room aesthetics. It pairs best with matching 2-drawer nightstands placed symmetrically on either side of the headboard. Installation requires positioning against a flat wall with 600 mm of side clearance to allow full drawer extension, and the product is delivered as a flat-pack set requiring 40 minutes of on-site assembly with all included hardware. Procurement teams should note the compatible 1800 x 2000 mm mattress size and 300 mm recommended mattress thickness, packaged as two cartons per set with a total gross weight of 130 kg and total packaging volume of 0.9 m³ for logistics planning.

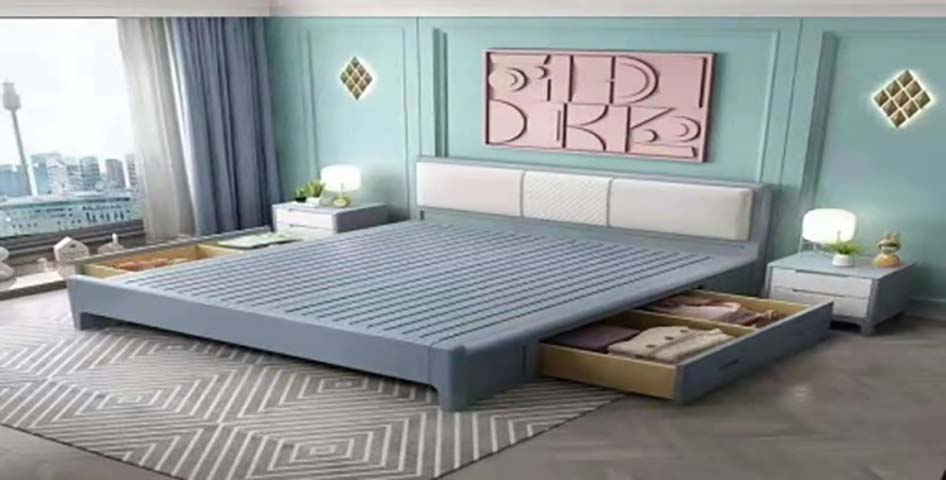

Light Grey Upholstered Storage Bed with 4 Pull-Out Side Drawers Specifications
