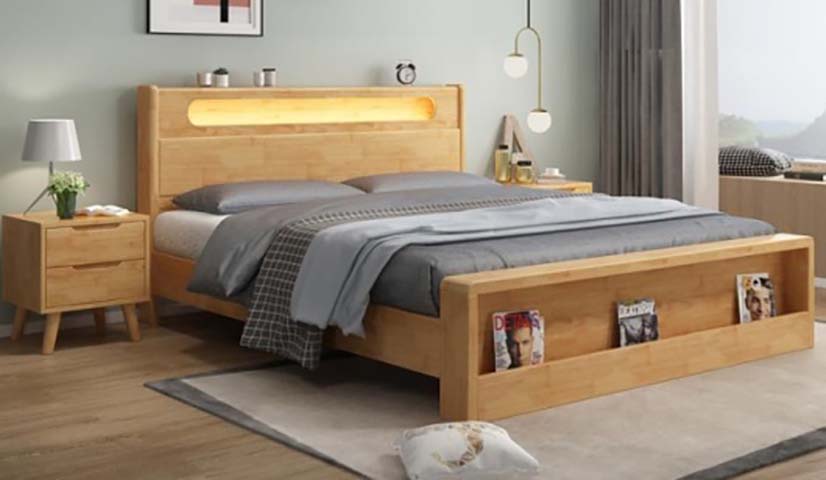

商品供应商Natural Wood Storage Platform Bed with LED Headboard and Footboard Book Slots，Solid oak with natural light matte clear finish
可联系供应商获取生产周期与报价。
PRODUCT MODULE 01 / 06
基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源：工厂资料结构化字段，最终以实测值为准
| 产品外部尺寸（宽 × 深 × 高） | 1628 × 2365 × 1092 mm | |
|---|---|---|
| Compatible mattress size | 1500 x 2000 mm | |
| Sleep surface height from floor | 325 mm | |
| Headboard total height | 1092 mm | |
| Headboard top display shelf depth | 120 mm | |
| Footboard total height | 430 mm | |
| Footboard open storage cubby internal height | 280 mm | |
| Under-bed clearance | 155 mm | |
| Recommended mattress thickness | 356 mm | |
| Headboard lean angle | 96 degrees | |
| Footboard storage compartment count | 3 units | |
| Bed leg cross-section | 60 x 60 mm | |
| Side Rail Thickness | 40 mm | |
| Slat Spacing | 80 mm | |
| Center Support Leg Count | Recommended 6legs |
PRODUCT MODULE 02 / 06
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源：产品性能数据，采购前请核对具体测试口径
| Total static load capacity | 454 kg | |
|---|---|---|
| Slat support weight rating | 180 kg per slat | |
| LED strip rated lifespan | 20000 hours | |
| Noise level during use | <20 dB | |
| Maximum user weight per side | 227 kg | |
| Finish abrasion resistance | Grade 2 (20000 rub cycles) | |
| Assembly time for two adults | 120 minutes | |
| Net product weight | 71 kg | |
| Bed Static Load Reference | 400 kg | |
| Per-slat Load Reference | 60 kg |
PRODUCT MODULE 03 / 06
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源：以工厂材质清单与验货报告为准
| Bed frame main structure | Solid oak with natural light matte clear finish | |
|---|---|---|
| Support slats | Solid hardwood poplar, 70mm wide, 18mm thick | |
| Headboard panel | Joined solid oak planks, 25mm thick | |
| Footboard storage frame | Solid oak frame with 20mm thick side panels | |
| LED light channel | Recessed frosted polycarbonate diffuser | |
| Connecting hardware | Zinc-plated steel bolts and barrel nuts | |
| Bed legs | Solid tapered oak legs, 200mm tall | |
| Surface coating | Low-VOC matte water-based wood finish | |
| Center support beam | 40x80mm solid wood beam with 3 support legs | |
| Slat Thickness | 15 mm bent plywood or solid timber | |
| Primary Connector Specification | Reference M8-M10 bolts with at least 2 fixing points per corner | |
| Reference Finish / Color Count | Recommended 6timber/upholstery options |
PRODUCT MODULE 04 / 06
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源：功能配置参数，以供应商正式规格为准
| Integrated LED lighting | Warm white LED strip recessed in headboard with touch dimming control | |
|---|---|---|
| Footboard open storage | Three horizontal front-facing cubbies for books, magazines and small items | |
| Slat support system | Closely spaced hardwood slats with center support beam | |
| Under-bed clearance | 155mm open space below frame | |
| Joinery system | Combination of mortise-and-tenon corner joints and bolted hardware | |
| Cable management | Pre-drilled notch at headboard rear for charging cables | |
| Edge design | Rounded polished edges on all frame corners | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
PRODUCT MODULE 05 / 06
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源：外贸报价与装柜测算参考
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2300× 900× 450 mm/carton in 4 cartons | |
| Reference Packaged Gross Weight | 130 kg/set | |
| Reference Packaging Volume | 0.9 m³/set |
PRODUCT MODULE 06 / 06
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源：依据产品结构与品类整理的推荐应用场景
| Residential master bedroom | Fits queen size bedroom layouts for adult couples, paired with matching 2-drawer nightstands | |
|---|---|---|
| Guest bedroom | Provides durable, stylish sleeping surface for occasional guest use | |
| Small apartment bedroom | Low-profile design and integrated storage maximize usable floor space | |
| Nordic/minimalist interior schemes | Natural light wood finish and clean lines match Scandinavian and modern casual decor styles | |
| Teenager bedroom | Rounded edge design and open book storage suit teenage users |
STANDARD S1
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| EN 1725:1998 | Domestic furniture - Beds and mattresses - Safety requirements | |
|---|---|---|
| EN 12520:2015 | Furniture - Strength, durability and safety |
STANDARD S3
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wooden furniture | |
| GB/T 24821-2009 | General technical requirements for beds for household use |
招标文件标准化描述文本
本产品须满足以下技术参数要求： 1. GB/T 3324-2017：General technical requirements for wooden furniture； 2. GB 18584-2001：Limit of harmful substances in wooden furniture； 3. GB/T 24821-2009：General technical requirements for beds for household use； 最终交付参数、检测报告和验收标准以双方采购合同为准。
