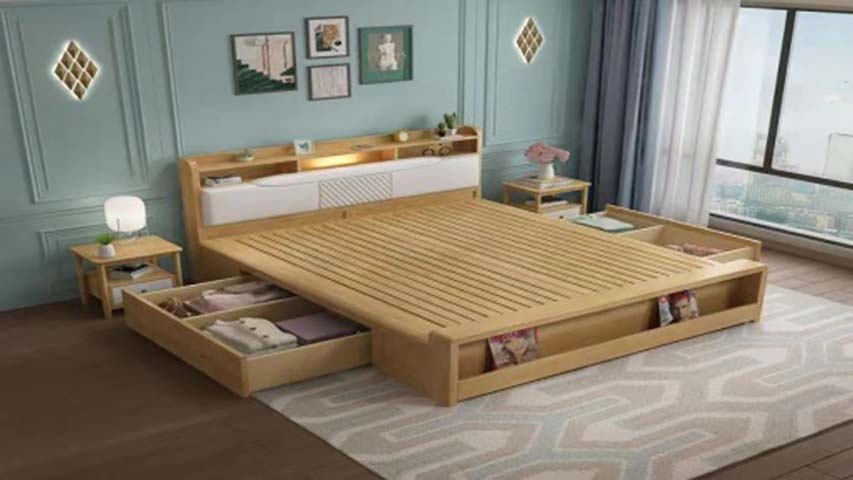

Light Wood Storage Platform Bed with LED Shelf Headboard, Drawers and Side Cubbies Specifications

STB-LW-LED-QUEEN-01

代码:X10KV4V1
获取供应商报价
2026-09-15 11:43人气: 1
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

STB-LW-LED-QUEEN-01

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions2200 x 1626 x 1003 mm
Headboard total height1003 mm
Sleeping surface height406 mm
Recommended mattress size2030 x 1520 x 203 mm
Under-bed drawer internal dimensions762 x 508 x 127 mm
Open side/foot cubby dimensions305 x 254 x 254 mm
Headboard upper shelf depth200 mm
Upholstered headboard panel height400 mm
Slat thickness25 mm
Slat spacing70 mm
Number of support slats28
Center support leg count4
Under-bed storage clearance height286 mm
Matching nightstand dimensions500 x 400 x 500 mm
Headboard shelf compartment count4
Side Rail Thickness40 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total static load capacity400 kg
Product net weight64 kg
LED strip operational lifespan30000 hours
Drawer slide cycle rating10000 cycles
Recommended mattress thickness203 mm
Structural warranty period2 years
Bed Static Load Reference400 kg
Per-slat Load Reference60 kg
Recommended Procurement WarrantyFrame 10 years; hardware 5 years; upholstery 2 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Bed frame main structureSolid pine wood with natural light oak finish
Side panels and drawer boxesCARB P2 grade MDF with wood veneer laminate
Headboard upholstery panelLinen-look polyester fabric over 30mm high-density foam
Mattress support slatsSolid birch wood slats with sanded smooth finish
Central support beam40mm thick solid wood beam with metal reinforcement brackets
Drawer slides and hardwareCold-rolled steel full-extension roller slides with zinc plating
LED lighting stripLow-voltage 12V SMD LED strip with warm white 3000K output
Support legsSolid wood block legs with anti-slip floor protection pads
Drawer faces and cubby trimSolid wood edge banding with rounded safety corners
Upholstery seam stitch pitch3 stitches per 10mm
Connecting hardwareZinc-plated steel cam bolts and barrel nuts
Foot protection pads5mm thick non-marking rubber pads
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Storage system layout2 side pull-out rolling drawers + 4 open side/foot cubbies + upper headboard shelf
Headboard backrest functionUpholstered padded panel provides lumbar support for seated reading or screen use
LED accent lighting operationRecessed strip with touch-sensitive switch on headboard side, warm white ambient output
Mattress support systemSlatted platform eliminates requirement for a separate box spring
Drawer operationFull-extension rolling drawers with integrated stop mechanisms to prevent accidental pull-out
Assembly methodFlat-pack knock-down assembly with included hex key and hardware kit
Open cubby accessSide and foot cubbies are accessible without moving the mattress
Floor protection designAnti-slip rubber pads on all support legs and drawer bases
Anti-tip designLow center of gravity with wide base footprint for stable freestanding installation
Ventilation functionSpaced slat design allows full air circulation under the mattress
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Total shipping gross weight75 kg
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight130 kg/set
Reference Packaging Volume0.9 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Primary residential applicationMaster bedrooms and guest bedrooms requiring hidden storage to reduce clutter
Space suitabilitySmall to medium sized bedrooms where floor space is limited
Style compatibilityScandinavian, modern minimalist and light wood tone interior design schemes
User suitabilityAdult users and couples seeking multifunctional bedroom furniture
Recommended paired configurationMatching compact wooden nightstands and a low-pile area rug as shown in product visuals
Use case for storage zonesDrawers for folded clothing and linens, cubbies for frequently accessed reading material, headboard shelf for decor and devices
Installation environment requirementLevel indoor hard flooring or low-pile carpet with sufficient side clearance for drawer operation
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 747-1:2012+A1:2015Furniture - Beds and mattresses - Safety requirements for domestic beds, applicable for structural safety verification
EN 13722:2004Furniture - Storage units - Strength and durability requirements, applicable for drawer and shelf load testing
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable for wood frame structural integrity testing
GB 18580-2017Formaldehyde emission limits for wood-based panels, applicable for MDF and engineered wood component compliance
GB/T 35607-2017Performance requirements for furniture hardware, applicable for drawer slides and connecting fastener durability
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for wood frame structural integrity testing;
2. GB 18580-2017:Formaldehyde emission limits for wood-based panels, applicable for MDF and engineered wood component compliance;
3. GB/T 35607-2017:Performance requirements for furniture hardware, applicable for drawer slides and connecting fastener durability;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · STB-LW-LED-QUEEN-01

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · STB-LW-LED-QUEEN-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · STB-LW-LED-QUEEN-01打开导出工具

页面快速操作

发布采购询价

产品描述

This unbranded storage platform bed, model STB-LW-LED-QUEEN-01, features a streamlined modern silhouette rooted in light wood aesthetics, ideal for cohesive Scandinavian, modern minimalist, and light wood tone interior schemes. Its balanced layout integrates a central sleeping platform, an upholstered headboard with upper display shelf, lower under-bed storage, and open perimeter cubbies, creating a multifunctional focal point without visual bulk. The headboard stands 1003 mm tall, with a 400 mm upholstered panel positioned to align with seated posture, topped by a 200 mm deep shelf for easy access to personal items. The sleeping surface sits 406 mm high, sized to fit a 203 mm thick queen mattress measuring 2030 x 1520 mm, with no separate box spring required thanks to the solid slat support base. Construction pairs a solid pine frame finished in natural light oak with CARB P2 grade MDF panels wrapped in wood veneer for side structures and drawer boxes, edged with solid wood trim finished with rounded safety corners. The headboard’s upholstered section uses linen-look polyester fabric over 30 mm high-density foam for soft, supportive cushioning. Mattress support comes from sanded smooth solid birch slats, reinforced by a 40 mm thick solid wood central beam fitted with metal reinforcement brackets, supporting a total static load of 400 kg. Drawers operate on cold-rolled steel full-extension roller slides with zinc plating, rated for 10000 open-close cycles and fitted with integrated stop mechanisms to prevent accidental pull-out; solid wood block legs with anti-slip floor pads protect flooring surfaces, while a recessed 12V warm white 3000K LED strip, operated via a touch-sensitive switch on the headboard side, delivers 30000 hours of ambient accent lighting. Functional design prioritizes space efficiency: two pull-out rolling under-bed drawers (with 762 x 508 x 127 mm internal space) hold folded clothing and linens, while four open side and foot cubbies (305 x 254 x 254 mm) hold frequently accessed reading materials, accessible without shifting the mattress. The upper headboard shelf stores decor and personal devices, and the padded headboard panel delivers lumbar support for seated reading or screen use. This bed is best suited for small to medium sized master or guest bedrooms where floor space is limited and clutter reduction is a priority, serving adult users and couples seeking multifunctional furnishing solutions; it pairs seamlessly with matching compact wooden nightstands and low-pile area rugs for a finished look. Procurement teams and buyers should note the product ships as a flat-pack set across 2 cartons for knock-down assembly, with an included hex key and hardware kit supporting a 40 minute per set assembly time. The unit carries a 2 year structural warranty, has a net weight of 64 kg, and total shipping gross weight of 75 kg, with packaged dimensions supporting easy transport to multi-unit residential or individual residential installations; the drawer stop mechanisms, rounded safety corners, and low-voltage LED design align with standard residential use requirements.
