Light Gray Upholstered Platform Bed with 3-Segment Padded Headboard Specifications

UPB-LG-K0866

代码:XQRBYAV1
获取供应商报价
2026-09-15 11:56人气: 1
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

UPB-LG-K0866

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions2090 x 2220 x 1280 mm
Headboard width2090 mm
Headboard height1100 mm
Sleeping surface height (top of slats)330 mm
Mattress fit size1930 x 2030 mm
Underbed clearance150 mm
Side rail thickness35 mm
Headboard cushion thickness120 mm
Support foot height150 mm
Recommended mattress thickness400 mm
Slat Spacing80 mm
Center Support Leg CountRecommended 6legs
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total static weight capacity820 kg
Product net weight82 kg
Slat count15 pieces
Single slat static load55 kg
Center support leg count3 pieces
Recommended mattress weight70 kg
Assembly time60 minutes
Bed Static Load Reference400 kg
Per-slat Load Reference60 kg
Recommended Procurement WarrantyFrame 10 years; hardware 5 years; upholstery 2 years
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Frame core18mm thick CARB P2 grade engineered particleboard
Headboard upholstery300gsm matte polyester linen-look fabric
Headboard padding35kg/m³ high resilience polyurethane foam
Support slats12mm thick poplar plywood slats
Support feetSolid rubberwood angled block feet
Hardware connectorsZinc-plated steel bolts and barrel nuts
Headboard accent trim5mm wide brushed gold-toned metal inlay
Slat buffersEVA foam adhesive strips
Slat Thickness15 mm bent plywood or solid timber
Primary Connector SpecificationReference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color CountRecommended 6timber/upholstery options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Mattress supportWood slat platform system
Headboard supportThree separate padded cushion segments
Mattress retention50mm high integrated side rail lip
Underbed access150mm floor clearance
Knock-down assemblyFlat pack design with pre-drilled holes
Weight distributionCentral support beam with 3 legs
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight130 kg/set
Reference Packaging Volume0.9 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Master bedroom useFits 3.6m wide or larger residential master bedrooms as primary sleeping furniture
Modern interior stylingMatches light gray, neutral or contemporary minimalist bedroom design schemes
Residential applicationSuitable for private homes, serviced apartments and boutique hotel guest rooms
Pairing recommendationCoordinates with matching light gray 2-drawer nightstands for cohesive bedroom sets
User groupIdeal for adult users seeking low-profile, supportive modern platform bed design
Low maintenance designSmooth lacquered frame and stain-resistant fabric allow easy daily cleaning
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 747-1:2012+A1:2015Furniture - Beds and mattresses - Safety requirements for domestic beds
EN 1725:1998Domestic furniture - Beds and mattresses - Safety requirements and test methods
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable for frame safety and dimensional accuracy
GB 18584-2001Indoor decorating and refurbishing materials - limit of harmful substances of wooden furniture
GB/T 19844-2018Wooden beds general technical requirements, applicable for structural strength and stability
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for frame safety and dimensional accuracy;
2. GB 18584-2001:Indoor decorating and refurbishing materials - limit of harmful substances of wooden furniture;
3. GB/T 19844-2018:Wooden beds general technical requirements, applicable for structural strength and stability;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · UPB-LG-K0866

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · UPB-LG-K0866

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · UPB-LG-K0866打开导出工具

页面快速操作

发布采购询价

产品描述

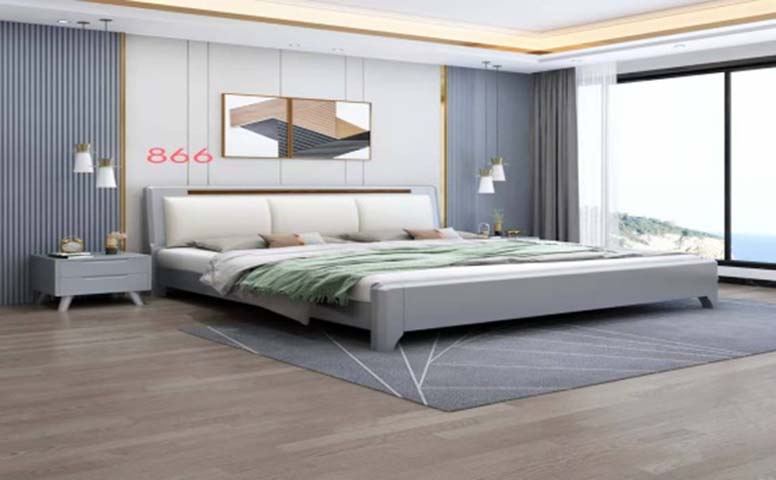

The Light Gray Upholstered Platform Bed with 3-Segment Padded Headboard (model UPB-LG-K0866, unbranded) features a sleek, low-profile modern minimalist silhouette defined by clean lines and understated decorative detail. The wide headboard spans the full width of the frame, structured as three distinct padded cushion segments finished with a thin brushed gold-toned metal accent inlay that adds subtle refined contrast to the soft upholstery. The frame sits on angled solid rubberwood block feet, creating an open, uncluttered visual profile that complements pared-back interior aesthetics without overwhelming surrounding decor. The bed is constructed for long-term residential use, with an 18mm thick CARB P2 grade engineered particleboard core at its frame, upholstered in smooth light gray finishes. The headboard is covered in 300gsm matte polyester linen-look fabric in a soft off-white tone, padded with 35kg/m³ high resilience polyurethane foam for cushioned support when sitting upright. The platform support system uses 15 poplar plywood slats, reinforced by a central support beam fitted with 3 additional support legs, connected with zinc-plated steel bolts and barrel nuts for structural stability. EVA foam adhesive strips line slat mounts to reduce movement noise, while the frame’s smooth lacquered surface and stain-resistant upholstery support low-effort daily maintenance. Functional design elements eliminate common frustrations with platform bed use: a 50mm high integrated side rail lip holds mattresses securely in place to prevent shifting, 150mm of underbed clearance allows access for limited storage or routine floor cleaning, and a flat pack knock-down design with pre-drilled holes streamlines assembly. The wooden slat platform delivers stable, even mattress support without requiring a separate box spring, with a total static weight capacity of 820kg to accommodate regular adult use, suitable for mattresses up to 70kg matching the 1930 x 2030 mm fit size. This bed is designed for use as primary sleeping furniture in 3.6m wide or larger residential master bedrooms, and also fits serviced apartments and boutique hotel guest rooms with contemporary neutral or light gray design schemes. It pairs seamlessly with matching light gray 2-drawer nightstands for cohesive bedroom sets, ideal for adults seeking streamlined, supportive low-profile sleeping furniture. When procuring, note the product ships across multiple cartons with a total packaged gross weight of 130kg, requires assembly on site, and main structural joints support up to 5 controlled assembly cycles for repeated moves or reconfiguration.
