Walnut Finish Upholstered Wooden Platform Bed Specifications

PLT-WAL-UPH-1800-DB

代码:Y0U27DV1
获取供应商报价
2026-09-15 12:18人气: 1
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

PLT-WAL-UPH-1800-DB

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall outer dimensions1890 x 2220 x 1100 mm
Compatible mattress size1800 x 2000 mm
Headboard overall height1100 mm
Headboard panel thickness100 mm
Footboard height from floor350 mm
Sleeping surface height (with mattress)480 mm
Under-bed clearance from floor150 mm
Wood frame rail thickness30 mm
Bed leg cross-section60 x 60 mm
Individual slat dimensions70 x 15 mm
Slat spacing between supports75 mm
Total number of support slats18
Side Rail Thickness40 mm
Slat Spacing80 mm
Center Support Leg CountRecommended 6legs
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total static bed frame load capacity350 kg
Center support beam count1
Recommended maximum mattress thickness230 mm
Bed frame net weight85 kg
Upholstery fabric abrasion resistance30000 double rubs
Headboard padding foam density45 kg/m³
Product warranty period10 years
Bed frame noise rating≤30 dB
Bed Static Load Reference400 kg
Per-slat Load Reference60 kg
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Main bed frame materialWalnut-finish solid wood and E1 grade engineered wood
Headboard side upholsteryCream linen-blend woven fabric
Headboard center accent panelWarm yellow woven geometric pattern fabric
Upholstery padding core45 kg/m³ high-density polyurethane rebound foam
Support slat material15mm thick solid pine wood slats
Bed leg materialSolid walnut-finish hardwood legs
Surface finishMulti-coat low-VOC matte polyurethane paint
Connection hardwareElectroplated steel bolts and barrel nuts
Footboard panel material25mm thick solid wood frame with veneered center panel
Slat Thickness15 mm bent plywood or solid timber
Primary Connector SpecificationReference M8-M10 bolts with at least 2 fixing points per corner
Reference Finish / Color CountRecommended 6timber/upholstery options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Support systemFixed solid wood slat platform, no box spring required
Assembly structureKnock-down flat-pack design with bolted rail connections
Headboard functionPadded fixed panel for seated back support while reading in bed
Under-bed access150mm floor clearance allows robot vacuum cleaning underneath
Set compatibilityDesigned to pair with matching two-drawer walnut nightstands
Mattress retentionRecessed frame ledge prevents mattress sliding off platform
Stability featureFour corner legs plus central support rail eliminate frame wobble
Surface protectionSmooth rounded corner edges on footboard and rails prevent impact injury
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package Dimensions2300× 900× 450 mm/carton in 4 cartons
Reference Packaged Gross Weight130 kg/set
Reference Packaging Volume0.9 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Primary application spaceResidential master bedrooms
Matching furniture setPairs with coordinating walnut nightstands and dressers for cohesive bedroom decor
Design style fitNew Chinese style modern interiors, walnut wood tone schemes
Target user groupAdult homeowners, hotel guest room furnishing
Recommended placementPositioned against a wall with headboard centered
Maintenance considerationWipe-clean fabric and scratch-resistant wood finish suitable for daily residential use
Mattress compatibilityFits standard memory foam, latex, spring mattresses up to 230mm thick
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 1725:1998Domestic furniture - Beds and mattresses - Safety requirements and test methods
EN 71-3:2019Safety of toys - Migration of certain elements, applicable for paint finish safety
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable for wood frame structural testing
GB 18584-2001Formaldehyde emission limit for interior wooden furniture, mandatory for residential use
GB/T 26706-2011Soft furniture sofa/bed upholstered furniture general safety requirements
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for wood frame structural testing;
2. GB 18584-2001:Formaldehyde emission limit for interior wooden furniture, mandatory for residential use;
3. GB/T 26706-2011:Soft furniture sofa/bed upholstered furniture general safety requirements;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · PLT-WAL-UPH-1800-DB

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · PLT-WAL-UPH-1800-DB

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · PLT-WAL-UPH-1800-DB打开导出工具

页面快速操作

发布采购询价

产品描述

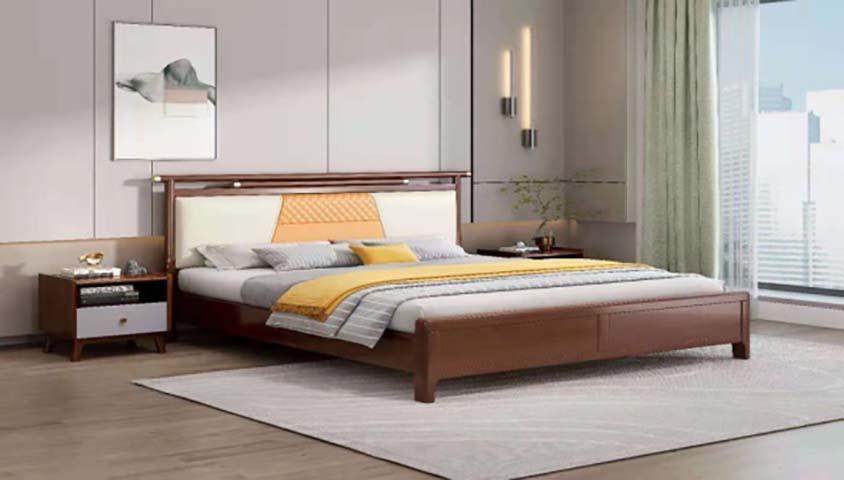

The Walnut Finish Upholstered Wooden Platform Bed delivers a refined, cohesive seating and sleeping solution tailored for warm, modern interior schemes. Visually, it blends a low-profile walnut wood frame with a structured upholstered headboard: the headboard sides are covered in soft cream linen-blend woven fabric, while its central accent panel features warm yellow woven geometric pattern fabric, creating subtle textural contrast aligned with New Chinese style modern aesthetics. The matching low footboard sits at a balanced height to preserve open sightlines in the room, while solid walnut-finish hardwood legs anchor the frame for a grounded, streamlined silhouette. For layout, it is designed to be positioned against a wall with the headboard centered, pairing seamlessly with coordinating walnut two-drawer nightstands and dressers to create a unified bedroom look. The frame is constructed from walnut-finish solid wood paired with E1 grade engineered wood, finished with multi-coat low-VOC matte polyurethane paint for a smooth, scratch-resistant surface. The headboard’s 100 mm thick panel is padded with 45 kg/m³ high-density polyurethane rebound foam for soft, supportive cushioning, and its upholstery carries a 30000 double rub abrasion rating for lasting durability. The support system uses 15 mm thick solid pine wood slats secured with electroplated steel bolts and barrel nuts, reinforced by a single central support beam and four corner legs to eliminate wobble, with a total static load capacity of 350 kg. The 25 mm thick footboard combines a solid wood frame with a veneered center panel for consistent visual flow. Functionally, the fixed slat platform eliminates the need for a box spring, while a recessed frame ledge prevents mattress slippage; the design supports mattresses sized 1800 x 2000 mm, with a maximum recommended thickness of 230 mm, creating a 480 mm sleeping surface height when a mattress is in place. The padded headboard provides stable back support for seated reading, and 150 mm of under-bed clearance allows unobstructed robot vacuum access below the frame. Delivered as a knock-down flat-pack set across 2 cartons with a total packaged gross weight of 130 kg, the bed requires 40 minutes of assembly per set. It is ideally suited for residential master bedrooms and hotel guest rooms, serving adult homeowners seeking durable, low-maintenance furnishings. The wipe-clean fabric upholstery and scratch-resistant wood finish simplify daily care, and the product is backed by a 10-year warranty. Procurement teams should note the 85 kg net weight of the assembled frame, plan for appropriate receiving and assembly staffing, and account for the 0.9 m³ total packaging volume for storage and shipping coordination.
