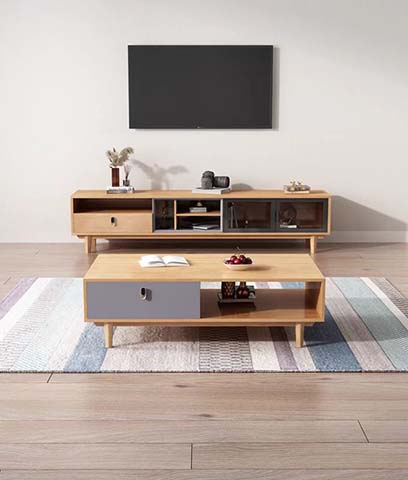

Name: Low Profile Natural Oak Mixed Storage TV Media Console
Brand: Zhenxi Muye
SKU: 966KBW

纠错时间

修改字段

原参数

修改后参数

说明 / 状态

暂无参数纠错记录，发现错误可点击行末旗标提交

PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	1800 × 410 × 420 mm
Tapered leg height	120 mm
Under-unit floor clearance	120 mm
Left drawer internal dimensions	520 x 360 x 110 mm
Center divided open shelf dimensions	560 x 380 x 260 mm
Right glass-door cabinet internal dimensions	600 x 380 x 260 mm
Top panel thickness	25 mm
Back panel thickness	9 mm
Cable opening diameter	60 mm
Carcass Panel Thickness	25 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Top panel maximum static load	25 kg
Drawer maximum static load	10 kg
Adjustable shelf maximum static load	15 kg
Unit net weight	35 kg
Maximum supported TV size	75 in
Hinge and slide cycle rating	50000 cycles
Door and drawer warranty period	5 years
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Frame and carcass	E1 grade engineered wood with oak veneer
Surface finish	Matte clear lacquer, low-sheen natural oak tone
Right cabinet doors	Dark grey metal framed tinted tempered glass
Support legs	Solid natural oak tapered short legs
Left drawer front	Solid oak-veneer panel with recessed metal pull
Back panel	Multi-layer plywood with pre-cut cable openings
Internal shelves	18 mm thick engineered wood with matching oak finish
Hardware components	Cold-rolled steel drawer slides, concealed cabinet hinges
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Left storage zone	1 upper open shelf above 1 full-width soft-close drawer for remote and accessory storage
Center storage zone	Divided two-tier open shelving for set-top boxes, routers and media players
Right storage zone	Two hinged dark-framed tinted glass doors enclosing shelving for display and concealed storage
Cable management	Pre-drilled rear cable openings in storage bays for neat AV wiring routing
Internal shelf adjustability	3-position adjustable shelf heights inside glass cabinet sections
Floor protection	Felt pads fitted to leg bases to prevent hard floor scratching
Cable / Vent Opening Reference	80 mm diameter; recommend 4rear cable/vent openings

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Residential living room placement	Positioned against wall under wall-mounted TVs 75inches in size
Small apartment fit	Low 420mm height and slim 410mm depth fits compact urban living spaces
Media and display use	Mixed storage supports AV components, media accessories and decorative display items
Coordinated set use	Matching low coffee table available for unified Scandinavian-style living room furnishing
Hard floor compatibility	Felt leg pads prevent scratching on wood, tile and laminate flooring

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

Formaldehyde emission classification	EN 312:2010
Furniture surface durability	EN 12720:2013

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

Formaldehyde emission limit	GB 18580
Tempered glass safety	GB 15763.2

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. Formaldehyde emission limit：GB 18580；
2. Tempered glass safety：GB 15763.2；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · TVC-LG18042

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · TVC-LG18042

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · TVC-LG18042打开导出工具

页面快速操作

发布采购询价

产品描述

The Low Profile Natural Oak Mixed Storage TV Media Console from Zhenxi Muye (model TVC-LG18042) is a freestanding, Nordic-modern television stand designed to balance functional media storage with understated, streamlined visual appeal. Its low-slung, linear form sits on solid natural oak tapered short legs, creating an open, unobtrusive silhouette that aligns with clean Scandinavian design principles. The front elevation mixes three distinct storage zones for visual and practical variety: a left section pairing a compact upper open shelf with a full-width drawer, a center section of open divided shelving, and a right section framed by dark grey metal-framed tinted tempered glass doors, unified by a consistent matte clear lacquer finish in a low-sheen natural oak tone. Built with an E1 grade engineered wood frame and carcass finished with oak veneer, the console features a thick top panel, multi-layer plywood back panel with pre-cut cable openings, 2mm edge banding, and cold-rolled steel drawer slides paired with concealed cabinet hinges. Leg bases are fitted with felt pads to protect hard flooring surfaces, while hardware is rated for long-term regular use, with a 5-year warranty covering doors and drawers. Storage is configured to support full media setups: the left soft-close drawer holds remotes and small accessories, the center two-tier divided open shelves accommodate set-top boxes, routers and media players, and the right glass-enclosed cabinet includes 3-position adjustable shelves for both displayed items and concealed storage. Pre-drilled rear cable openings across storage bays enable neat routing of AV wiring, and the top panel supports televisions up to 75 inches. This console is well suited for residential living rooms, particularly compact urban apartments where its slim depth and low height fit efficiently against walls beneath wall-mounted TVs. It works across wood, tile and laminate hard flooring, and pairs with a coordinating low coffee table for a unified furnishing scheme. Procurement teams should note the unit ships across multiple cartons, with a reference assembly time of 40 minutes per set, and plan for appropriate weight handling during delivery and installation, given the packaged gross weight for a full set.

Low Profile Natural Oak Mixed Storage TV Media Console Specifications
