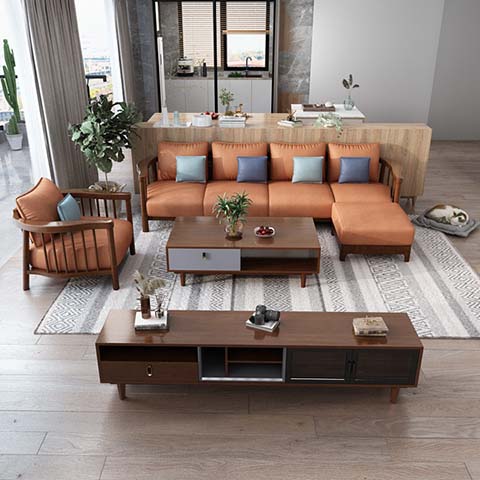

商品供应商Mid-Century Modern Low-Profile Walnut-Grey TV Media Console,Fabric
可联系供应商获取生产周期与报价。
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录,发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions | 2000 x 400 x 450 mm | |
|---|---|---|
| Left drawer compartment dimensions | 600 x 350 x 120 mm | |
| Central open shelf overall dimensions | 600 x 380 x 300 mm | |
| Right sliding-door cabinet internal dimensions | 700 x 360 x 300 mm | |
| Floor clearance under cabinet | 114 mm | |
| Top panel thickness | 25 mm | |
| Carcass side panel thickness | 18 mm | |
| Back panel thickness | 9 mm | |
| Adjustable shelf thickness (cabinet) | 15 mm | |
| Tapered leg height | 114 mm | |
| Cable grommet diameter | 60 mm | |
| Drawer front panel thickness | 18 mm | |
| Carcass Panel Thickness | 25 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Top surface static load capacity | 57 kg | |
|---|---|---|
| Maximum compatible TV screen size | 80 inch | |
| Product net weight | 28 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Sliding door cycle rating | 30000 cycles | |
| Surface abrasion resistance | 2000 cycles | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Top panel | Walnut-toned solid wood veneer over multi-layer board, matte clear finish | |
|---|---|---|
| Frame and legs | Solid rubberwood with walnut stain, tapered leg construction | |
| Left drawer front | Dark grey matte engineered wood panel, recessed metal pull | |
| Right sliding door fronts | Dark brown matte engineered wood panels, recessed track hardware | |
| Drawer glides | Cold-rolled steel full-extension soft-close slides | |
| Sliding door track | Anodized aluminum silent track system | |
| Back panel | 9mm MDF with walnut grain laminate, pre-cut cable openings | |
| Interior shelves | 15mm multi-layer wood board with matching walnut finish | |
| Hardware pulls | Brushed dark nickel recessed metal handles | |
| Foot pads | Non-marking EVA foam pads on leg bases | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Left drawer storage | Full-extension soft-close drawer with 120mm internal height for remote, cable and accessory storage | |
|---|---|---|
| Central open storage | Divided two-compartment fixed open bay for set-top box, router and decorative display | |
| Right sliding door cabinet | Horizontally sliding doors enclose adjustable-shelf storage for media and miscellaneous items | |
| Cable management | Two rear 60mm cable grommets route wires from open and enclosed bays to wall outlets | |
| Adjustable interior shelf | Three-position height-adjustable shelf inside right cabinet accommodates tall AV components | |
| Anti-tip safety | Included wall anchor hardware secures cabinet to wall for tip-over prevention | |
| Elevated base clearance | 114mm floor gap allows robotic vacuum cleaners to access under the unit | |
| Ventilation design | Rear panel gaps around cable openings provide passive airflow for heat-generating AV devices | |
| Cable / Vent Opening Reference | 80 mm diameter; recommend 4rear cable/vent openings |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
推荐空间 / 目标用户 / 使用方式
| Residential living room | Placed against wall facing primary seating group to support flat-screen TV and media equipment | |
|---|---|---|
| Open-plan living/dining space | Low profile does not block sight lines between lounge and kitchen/dining areas | |
| Apartment and small home use | 2000mm width balances large TV support and compact depth for limited floor space | |
| Mid-century modern interior schemes | Walnut-grey two-tone finish and tapered legs coordinate with solid wood and upholstered living room furniture | |
| Media and display combined use | Mixed open/closed storage balances display of decor and hidden storage of clutter | |
| Robot-vacuum friendly homes | Elevated base allows full under-unit cleaning without moving the cabinet |
欧洲市场准入与化学品要求
| EN 312:2010 | Particleboard specifications for furniture structural use, applicable to core panel performance | |
|---|---|---|
| EN 14749:2016 | Safety and strength requirements for domestic and kitchen storage furniture | |
| EN 717-1:2004 | Formaldehyde emission testing for wood-based panels, Class E1 limit required |
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to cabinet structural performance | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material formaldehyde emission limit for wood-based furniture | |
| GB/T 4897.3-2007 | Particleboard/fiberboard specifications for furniture use, applicable to core panels |
本产品须满足以下技术参数要求: 1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to cabinet structural performance; 2. GB 18584-2001:Indoor decoration material formaldehyde emission limit for wood-based furniture; 3. GB/T 4897.3-2007:Particleboard/fiberboard specifications for furniture use, applicable to core panels; 最终交付参数、检测报告和验收标准以双方采购合同为准。
