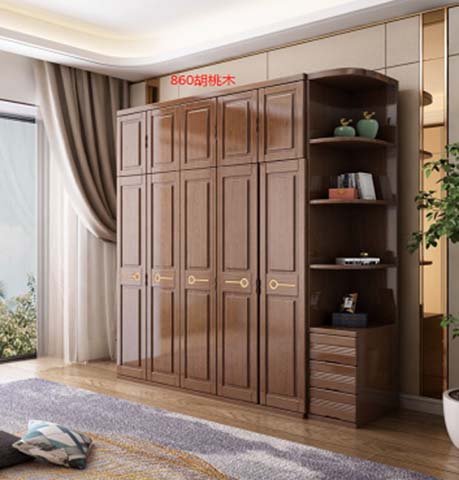

商品供应商Walnut 5-Door Wardrobe Armoire with Integrated Open Shelving and Drawer Tower，18mm thick walnut-finish hardwood and engineered wood board
可联系供应商获取生产周期与报价。
PRODUCT MODULE 01 / 06
基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源：工厂资料结构化字段，最终以实测值为准
| 产品外部尺寸（宽 × 深 × 高） | 2520 × 600 × 2400 mm | |
|---|---|---|
| Main 5-door wardrobe section width | 2000 mm | |
| Integrated side tower width | 520 mm | |
| Single wardrobe door width | 400 mm | |
| Open shelf unit height | 1600 mm | |
| Single open shelf clearance height | 380 mm | |
| Drawer bank height | 800 mm | |
| Single drawer internal height | 170 mm | |
| Drawer internal depth | 500 mm | |
| Hanging rail height from floor | 1900 mm | |
| Curved top trim height | 100 mm | |
| Base plinth height | 80 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源：产品性能数据，采购前请核对具体测试口径
| Total product weight | 150 kg | |
|---|---|---|
| Single shelf static load capacity | 25 kg | |
| Recommended maximum user load | 250 kg | |
| Hinge open/close cycle rating | 80000 cycles | |
| Drawer slide open/close cycle rating | 50000 cycles | |
| Surface scratch resistance | 2H pencil hardness | |
| Product warranty period | 3 years | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles |
PRODUCT MODULE 03 / 06
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源：以工厂材质清单与验货报告为准
| Main cabinet frame | 18mm thick walnut-finish hardwood and engineered wood board | |
|---|---|---|
| Wardrobe back panel | 9mm thick density board with walnut veneer | |
| Open shelf surfaces | 18mm thick matching walnut-finish wood board | |
| Drawer box construction | 12mm thick multi-layer plywood with dovetail joinery | |
| Cabinet surface finish | Matte polyurethane lacquer coat | |
| Door and drawer hardware | Gold-tone zinc alloy pulls and steel hinges | |
| Drawer slides | 3-section soft-close cold-rolled steel slides | |
| Internal hanging rail | 30mm diameter oval chrome-plated steel | |
| Edge banding | 1mm thick PVC edge banding matching walnut finish | |
| Anti-tip hardware | 2 steel wall anchor brackets with screws | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints |
PRODUCT MODULE 04 / 06
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源：功能配置参数，以供应商正式规格为准
| Door operation | 5 hinged raised-panel doors open 110 degrees outward | |
|---|---|---|
| Open shelf storage | 4 fixed display shelves for decor, books, and frequently accessed items | |
| Drawer storage | 4 stacked smooth-glide drawers for folded garments, accessories, and small items | |
| Internal hanging space | Full-height and half-height hanging zones for long and short garments | |
| Adjustable shelf compatibility | Pre-drilled shelf pin holes allow 32mm incremental height adjustment | |
| Soft-close feature | Doors and drawers close with soft-close damping to reduce slamming noise | |
| Moisture protection | Elevated base plinth prevents direct floor contact to reduce moisture damage | |
| Wall anti-tip function | Included anti-tip anchors secure cabinet to wall to prevent tip-over risk | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源：外贸报价与装柜测算参考
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源：依据产品结构与品类整理的推荐应用场景
| Primary use space | Master or secondary residential bedrooms for full clothing and accessory storage | |
|---|---|---|
| Applicable user groups | Households requiring large enclosed hanging storage plus open display and drawer organization | |
| Recommended placement | Aligned against a flat bedroom wall adjacent to window or bed for easy access | |
| Style matching | Traditional Chinese, classic, or walnut-toned residential interior decor schemes | |
| Configuration compatibility | Can be paired with matching matching bedside tables, dressers, or bed frames for coordinated bedroom sets | |
| Storage suitability | Holds long coats, dresses, short garments, folded clothes, accessories, and decorative display items |
STANDARD S1
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| EN 14749:2016 | Domestic and kitchen storage units safety requirements, applicable to tip-over and structural stability testing | |
|---|---|---|
| EN 12521:2015 | Furniture strength, durability, and safety for domestic storage, applicable to load performance verification |
STANDARD S3
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to dimensional and structural inspection | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wooden furniture, applicable to formaldehyde emission testing | |
| GB/T 4897.3-2003 | Particleboard for furniture use, applicable to panel material structural performance verification |
招标文件标准化描述文本
本产品须满足以下技术参数要求： 1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable to dimensional and structural inspection； 2. GB 18584-2001：Indoor decoration material limit of harmful substances for wooden furniture, applicable to formaldehyde emission testing； 3. GB/T 4897.3-2003：Particleboard for furniture use, applicable to panel material structural performance verification； 最终交付参数、检测报告和验收标准以双方采购合同为准。
