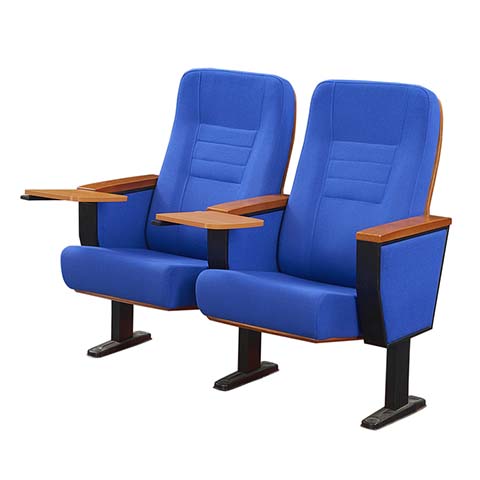

Two-Seat Ganged Floor-Mounted Auditorium Chair with Swing-Out Writing Tablets Specifications

AUD-2S-WT-BLU

代码:0YAZ3FV1
获取供应商报价
2026-08-23 21:40人气: 44
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

AUD-2S-WT-BLU

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall two-seat unit dimensions1180 x 792 x 1021 mm
Per-seat center distance590 mm
Seat height above finished floor450 mm
Seat cushion depth (open position)440 mm
Writing tablet size (deployed)300 x 250 x 12 mm
Writing tablet height above floor750 mm
Backrest total height above seat571 mm
Minimum required row spacing950 mm
Armrest top height above seat220 mm
Unit depth with seat folded for aisle clearance500 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Per-seat net weight28 kg
Recommended static load per seat150 kg
Seat cushion foam density60 kg/m³
Backrest foam density45 kg/m³
Seat cushion foam thickness125 mm
Backrest foam thickness135 mm
Fabric abrasion resistance (Martindale)50000 cycles
Expected service life with proper maintenance5 years
Seat return impact noise level30 dB
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholsteryWear-resistant blue woven polyester fabric
Seat and back paddingCold-molded high-resilience polyurethane foam
Armrest top surfacesSolid beech wood with clear lacquer finish
Seat and back edge trimMatching beech wood veneer trim
Structural frame and stanchion legs2.0mm thick powder-coated carbon steel
Floor mounting feetBlack painted cast iron with pre-drilled bolt holes
Swing-out writing tablet surface12mm thick MDF with woodgrain laminate finish
Seat/back inner support shell12mm thick molded hardwood plywood
Seat return mechanism hardwareZinc-plated steel torsion springs with rubber dampers
Upholstery seam stitchingHigh-tenacity polyester thread with 8mm stitch pitch
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat auto-return functionDamped torsion-spring fold-up, 3-second silent return to stowed position when unoccupied
Writing tablet operationSwing-out deployment from inner armrest, locks flat at 6.5° tilt, folds flush into arm when not in use
Ganged row installationModular interlocking connection between adjacent seats for uniform row alignment
Floor mounting systemSecured with M10 hex expansion bolts through pre-drilled base plates
Noise damping designRubber bumpers at seat pivot and tablet contact points eliminate metallic impact noise
Ergonomic back supportContoured segmented backrest with built-in lumbar support for upright seated posture
Separated seat cushion designIndividual padded seat per position with fabric divider between adjacent seats
Optional customization featuresCompatible with row number plates, embroidered logos, cup holders, and flame-retardant fabric upgrades
Writing tablet tilt angle6.5°
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Lecture hall and university classroom useFixed row layout with writing tablets supports note-taking during extended academic sessions
Corporate conference and training room useFormal ganged seating with tablet surfaces accommodates presentations and training materials
Small auditorium and theater pre-function spaceLow-noise auto-return seats maintain clear aisles for audience entry and exit
Government and institutional meeting hall useFormal blue upholstery and wood trim meet public venue aesthetic and durability requirements
Tiered seminar room installationFloor-mounted design works on sloped tiered floors for unobstructed sight lines
Public training center useWear-resistant fabric and durable frame withstand daily high-traffic repeated use
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 13761:2002Performance requirements for auditorium seating, applicable to structural stability and safety validation
EN 1021-1:2014Upholstered furniture flammability test (cigarette ignition), recommended for public venue safety
EN 12520:2015Furniture strength, durability and safety requirements for non-domestic seating
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.1-2017General purpose office chairs standard, applicable for static load and backrest durability reference
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to wood trim and tablet components
GB/T 3325-2017General technical requirements for metal furniture, applicable to steel frame and stanchion components
GB 20286-2006Flame retardant requirements for public venue upholstered furniture, recommended for high-occupancy spaces
GB/T 10357.3-2013Furniture mechanical performance test for seating, applicable for static load and durability validation
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to wood trim and tablet components;
2. GB/T 3325-2017:General technical requirements for metal furniture, applicable to steel frame and stanchion components;
3. GB 20286-2006:Flame retardant requirements for public venue upholstered furniture, recommended for high-occupancy spaces;
4. GB/T 10357.3-2013:Furniture mechanical performance test for seating, applicable for static load and durability validation;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · AUD-2S-WT-BLU

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · AUD-2S-WT-BLU

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · AUD-2S-WT-BLU打开导出工具

页面快速操作

发布采购询价

产品描述

The Two-Seat Ganged Floor-Mounted Auditorium Chair with Swing-Out Writing Tablets (model AUD-2S-WT-BLU, unbranded) is a purpose-built fixed-row public seating solution designed for high-use formal and educational venues. Each unified two-seat unit presents a cohesive, polished visual profile, with rich blue woven polyester upholstery paired with warm solid beech wood armrests finished in clear lacquer, plus matching beech wood veneer edge trim that creates a consistent, professional aesthetic across installed rows. Modular interlocking connections between adjacent units ensure perfectly uniform row alignment, while floor-mounted cast iron feet with pre-drilled bolt holes deliver a stable, permanent installation suitable for both flat and sloped tiered floors, with a required minimum row spacing of 950mm to support comfortable circulation. The unit’s robust construction prioritizes long-term durability in high-traffic settings: a 2.0mm thick powder-coated carbon steel frame forms the core structure, supported by 12mm molded hardwood plywood inner seat and back shells. Seating surfaces are padded with cold-molded high-resilience polyurethane foam, with 125mm thick 60kg/m³ density foam for seat cushions and 135mm thick 45kg/m³ density foam for contoured, segmented high backrests that include built-in lumbar support to encourage healthy upright posture during extended seated sessions. The wear-resistant blue woven upholstery delivers 50,000 Martindale cycles of abrasion resistance, while zinc-plated steel torsion springs with rubber dampers power the seat’s damped auto-return mechanism, which folds seats to a stowed position in a silent 3-second cycle when unoccupied. Rubber bumpers at pivot and contact points eliminate metallic impact noise to keep venue spaces quiet. Each position includes an individual padded seat separated by a fabric divider for personal space, paired with a 12mm thick MDF swing-out writing tablet finished in woodgrain laminate. The tablet deploys smoothly from the inner armrest, locks flat at a 6.5° tilt at 750mm above finished floor to support writing or material placement, and folds fully flush into the armrest when not in use to keep aisles clear. When deployed, the tablet measures 300 x 250 x 12mm, sized to hold notepads, small devices, or training materials. Each seat supports a 150kg recommended static load, with a 450mm seat height, 440mm open cushion depth, and 571mm backrest height above the seat for consistent ergonomic support. This seating is ideally suited for university lecture halls and tiered seminar rooms, where the integrated writing tablets support note-taking during long academic sessions and floor-mounted installation preserves unobstructed sight lines across sloped tiers. It also fits corporate conference and training rooms, small auditorium pre-function spaces, government and institutional meeting halls, and public training centers, where its formal aesthetic, low-noise operation, and durable build withstand daily repeated high-traffic use while maintaining clear egress paths. For procurement, note each two-seat unit ships in 2 cartons, with 40 minutes of assembly time required per set, and 135 units fitting a 20GP container at 85% space utilization for large-scale project planning.
