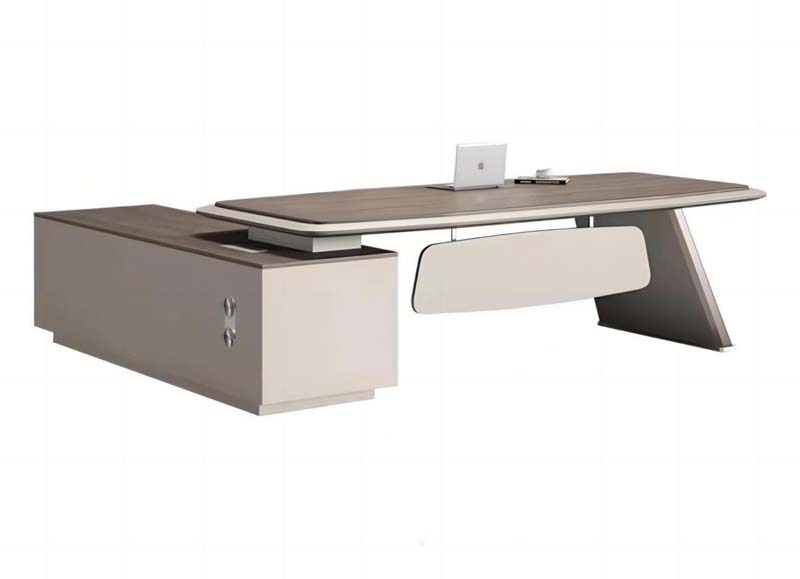

Two-Tone Curved L-Shaped Executive Desk with Left Lockable Storage Return Specifications

ED-CRV-2400-LR-2T

代码:01WRB9V1
获取供应商报价
2026-09-03 11:47人气: 18
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

ED-CRV-2400-LR-2T

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

overall dimensions2400 x 1800 x 750 mm
main worktop thickness25 mm
edge band thickness2 mm
storage return dimensions1600 x 600 x 750 mm
suspended modesty panel dimensions1200 x 18 x 400 mm
knee clearance height650 mm
knee clearance width1100 mm
support leg base thickness50 mm
cable grommet diameter80 mm
drawer internal depth550 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

total worktop static load200 kg
per drawer slide load rating45 kg
drawer slide cycle rating50000 cycles
cabinet lock cycle rating20000 cycles
net weight180 kg
recommended user weight capacity150 kg
surface abrasion resistance rating2000 cycles
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

worktop core25mm E0 grade engineered wood panel
worktop finishMatte melamine laminate with two-tone taupe and off-white palette
worktop edge2mm rounded ABS edge trim
support leg50mm thick powder-coated steel with polished metal foot cap
modesty panel18mm engineered wood with matching matte off-white finish
storage cabinet body18mm engineered wood with matching taupe/off-white finish
hardwareZinc alloy keyed locks, steel full-extension drawer slides
leveling glidesABS adjustable feet on base of storage return and support leg
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
Primary Connector SpecificationReference M6-M8 with at least 2 fixing points per main support
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

storage lock systemKeyed cam locks securing both storage drawers and cabinet door
cable managementConcealed wire channel with 80mm diameter grommet for desktop cord routing
leveling adjustment15mm height adjustment via ABS leveling glides for uneven floors
seated privacyCurved suspended modesty panel blocking front view of seated user's leg area
drawer operationFull-extension ball-bearing slides allowing complete drawer access for filing
support structureCantilevered angled steel leg eliminating obstructive front support for maximum knee room
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

private executive officeSuitable for senior manager private offices with professional aesthetic and storage needs
corporate headquarters workspaceDesigned for high-end corporate environments requiring durable commercial-grade furniture
home executive officeAppropriate for premium home office setups requiring dedicated storage and large work surface
boardroom ancillary workspaceUsable as a supplementary work surface adjacent to boardrooms for meeting preparation
seated single-user operationConfigured for one seated user with unobstructed knee clearance and front-facing work surface
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office worktables safety and strength requirements, applicable for performance testing
EN 13722:2004Office furniture storage units strength and durability requirements, applicable for return cabinet
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products performance standard, applicable for commercial office load and durability testing
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden office furniture, applicable for structural performance
GB 18580-2017Formaldehyde emission limits for wood-based panels, applicable for material compliance
GB/T 4897.3-2003Particleboard for furniture use, applicable for worktop core material standards
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden office furniture, applicable for structural performance;
2. GB 18580-2017:Formaldehyde emission limits for wood-based panels, applicable for material compliance;
3. GB/T 4897.3-2003:Particleboard for furniture use, applicable for worktop core material standards;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · ED-CRV-2400-LR-2T

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · ED-CRV-2400-LR-2T

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · ED-CRV-2400-LR-2T打开导出工具

页面快速操作

发布采购询价

产品描述

The KANAITE ED-CRV-2400-LR-2T two-tone curved L-shaped executive desk combines professional aesthetic with functional commercial-grade design for dedicated single-user workspaces. Its visual profile features a smooth, curved front worktop edge and a coordinated two-tone matte palette of taupe and off-white, arranged in a left-oriented L layout that pairs the main work surface with an integrated storage return. The design eliminates obstructive front supports via a cantilevered angled steel leg, creating an open, streamlined front elevation complemented by a suspended modesty panel that sits flush below the main worktop to maintain a clean, uncluttered sightline. Construction centers on durable engineered wood components, with a 25mm E0 grade engineered wood worktop core (with 40mm composite build-up for load-bearing sections) finished in scratch-resistant matte melamine laminate, trimmed with 2mm rounded ABS edge banding to prevent impact damage. The 50mm thick powder-coated steel support leg is capped with a polished metal foot, while 18mm engineered wood forms the modesty panel and storage cabinet body, all finished to match the two-tone palette. Hardware includes zinc alloy keyed cam locks and steel full-extension ball-bearing drawer slides, with ABS adjustable leveling glides fitted to the base of the storage return and support leg. Functional design supports focused executive work: the keyed lock system secures both storage drawers and the cabinet door for private document storage, while full-extension slides allow complete drawer access for filing materials. A concealed wire channel with an 80mm diameter grommet routes up to 10 power or data cables, with the integrated cable tray supporting up to 10kg of cord management hardware. The suspended curved modesty panel blocks front views of the seated user’s leg area for seated privacy, while 15mm of height adjustment via leveling glides accommodates uneven floors. The desk delivers a total worktop static load of 200kg, with each drawer slide rated for 45kg across 50,000 operation cycles, and cabinet locks rated for 20,000 cycles, with a surface abrasion resistance rating of 2000 cycles for long-term commercial use. Knee clearance measures 650mm in height and 1100mm in width for unobstructed seated positioning. This desk is suited for senior manager private offices, high-end corporate headquarters workspaces, premium home executive office setups, and as a supplementary work surface adjacent to boardrooms for meeting preparation. For procurement, note that each set is shipped across multiple cartons with a total packaged weight of 180kg and total packaging volume of 1 cubic meter, requiring 40 minutes of on-site assembly; the desk supports a recommended user weight of 150kg, and the left-mounted storage return configuration must be confirmed against intended office layout prior to order placement.
