Two-Tone Double-Pedestal Executive Office Desk Specifications

ED-DP-2400-WB

代码:1G3FC8V1
获取供应商报价
2026-09-03 12:27人气: 20
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

ED-DP-2400-WB

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

overall dimensions2400 x 900 x 750 mm
worktop thickness50 mm
edge banding thickness2 mm
central knee clearance width1200 mm
central knee clearance height650 mm
left pedestal dimensions600 x 600 x 600 mm
right return cabinet dimensions600 x 600 x 600 mm
cable grommet diameter80 mm
modesty panel height500 mm
drawer front panel thickness18 mm
pedestal plinth base height50 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

worktop static load capacity150 kg
drawer slide cycle rating50000 cycles
cabinet door hinge cycle rating80000 cycles
surface abrasion resistance2000 cycles
net weight135 kg
recommended user weight capacity150 kg
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

worktop core25mm thick MDF/particleboard engineered wood core
worktop finishWalnut wood-grain matte melamine laminate
accent panelsBeige matte thermofoil laminate panels
edge treatment2mm thick PVC edge banding with rounded bevel profile
pedestal cabinet frames18mm thick engineered wood panel construction
drawer slidesFull-extension ball-bearing metal glides
lock mechanismKeyed metal drawer lock
cable grommetBrushed ABS plastic cable port cover
plinth bases15mm thick engineered wood with beige laminate finish
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

left pedestal storageTwo lockable full-extension drawers for document and office supply storage
right pedestal storageDouble-door enclosed cabinet with adjustable internal shelf for bulk storage
cable managementIntegrated desktop cable port with hidden internal routing to floor
work surface designFloating elevated thick worktop with rounded bevel edges to reduce contact pressure
privacy featureFull-width modesty panel spanning central knee opening to block leg view
base stabilityRecessed plinth bases with integrated floor leveling glides for uneven office floors
security functionKeyed lock secures upper drawer to store confidential office documents
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

executive private officeSuitable for CEO, general manager or director private office spaces
management workstationSuitable for middle manager open-plan workstation areas with dedicated storage
commercial office projectsSuitable for bulk specification in new office fit-out and renovation projects
seated office workOptimized for 760 mm seated working height with standard office chairs
conference side useSuitable for use as a large presentation desk in small executive meeting rooms
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office worktables safety and strength requirements, applicable for worktop load and stability
EN 12521:2015Furniture strength durability and safety for domestic and non-domestic storage units
EN 13722:2004Furniture strength and durability of cabinets, applicable for pedestal storage performance
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products standard for safety, durability and structural performance in commercial offices
ANSI/BIFMA X5.9-2019Storage units standard for drawer and cabinet load and cycle durability
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable for panel structural integrity
GB/T 4897.3-2003Particleboard for furniture use, applicable for worktop and cabinet panel core material
GB 18584-2001Limit of harmful substances in wooden furniture, applicable for formaldehyde emission limits
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for panel structural integrity;
2. GB/T 4897.3-2003:Particleboard for furniture use, applicable for worktop and cabinet panel core material;
3. GB 18584-2001:Limit of harmful substances in wooden furniture, applicable for formaldehyde emission limits;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · ED-DP-2400-WB

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · ED-DP-2400-WB

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · ED-DP-2400-WB打开导出工具

页面快速操作

发布采购询价

产品描述

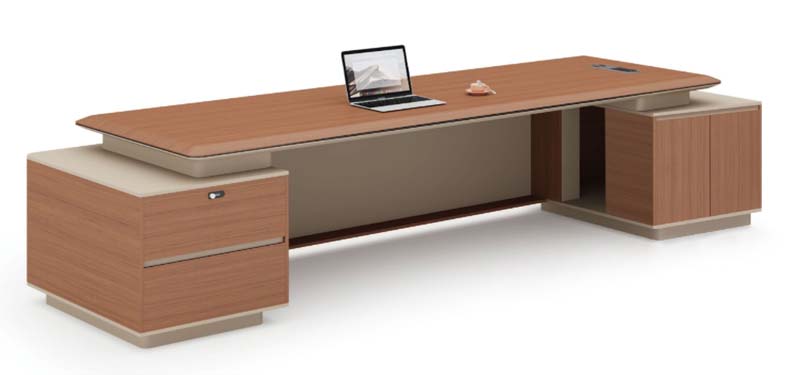

The KANAITE Two-Tone Double-Pedestal Executive Office Desk, model ED-DP-2400-WB, presents a refined modern executive aesthetic defined by its coordinated two-tone finish. The expansive walnut wood-grain matte melamine worktop is paired with warm beige matte thermofoil accent panels, creating a polished, professional visual profile. The layout pairs a thick, floating elevated worktop with a left storage pedestal and matching right return cabinet, anchored by recessed beige-laminate plinth bases. A full-width modesty panel spans the central knee opening, balancing visual privacy with open, unobstructed leg room for seated use. All exposed edges feature 2mm thick PVC edge banding with a rounded bevel profile to soften contact points and reduce pressure during extended work sessions. Constructed from durable engineered wood components, the desk features a 50mm thick worktop built over an engineered wood core, 18mm thick panel framing for pedestal cabinets, and 15mm thick plinth bases. Full-extension ball-bearing metal glides support smooth drawer operation, while keyed metal locks secure storage compartments, and a brushed ABS plastic cable grommet sits flush with the worktop surface. Hardwearing surface finishes deliver reliable abrasion resistance for daily commercial use, and integrated floor leveling glides adapt to uneven office floors for steady, wobble-free positioning. The worktop supports a 150kg uniformly distributed static load, drawer slides are rated for 50000 open-close cycles, and cabinet hinges meet an 80000 cycle rating for long-term performance. Functional design elements address core executive workspace needs: the left pedestal houses two lockable full-extension drawers for organized document and supply storage, while the right double-door cabinet includes an adjustable internal shelf for bulk item storage. An integrated cable management system routes cords from the 80mm desktop grommet through hidden internal channels to the floor, eliminating surface clutter. The central 1200mm wide, 650mm high knee clearance is optimized for use with standard 760mm seat height office chairs. This desk suits executive private offices for CEOs, general managers and directors, dedicated middle management workstations in open-plan layouts, large presentation positions in small executive meeting rooms, and bulk specification for new office fit-out and renovation projects. Procurement teams should note each unit ships across multiple cartons with a total packaged gross weight of 180kg, 1 cubic meter total packaging volume, and a 40-minute per set assembly reference. The unit’s 135kg net weight requires appropriate floor load planning for upper-level installations, and the two-tone finish coordinates with most modern commercial office palettes for cohesive workspace design.
