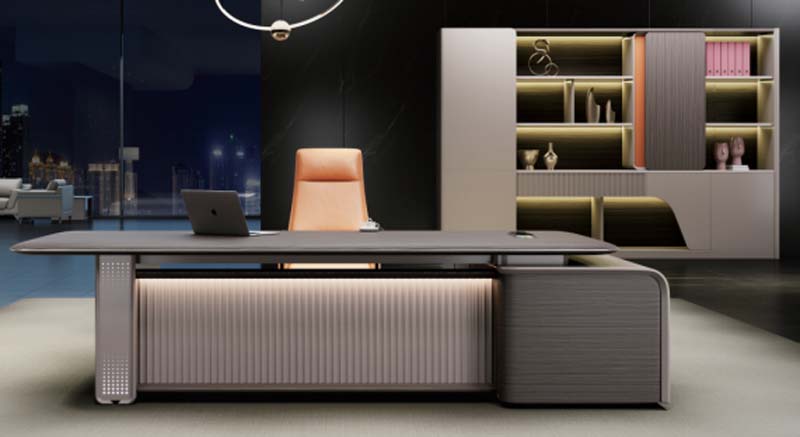

商品供应商Modern L-Shaped Grey Fluted Executive Desk with Right Return Cabinet and Under-Desk LED Lighting,MDF
可联系供应商获取生产周期与报价。
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录,发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall desk dimensions | 2400 x 1800 x 750 mm | |
|---|---|---|
| Main work surface depth | 800 mm | |
| Right return cabinet width | 1400 mm | |
| Tabletop thickness | 60 mm | |
| Modesty panel height | 400 mm | |
| Central knee clearance height | 690 mm | |
| Knee clearance width | 1200 mm | |
| Desk edge banding thickness | 2 mm | |
| Left support leg cross-section | 120 x 120 mm | |
| Cable grommet diameter | 80 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Tabletop static load capacity | 200 kg | |
|---|---|---|
| General drawer slide load rating | 35 kg | |
| Net desk weight reference | 120 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Hinge cycle rating | 80000 cycles | |
| Surface abrasion resistance | 2000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Work surface core | E1-grade engineered wood particle board | |
|---|---|---|
| Work surface finish | Anti-scratch thermoformed grey melamine laminate | |
| Front modesty panel | 15mm thick engineered wood with vertical fluted texture | |
| Left support leg | 1.5mm thick powder-coated steel with perforated decorative detail | |
| Structural cabinet panels | 15mm thick engineered wood with matching grey laminate finish | |
| Hardware components | Zinc-plated steel quick-connect fittings and soft-close hydraulic hinges | |
| Ambient lighting | 24V LED strip light with diffused cover | |
| Leveling glides | Nylon base adjustable glides | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Under-desk ambient lighting | Warm white LED strip with hidden diffuser | |
|---|---|---|
| Right return storage | Integrated fixed cabinet with enclosed drawer and door storage | |
| Cable management | Desktop grommet and under-desk cable tray | |
| Drawer operation | Hydraulic soft-close slides with hidden beveled handles | |
| Cabinet door operation | Soft-close hydraulic hinges with push-to-open access | |
| Knee clearance access | Open central bay without obstructive cross-braces | |
| Floor leveling | Adjustable nylon glides on all support points | |
| Storage lock provision | Mechanical combination lock for file drawer | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
推荐空间 / 目标用户 / 使用方式
| Executive private office | Sized for CEO/senior management use in dedicated enclosed office spaces | |
|---|---|---|
| Corporate boardroom annex | Suited for private meeting and document preparation adjacent to board facilities | |
| High-end home office | Works for luxury residential office spaces for senior professionals | |
| Single-user daily office use | Designed for 8+ hours daily seated work with standard executive chairs | |
| Professional client meeting space | Presentable front for in-office client meetings across the work surface |
欧洲市场准入与化学品要求
| EN 527-1:2011 | Office work tables - Safety and strength requirements, applicable to structural load testing | |
|---|---|---|
| EN 527-2:2002 | Office work tables - Mechanical safety requirements, applicable to stability and durability | |
| EN 13722:2004 | Office furniture - Storage units, applicable to return cabinet strength and hardware performance |
美国及加拿大家具标准
| ANSI/BIFMA X5.5-2021 | Desk Products - Safety and performance standard, applicable to load and cycle testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage Units - Safety and performance standard, applicable to return cabinet durability |
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable to desk panel construction and finish | |
|---|---|---|
| GB/T 3327-2016 | Office desks and tables, applicable to dimensional accuracy, stability and load requirements | |
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, applicable to E1-grade core material verification | |
| GB/T 4897.3-2003 | Particle board for furniture use, applicable to work surface core material specifications |
本产品须满足以下技术参数要求: 1. GB/T 3324-2017:General technical requirements for wooden office furniture, applicable to desk panel construction and finish; 2. GB/T 3327-2016:Office desks and tables, applicable to dimensional accuracy, stability and load requirements; 3. GB 18580-2017:Formaldehyde emission limits for wood-based panels, applicable to E1-grade core material verification; 4. GB/T 4897.3-2003:Particle board for furniture use, applicable to work surface core material specifications; 最终交付参数、检测报告和验收标准以双方采购合同为准。
