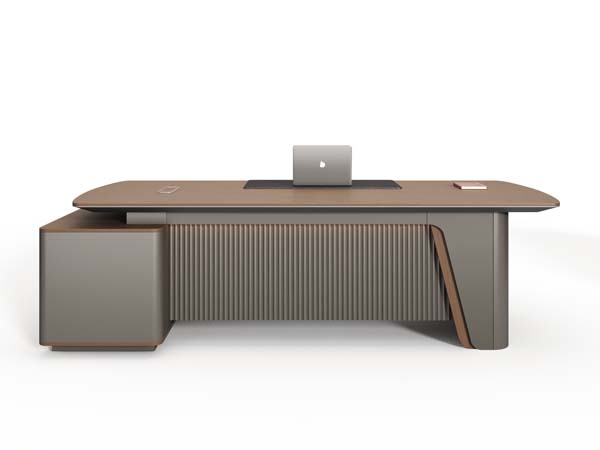

L-Shaped Boat-Top Executive Office Desk with Fixed Left Storage Return and Fluted Modesty Panel Specifications

EXE-LBT-2400-L-FP

代码:ACBNTRV1
获取供应商报价
2026-08-31 14:10人气: 20
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

EXE-LBT-2400-L-FP

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall assembled dimensions2400 x 1981 x 750 mm
Main worktop size1800 x 900 mm
Left storage return size1200 x 600 mm
Worktop thickness50 mm
Edge band thickness2 mm
Seated knee clearance width1200 mm
Seated knee clearance height650 mm
Seated knee clearance depth600 mm
Fluted modesty panel height450 mm
Recessed central cable channel width800 mm
Right support panel thickness50 mm
Storage return cabinet height600 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Worktop static load capacity136 kg
Drawer slide cycle rating50000 cycles
Cabinet door hinge cycle rating100000 cycles
Recommended maximum user weight for seated use150 kg
Product net weight120 kg
Surface scratch resistance rating2000 cycles
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Main worktop50mm thick E0 grade engineered wood with warm brown wood grain laminate
Left return cabinet25mm thick matte taupe laminated engineered wood with brown wood edge trim
Front fluted modesty panel18mm thick laminated MDF with vertical ribbed texture, matte taupe finish
Right side support panel50mm thick laminated engineered wood with angled brown wood accent trim
Edge banding2mm thick impact-resistant PVC matching worktop and panel finishes
Cable channel insertBlack textured PVC/ABS flush recessed tray for cable routing
Structural underframe1.5mm thick powder-coated steel internal support frame
Drawer slidesFull extension cold-rolled steel ball-bearing slides
Leveling feet12mm diameter nylon adjustable feet with 15mm height adjustment
Cabinet door hingesSoft-close cold-rolled steel concealed hinges
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Fixed left storage returnPermanently attached left-side pedestal with 3 drawers and 1 enclosed cabinet for office storage
Recessed central cable channelFlush worktop channel routes monitor, laptop and power cables under work surface to reduce clutter
Lockable file storageBottom file drawer accommodates letter, A4 and legal size documents with keyed lock
Adjustable foot levelers15mm vertical adjustment on all base contact points compensates for uneven floor surfaces
Fluted front modesty panelFull-width front panel conceals under-desk wiring and leg area for privacy during seated use
Soft-close drawer operationDrawers and cabinet door close with dampened motion to eliminate slamming
Cable grommet access2 cable ports at channel ends route wiring to under-desk cable tray
Boat-shaped worktop edgeRounded beveled front and rear edges reduce contact pressure during extended seated work
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Private executive officeSuitable for CEO, director or senior manager private offices with professional, premium aesthetic
Home executive officeAppropriate for dedicated high-end home workspaces requiring integrated storage and cable management
Corporate manager workspaceFits standard corporate management office layouts requiring formal meeting space at the desk
Recommended companion seatingPairable with high-back executive office chair, 2 guest side chairs for front-of-desk meetings
Configuration noteFixed left return orientation requires minimum 2800mm x 2400mm clear floor space for access
Cable-ready setupSupports dual monitor, laptop, phone and desk lamp setups via integrated central cable channel
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office worktables safety and strength requirements, applicable to structural stability and load ratings
EN 527-2:2016Office worktables dimensional, safety and durability requirements, applicable to ergonomic clearance dimensions
EN 13722:2004Office furniture storage units performance requirements, applicable to drawer and cabinet durability
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products performance standard, applicable to static load, cycle and stability testing for commercial use
ANSI/BIFMA X5.9-2019Storage units performance standard, applicable to drawer slide and hinge cycle durability ratings
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden office furniture, applicable to worktop and cabinet structural performance
GB/T 3327-2018Performance requirements for office desks, applicable to load, stability and dimensional tolerances
GB 18580-2017Formaldehyde emission limits for engineered wood panels, minimum E1 grade required for compliance
GB/T 4893.8-2013Surface wear resistance test method for furniture finishes, applicable to laminate worktop durability
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden office furniture, applicable to worktop and cabinet structural performance;
2. GB/T 3327-2018:Performance requirements for office desks, applicable to load, stability and dimensional tolerances;
3. GB 18580-2017:Formaldehyde emission limits for engineered wood panels, minimum E1 grade required for compliance;
4. GB/T 4893.8-2013:Surface wear resistance test method for furniture finishes, applicable to laminate worktop durability;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · EXE-LBT-2400-L-FP

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · EXE-LBT-2400-L-FP

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EXE-LBT-2400-L-FP打开导出工具

页面快速操作

发布采购询价

产品描述

This L-shaped executive office desk features a refined two-tone visual design defined by a warm brown wood grain main worktop, matte taupe storage and support panels, and complementary brown wood accent trim. Its layout incorporates a permanently attached left-side storage return and a full-width front fluted modesty panel with vertical ribbed texture, creating a structured, premium silhouette that balances open work area with enclosed storage zoning. Crafted with durable, purpose-built materials, the desk’s 50mm thick E0 grade engineered wood main worktop is finished with impact-resistant, color-matched 2mm PVC edge banding. The left return cabinet uses matte taupe laminated engineered wood trimmed to match the worktop finish, while the fluted front modesty panel is constructed from laminated MDF. A 1.5mm thick powder-coated steel internal frame delivers structural rigidity, paired with 12mm diameter nylon adjustable leveling feet that offer vertical adjustment to compensate for uneven floor surfaces. Integrated cable management components include black textured PVC/ABS flush recessed trays and routed access ports, with cold-rolled steel ball-bearing full-extension drawer slides and dampened soft-close hardware for smooth, quiet operation of drawers and cabinet doors. The desk delivers targeted practical functionality for professional use. The fixed left storage return houses three drawers and one enclosed cabinet, including a bottom lockable file drawer that accommodates letter, A4, and legal size documents for secure records storage. A recessed central cable channel with end grommet ports routes power and device cables for monitors, laptops, phones, and desk lamps to under-desk trays, reducing surface clutter. The full-width fluted modesty panel conceals under-desk wiring and the seated leg area to support user privacy, while soft-close mechanisms prevent slamming during daily use. This desk is well suited for private executive offices for CEOs, directors, or senior managers, high-end dedicated home executive workspaces, and standard corporate manager offices that support small front-of-desk meetings. It pairs seamlessly with high-back executive office chairs and two guest side chairs for casual in-desk consultations. For procurement, note the fixed left return orientation requires clear floor space to accommodate access and use; the product ships across multiple cartons with a reference assembly time for on-site setup, and buyers should plan for delivery and placement support given the set’s packaged weight. The fixed-height design supports multi-device workstation setups out of the box, with no additional cable management accessories required for standard office tech configurations.
