PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	2400 × 1900 × 760 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Desktop distributed static load	80 kg
Concentrated desktop point load	30 kg on a 200 x 200 mm pad
Credenza top distributed static load	60 kg
Drawer slide rated load	35 kg per drawer
Drawer slide durability	50,000 open/close cycles
Hinge/door cycle durability	100,000 cycles
Cable tray distributed load	10 kg
Worktop horizontal deflection limit	3 mm at centre under rated load
Levelling stability	Stable on floor variations up to 15 mm
Finish abrasion resistance	Class 2B horizontal laminate surface

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Worktop substrate and finish	50 mm MDF or particleboard substrate with dark taupe melamine laminate, sealed as a thick slab panel
Worktop edge	2 mm PVC edge band bonded around exposed top edges with bronze-tone accent layer
Credenza carcass	18 mm E1-class engineered-wood panels with matte taupe melamine or lacquer finish and rigid dowel-and-cam joinery
Back and modesty panel	25 mm engineered-wood panel with taupe matte finish and bronze-tone horizontal trim rails
Right support panel	50 mm engineered-wood side support with rounded laminate edge and floor plinth
Drawer boxes	15 mm melamine-faced engineered-wood drawer sides with reinforced bottom groove and metal fixing brackets

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Cable Management Capacity	Reference capacity 10power/data cables; tray load 10 kg
Reference Reassembly Count	Main joints should support 5controlled assembly cycles

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Manager or director workstation	L-shaped layout separates active computing on the main top from filing and reference material on the left return.
Conference-ready management room	provides a durable 100 kg top for equipment, briefing documents, and visitor-facing meetings.

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

该市场暂无标准数据。

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017 General technical requirements for wooden furniture	recommended acceptance for panel dimensions, workmanship, and stability.
GB/T 3325-2017 General test methods for metal furniture hardware	recommended drawer slide and structural hardware verification.
GB/T 39600-2021 Formaldehyde emission classification for wood-based panels and products	recommend E1 or better panel documentation.
GB 18584-2001 Indoor decorative materials - limit of formaldehyde for wood-based furniture	recommended indoor-air material check.

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324-2017 General technical requirements for wooden furniture：recommended acceptance for panel dimensions, workmanship, and stability.；
2. GB/T 3325-2017 General test methods for metal furniture hardware：recommended drawer slide and structural hardware verification.；
3. GB/T 39600-2021 Formaldehyde emission classification for wood-based panels and products：recommend E1 or better panel documentation.；
4. GB 18584-2001 Indoor decorative materials - limit of formaldehyde for wood-based furniture：recommended indoor-air material check.；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · ED-L2400-CAB-LED

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · ED-L2400-CAB-LED

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · ED-L2400-CAB-LED打开导出工具

页面快速操作

发布采购询价

产品描述

The ED-L2400-CAB-LED executive desk presents a modern L-shaped workstation with a substantial dark taupe wood-grain worktop, integrated storage credenza, and a coordinated taupe cabinetry finish. Its visual character is defined by a thick slab profile, bronze-tone edge detailing, horizontal bronze trim on the modesty panel, and a rounded right support panel that terminates in a floor plinth. The layout separates the primary work surface from the return and storage zone, creating a managerial desk suited to focused computing, paperwork, meetings, and enclosed filing within one coordinated footprint. The 50 mm worktop is built on an MDF or particleboard substrate and finished in dark taupe melamine laminate. Exposed top edges are protected by 2 mm PVC edge banding with a bronze-tone accent, while an integrated LED and acrylic edge strip adds a refined executive detail. The credenza uses 18 mm E1-class engineered-wood panels with a matte taupe melamine or lacquer finish and rigid dowel-and-cam joinery. Drawer boxes feature 15 mm melamine-faced engineered-wood sides, reinforced bottom grooves, metal fixing brackets, and metal drawer slides. The back and modesty assembly uses a 25 mm engineered-wood panel with taupe matte finish and bronze-tone horizontal rails. Structural support includes an 80 mm main leg or support section with a 2 mm metal wall, and each main seating position offers 680 mm high by 900 mm wide knee clearance. Integrated cable management supports a tidy technology setup through an 80 mm cable opening, a 120 mm-deep cable tray, and reference capacity for 10 power or data cables. The tray has a distributed load capacity of 10 kg. Enclosed storage helps keep files, supplies, and reference materials out of view, while rated hardware supports regular office use. The desktop is rated for an 80 kg distributed static load and a 30 kg concentrated load on a 200 by 200 mm pad; the credenza top is rated for 60 kg distributed. Each drawer slide is rated for 35 kg and 50,000 open/close cycles, while door hinges are rated for 100,000 cycles. This desk is appropriate for manager or director workstations where the main top can be used for active computing and the return for filing and reference material. It also suits conference-ready management rooms for equipment, briefing documents, and visitor-facing discussions. Procurement planning should account for unbranded supply, on-site assembly, two-carton set packing, a 40-minute reference assembly time, and main joints intended for 5 controlled assembly cycles. Freight planning should allow for a packaged gross weight of 180 kg and 1 cubic meter per set, with the main top packed at 2500 by 1050 by 350 mm and the return or pedestal packed separately.

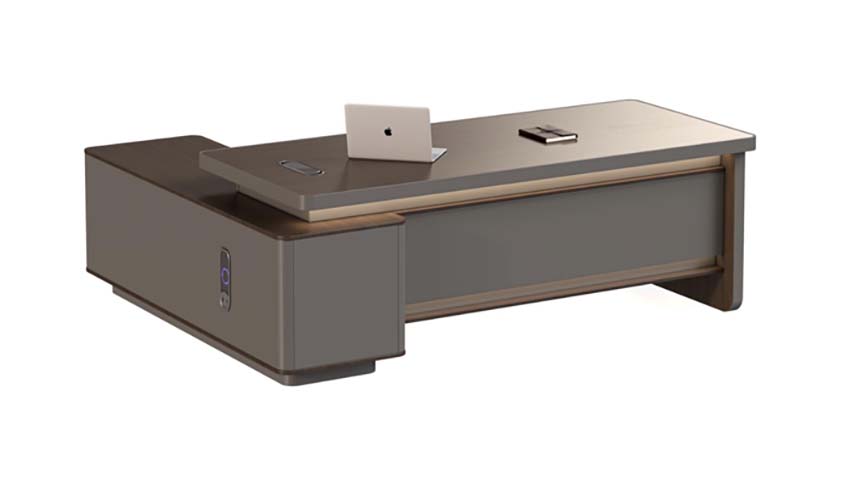

L-Shaped Executive Desk with Integrated Storage Credenza and Cable Management Specifications
