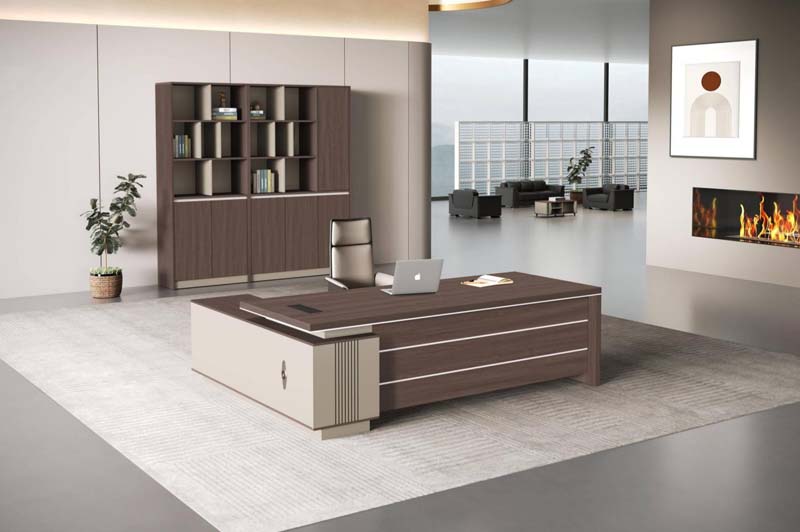

Two-Tone L-Shaped Executive Office Desk with Left Storage Return Specifications

EXE-L2200-WL

代码:DLA5GJV1
获取供应商报价
2026-09-03 11:20人气: 14
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

EXE-L2200-WL

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

overall L-shaped footprint2200 x 1800 x 760 mm
main work surface width1830 mm
main work surface depth760 mm
fixed left return length1200 mm
fixed left return depth610 mm
desktop thickness25 mm
edge band thickness2 mm
central seated knee clearance height650 mm
central seated knee clearance width700 mm
drawer front panel thickness18 mm
return cabinet door thickness18 mm
cable grommet cutout diameter80 mm
metal edge trim thickness1 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

desktop static load capacity91 kg
telescoping drawer slide cycle rating50000 cycles
cabinet door hinge cycle rating80000 cycles
finish abrasion resistance2000 cycles
assembled product net weight113 kg
recommended maximum user load136 kg
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

desktop core panel25mm E1-grade engineered particleboard core
desktop surface finishDark walnut grain thermofused melamine laminate
return pedestal surface finishMatte light taupe/off-white thermofused melamine laminate
drawer glide hardwareCold-rolled steel three-section telescoping ball-bearing slides
cabinet door hardwareConcealed soft-close steel hinges with metal pull handle
perimeter edge trim1mm brushed silver metal decorative trim
drawer accent trim1mm light-colored inlay strips separating drawer fronts
return cabinet door detailVertical slat decorative groove detail on cabinet front face
base support plinthEngineered wood leveler plinth with matte laminate finish
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

main front storageThree fully extendable horizontal drawers for office supplies and document storage
left return storageEnclosed single-door cabinet for large office item and CPU storage
cable managementRecessed desktop cable grommet with under-desk routing space for power/data cords
drawer operationFull-extension ball-bearing glides allow 100% drawer access without tipping
storage organizationLower drawer sized for legal/letter size hanging file folder storage
surface stabilityFixed pedestal support eliminates wobble during writing or typing tasks
assembly configurationKnock-down assembly with pre-drilled panels for on-site installation
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

executive private officePrimary use for senior manager/executive seated office work, document storage and meetings
home office large studySuitable for premium home workspaces requiring dedicated storage and large work surface
corporate manager workspaceAppropriate for department head offices in mid-to-large corporate facilities
recommended pairingMatch with high-back executive leather office chair and matching wall storage bookcase
minimum room size requirement3600 x 3000 mm clearance space required for full L-shape access and chair movement
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office work tables - Part 1: Dimensions, applicable for desktop height and clearance compliance
EN 527-2:2016Office work tables - Part 2: Mechanical safety requirements, applicable for load and stability testing
EN 12521:2015Furniture - Strength, durability and safety for domestic tables, applicable for surface wear verification
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Standard for desk products, applicable for static load and cycle testing requirements
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable for structural stability verification
GB/T 3327-2016Performance test methods for desks and tables, applicable for load and durability testing
GB 18584-2001Limit of formaldehyde emission for wooden furniture, applicable for core panel emission limits
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for structural stability verification;
2. GB/T 3327-2016:Performance test methods for desks and tables, applicable for load and durability testing;
3. GB 18584-2001:Limit of formaldehyde emission for wooden furniture, applicable for core panel emission limits;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · EXE-L2200-WL

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · EXE-L2200-WL

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EXE-L2200-WL打开导出工具

页面快速操作

发布采购询价

产品描述

The Two-Tone L-Shaped Executive Office Desk with Left Storage Return, model EXE-L2200-WL, is an unbranded executive desk designed for professional workspace use. Its visual design features a distinct two-tone finish: the main work surface carries a dark walnut grain thermofused melamine laminate, while the fixed left return pedestal uses a matte light taupe and off-white thermofused melamine laminate. Brushed silver metal decorative trim lines the desktop perimeter, complemented by light-colored inlay strips separating drawer fronts, and vertical slat decorative grooves on the return cabinet face for subtle textural detail. The fixed L-shaped layout rests on a matte laminate engineered wood leveler plinth, with fixed pedestal supports that eliminate wobble during writing or typing tasks. Constructed with a 25mm E1-grade engineered particleboard core, the desk’s 25mm thick desktop is finished with durable thermofused laminate, edged with 2mm thick edge banding and 1mm brushed silver metal trim. Storage components use cold-rolled steel three-section telescoping ball-bearing drawer slides rated for 50000 open-close cycles, and concealed soft-close steel hinges with metal pull handles rated for 80000 cycles. The abrasion-resistant finish withstands 2000 abrasion cycles, the desktop supports a 91kg static load, with a 150kg uniformly distributed top load reference, and the unit supports a maximum recommended user load of 136kg. The main work surface spans 1830mm wide by 760mm deep, while the 1200mm long by 610mm deep fixed left return offers integrated storage: three fully extendable horizontal drawers, including a lower drawer sized for legal and letter size hanging file folders, provide full 100% access without tipping, alongside an enclosed single-door cabinet that holds large office items and CPU towers. A recessed desktop cable grommet with under-desk routing space organizes power and data cords, and 650mm central seated knee clearance supports comfortable seated use. This desk is suited for executive private offices for senior leader work, document storage and small meetings, large premium home studies, and department head workspaces in mid-to-large corporate facilities. It pairs ideally with high-back executive leather office chairs and matching wall storage bookcases, and requires 3600 x 3000mm of clear floor space for full access and chair movement. Procurement teams should note the unit ships knock-down with pre-drilled panels for on-site assembly, requiring 40 minutes of assembly time per set. It is packaged across multiple cartons with a total packaged gross weight of 180kg and 1m³ total packaging volume, with the main top and return pedestal packed separately. The assembled unit has a net weight of 113kg, with an overall L-shaped footprint of 2200 x 1800 x 760mm.
