Modern L-Shaped Executive Office Desk with Integrated Side Return Storage Specifications

EXEC-L2400-WAL-DGR

代码:FG88AAV1
获取供应商报价
2026-08-26 17:59人气: 22
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

EXEC-L2400-WAL-DGR

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions2400 x 1800 x 760 mm
Main worktop thickness50 mm
Edge band thickness2 mm
Knee clearance height under main top660 mm
Knee clearance width under main top1600 mm
Side return worktop depth800 mm
Cable grommet diameter80 mm
Drawer front panel thickness25 mm
Support panel wall thickness36 mm
Rounded edge radius30 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total product net weight160 kg
Main worktop static load capacity150 kg
Full-extension drawer slide load rating45 kg
Drawer slide cycle durability50000 cycles
Recommended user weight capacity136 kg
Finish abrasion resistance2000 cycles
Standard warranty period60 months
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Core substrateENF-grade high-density fiberboard
Main work surface finish0.6mm walnut wood veneer with matte lacquer topcoat
Storage panel finishMatte dark gray polyurethane baked lacquer
Edge treatmentPUR hot-melt sealed ABS edge banding
Decorative accentsBrushed champagne metal trim
Internal support structure25mm x 50mm square steel load-bearing beams
Drawer hardwareCold-rolled steel full-extension ball-bearing slides
Grommet insertsABS plastic cable management grommets
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
Primary Connector SpecificationReference M6-M8 with at least 2 fixing points per main support
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Cable management systemDual desktop grommets with under-desk cable routing channel
Storage configurationThree integrated drawers plus enclosed return storage compartment
Edge safety designSoft bullnose rounded edges on all worktop corners
Support structureFloor-standing panel legs with integrated return pedestal base
Work surface layoutDual-height work zone with raised central device platform
Drawer operationRecessed integrated pull handles with soft-close damper mechanism
Orientation configurationLeft-side fixed return credenza layout
Surface protectionStain, heat and scratch-resistant lacquer finish
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Private executive officePrimary use for C-suite and senior management individual workspaces
Corporate boardroom adjunct spaceSecondary use for small in-office meetings adjacent to conference rooms
Professional firm partner officeSuitable for law, finance and consulting firm partner workspaces
Commercial project furnishingApplicable for new office construction and renovation bulk procurement
Matching office suite configurationPairs with high-back executive chairs and background storage credenzas
Seated work use caseOptimized for 760 mm standard seated office working height
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office worktables – Safety and strength requirements
EN 527-2:2016Office worktables – Safety, strength and durability requirements
EN 13722:2004Office furniture – Storage units – Requirements and test methods
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk Products – Performance and safety standard
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden office furniture
GB/T 3327-2023Performance test methods for office desks and tables
GB 18580-2017Formaldehyde emission limits for wood-based panels
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden office furniture;
2. GB/T 3327-2023:Performance test methods for office desks and tables;
3. GB 18580-2017:Formaldehyde emission limits for wood-based panels;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · EXEC-L2400-WAL-DGR

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · EXEC-L2400-WAL-DGR

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EXEC-L2400-WAL-DGR打开导出工具

页面快速操作

发布采购询价

产品描述

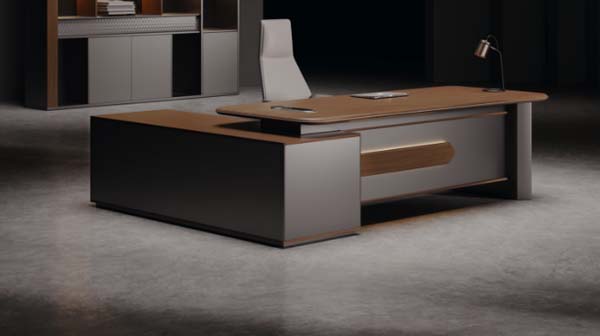

This unbranded modern L-shaped executive office desk, model EXEC-L2400-WAL-DGR, delivers a streamlined, professional workstation solution anchored by a fixed left-side return credenza layout. Its visual profile balances warm walnut wood tones with understated dark gray finishes and subtle metallic accents: the 50mm thick main worktop features a 0.6mm walnut veneer with a matte lacquer topcoat, while storage panels are finished in matte dark gray polyurethane baked lacquer, accented by brushed champagne metal trim. All worktop corners use soft bullnose rounded edges for a polished, safe appearance, with PUR hot-melt sealed 2mm ABS edge banding creating clean, durable seams across all surfaces. The layout includes a dual-height work zone with a raised central device platform, supported by floor-standing panel legs and an integrated return pedestal base, with 660mm of knee clearance height and 1600mm of knee clearance width under the main worktop, and an 800mm deep side return worktop set to the standard 760mm seated office working height. Constructed on an ENF-grade high-density fiberboard core with 25mm x 50mm square steel internal load-bearing beams, the desk supports a 150kg static load on the main worktop, with a 160kg total net weight for lasting stability. Three integrated full-extension drawers run on cold-rolled steel ball-bearing slides rated for 45kg load capacity and 50,000 open-close cycles, fitted with recessed integrated pull handles and soft-close dampers, paired with an enclosed return storage compartment for organized stowage. A purpose-built cable management system uses dual 80mm ABS plastic desktop grommets connected to an under-desk routing channel to keep work surfaces uncluttered, while the 2000-cycle abrasion-resistant finish stands up to regular daily use. This desk is sized for private C-suite and senior management offices, professional firm partner workspaces in law, finance, and consulting, and as an adjunct workspace adjacent to corporate boardrooms for small in-office meetings. It pairs seamlessly with high-back executive chairs and matching background storage credenzas, and is suited for both individual installation and bulk procurement for new office construction or renovation projects. Procurement teams should note the unit ships across 2 cartons (main top and return/pedestal) with a total packaged gross weight of 180kg and 1 cubic meter packaging volume, requires 40 minutes of assembly per set, and includes a 60-month standard warranty, with a recommended user weight capacity of 136kg for seated use.
