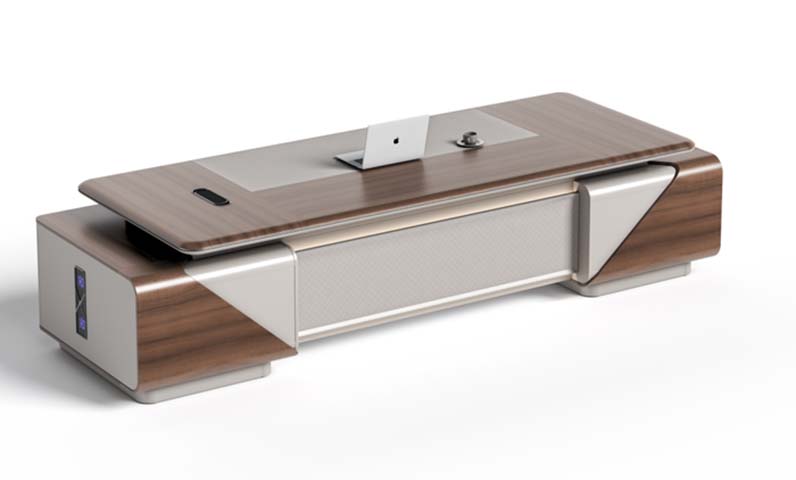

商品供应商Smart Height-Adjustable Executive Desk with Integrated Control Panel and Cable Management，Walnut-grain veneer or high-pressure laminate over an engineered wood core; exact substrate requires supplier BOM confirmation
可联系供应商获取生产周期与报价。
PRODUCT MODULE 01 / 06
基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源：工厂资料结构化字段，最终以实测值为准
| 产品外部尺寸（宽 × 深 × 高） | 2400 × 1000 × 1200 mm | |
|---|---|---|
| Overall adjustable dimensions | 2400 x 1000 x 1200 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
PRODUCT MODULE 02 / 06
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源：产品性能数据，采购前请核对具体测试口径
| Suggested safe lifting load | 120 kg | |
|---|---|---|
| Static desktop load | 180 kg | |
| Suggested user weight and equipment capacity | 150 kg | |
| Net weight reference | 145 kg | |
| Lifting speed | 38 mm/s | |
| Motor duty cycle | 2 minutes on and 18 minutes off | |
| Height adjustment cycles | 10,000 cycles | |
| Storage pedestal shelf load | 25 kg per shelf | |
| Power input | 240V AC, 50/60 Hz | |
| Operational noise | 55 dB |
PRODUCT MODULE 03 / 06
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源：以工厂材质清单与验货报告为准
| Work surface | Walnut-grain veneer or high-pressure laminate over an engineered wood core; exact substrate requires supplier BOM confirmation | |
|---|---|---|
| Side cabinet panels | Light taupe painted MDF or particleboard panels with softened radius corners | |
| Central modesty panel | Textured taupe composite or fabric-backed panel set within a metal frame | |
| Structural trim | Satin champagne-anodized aluminum or powder-coated steel edge and channel trim | |
| Lifting hardware | Dual telescopic steel lifting columns concealed behind the end supports and modesty panel | |
| Cable management cover | Matte black plastic or metal grommet with hinged cover and brush insert |
PRODUCT MODULE 04 / 06
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源：功能配置参数，以供应商正式规格为准
| Electric height adjustment | Dual-column lifting system moves the complete top from 720 mm to 1200 mm with a 480 mm stroke | |
|---|---|---|
| Control and memory | Four-position memory controller with LED height readout on the left end panel | |
| Top-mounted device hub | Flush center plate supports tablet docking, rotary control, or retractable connectivity port | |
| Cable routing | Desktop grommet, rear channel, and modesty-panel cavity route cables away from the knee opening |
PRODUCT MODULE 05 / 06
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源：外贸报价与装柜测算参考
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
PRODUCT MODULE 06 / 06
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源：依据产品结构与品类整理的推荐应用场景
| Executive office | Suits a 2400 mm private-office desk where sit-stand work, concealed storage, and device connectivity are required in one installation | |
|---|---|---|
| Boardroom or management workstation | Supports laptop, video-call device, documents, and meeting controls without a separate conference credenza |
STANDARD S1
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
该市场暂无标准数据。
STANDARD S3
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
该市场暂无标准数据。
招标文件标准化描述文本
本产品须满足以下技术参数要求： 1. 技术标准与检测报告由供应商在投标或采购确认阶段提供； 最终交付参数、检测报告和验收标准以双方采购合同为准。
