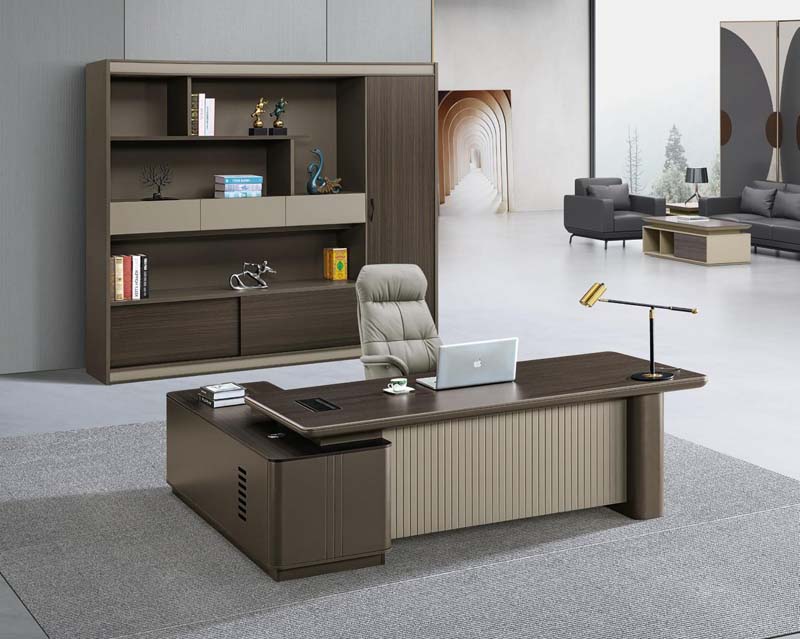

商品供应商Two-Tone Fluted Front L-Shaped Executive Office Desk with Left Storage Return,MDF
可联系供应商获取生产周期与报价。
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录,发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall assembled dimensions | 2400 x 1800 x 760 mm | |
|---|---|---|
| Main worktop depth | 900 mm | |
| Side return width | 1200 mm | |
| Worktop thickness | 50 mm | |
| Knee clearance height | 620 mm | |
| Knee clearance width | 1600 mm | |
| Cylindrical support leg diameter | 160 mm | |
| Fluted modesty panel height | 600 mm | |
| Side return cabinet height | 620 mm | |
| Cable grommet opening size | 80 mm | |
| CPU ventilation slot length | 150 mm | |
| Worktop edge band thickness | 2 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Desktop static load capacity | 150 kg | |
|---|---|---|
| Drawer slide load rating | 45 kg | |
| Net product weight | 135 kg | |
| Recommended user count | 1 | |
| Drawer slide cycle rating | 50000 cycles | |
| Door hinge cycle rating | 80000 cycles | |
| Laminate surface abrasion resistance | 2000 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Worktop substrate | 25 mm thick E1 grade MDF with dark walnut woodgrain laminate | |
|---|---|---|
| Fluted modesty panel | 18 mm thick MDF with light taupe matte laminate, vertical fluted detailing | |
| Side return cabinet carcass | 18 mm thick particleboard with matching dark walnut laminate | |
| Right support leg | Powder-coated steel cylindrical column, 1.5 mm wall thickness | |
| Edge banding | 2 mm thick PVC edge banding with rounded profile | |
| Drawer slides | Cold-rolled steel ball-bearing full-extension slides | |
| Cabinet hinges | Cold-rolled steel soft-close concealed hinges | |
| Cable grommet | ABS plastic desk grommet with brush insert | |
| Cabinet base plinth | 1.2 mm thick powder-coated steel leveling plinth | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Left storage return layout | Integrated cabinet with 2 drawers, 1 file compartment, and CPU storage bay with ventilation slits | |
|---|---|---|
| Cable management system | Desktop grommet connected to under-desk cable tray for wire routing | |
| Drawer operation | Full-extension soft-close drawers with integrated lock for secure document storage | |
| File storage compatibility | Hanging file rails supporting letter, A4, and legal size document folders | |
| Leveling adjustment | Adjustable floor glides on cabinet base to compensate for uneven flooring | |
| Work surface access | Rounded front edge profile to reduce forearm pressure during extended work sessions | |
| CPU compartment ventilation | Vertical vent slits on cabinet side to promote airflow for desktop computer towers | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
推荐空间 / 目标用户 / 使用方式
| Executive private office | Primary use for CEO, senior manager, or director private office spaces | |
|---|---|---|
| Manager open-plan office | Suitable for department manager workstations in open office layouts | |
| Home office luxury workspace | Applicable for high-end residential home office setups | |
| Conference side workstation | Usable as a supporting work surface in small meeting rooms | |
| Recommended pairing | Matches high-back executive leather chairs and matching wall bookcases |
欧洲市场准入与化学品要求
| EN 527-1:2011 | Office worktables safety and strength requirements, applicable for commercial office deployment | |
|---|---|---|
| EN 13722:2004 | Office furniture storage units performance and safety requirements for integrated cabinets |
美国及加拿大家具标准
| ANSI/BIFMA X5.5-2021 | Desk products standard for load, durability, and stability performance testing |
|---|
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to desk panel structural performance | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor office use | |
| GB/T 4897.3-2003 | Particleboard specification for furniture-grade structural panel use |
本产品须满足以下技术参数要求: 1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to desk panel structural performance; 2. GB 18580-2017:Formaldehyde emission limits for wood-based panels, required for indoor office use; 3. GB/T 4897.3-2003:Particleboard specification for furniture-grade structural panel use; 最终交付参数、检测报告和验收标准以双方采购合同为准。
