PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	2400 × 2000 × 750 mm
Overall footprint	2400 x 2000 x 750 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Product net weight	165 kg
Distributed desktop static load	80 kg
Single-point desktop load	30 kg
Storage pedestal shelf or compartment load	25 kg per shelf
Recommended user size	1 person
Tabletop distributed-load deflection	3 mm at 80 kg
Drawer or door slide duty rating	50000 open-close cycles
Floor loading	2.9 kPa
Adjustable foot range	10 mm
Top Static Load Reference	150 kg uniformly distributed

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Work surface	Wood-grain high-pressure laminate over 25 mm engineered-wood substrate
Edge protection	Brushed metallic or coated aluminum-alloy edge trim with rounded corners
Storage cabinet front	Smooth light-gray painted MDF or particleboard panels
End panel	Dark charcoal painted panel with a rectangular ventilation grille
Base plinth	Rounded painted composite panel with matching metallic lower trim
Cable hardware	Steel or aluminum channel with a removable brush or sliding cover

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

L-shaped workstation layout	Provides a 2200 mm main task surface and a 1500 mm return for meetings, printing or document review
Integrated cable management	A 600 mm desktop slot routes power, HDMI and network cables into the enclosed base
Enclosed storage support	The long floor-standing base supports the top and provides concealed cabinet or drawer storage
Leveling and installation	Cabinet-style support minimizes leg interference and should use concealed adjustable glides for uneven floors

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Total gross weight	185 kg
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Executive office	Suits a private manager office where the main surface handles computer work and the return supports meetings or documents
Director or administration room	Works for paperwork, laptop use, guest consultation and concealed office storage

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1 office desk safety and dimensions	Applicable to seated work-surface height, strength, stability and safety requirements
EN 527-2 mechanical safety requirements	Applicable to structural strength, durability and stability tests for office desks

STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.5

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324 dimensional and structural acceptance	Applicable to wooden office furniture dimensions, workmanship, stability and inspection
GB/T 3325 metallic furniture coating	Applicable if the metal trim and steel frame require coating adhesion and appearance checks
GB 18580 formaldehyde emission	Useful acceptance limit for engineered-wood boards in the desktop and cabinet substrate
GB/T 10357 furniture strength and durability	Applicable to desk static-load, stability and durability testing

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. GB/T 3324 dimensional and structural acceptance：Applicable to wooden office furniture dimensions, workmanship, stability and inspection；
2. GB/T 3325 metallic furniture coating：Applicable if the metal trim and steel frame require coating adhesion and appearance checks；
3. GB 18580 formaldehyde emission：Useful acceptance limit for engineered-wood boards in the desktop and cabinet substrate；
4. GB/T 10357 furniture strength and durability：Applicable to desk static-load, stability and durability testing；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · EDU-L2400-EXEC-PANEL

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · EDU-L2400-EXEC-PANEL

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EDU-L2400-EXEC-PANEL打开导出工具

页面快速操作

发布采购询价

产品描述

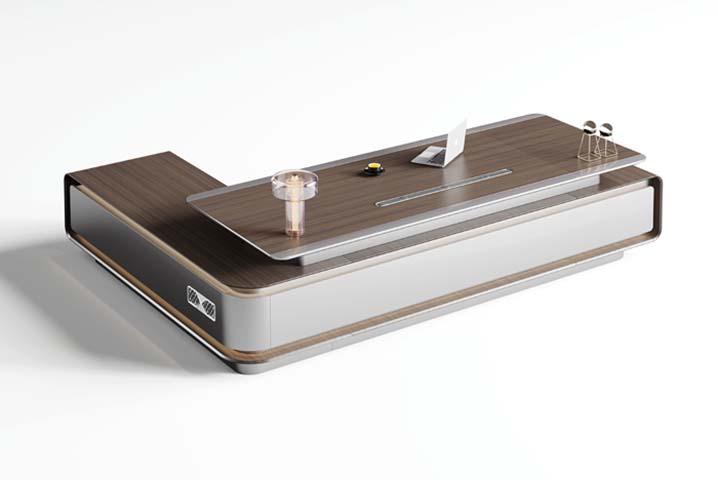

The EDU-L2400-EXEC-PANEL is an unbranded L-shaped executive office desk designed as a complete workstation rather than a simple table. Its form combines a long main task surface with a side return, giving one user a clear primary work zone and a secondary area for meetings, document review, printing, or consultation. The overall footprint is 2400 x 2000 x 750 mm, with a 2200 mm main task surface and a 1500 mm return. A 50 mm finished top and rounded metallic edge treatment give the desk a substantial executive profile, while the enclosed floor-standing pedestal base creates a structured, panel-based appearance with concealed storage. Construction pairs a wood-grain high-pressure laminate work surface with a 25 mm engineered-wood substrate. The storage fronts use smooth light-gray painted MDF or particleboard panels, contrasted by a dark charcoal end panel with a rectangular ventilation grille. A rounded painted composite plinth and matching metallic lower trim visually tie the base to the brushed metallic or coated aluminum-alloy edge protection on the work surface. The main support section is 80 mm with a 2 mm metal wall, and the desk has a net weight of 165 kg. The integrated storage base supports the top while reducing leg interference compared with conventional separate legs. It provides enclosed cabinet or drawer space for office materials, with each shelf or compartment rated for 25 kg. The desktop is rated for an 80 kg distributed static load, a 30 kg single-point load, and shows 3 mm deflection at the distributed-load rating. Drawer or door slides are rated for 50000 open-close cycles. Cable organization is built into the layout. A 600 mm desktop slot accepts power, HDMI, and network cables and directs them into the enclosed base through an 80 mm opening. The steel or aluminum channel includes a removable brush or sliding cover, and the cable tray provides 120 mm of depth. These features help keep a monitor, laptop, peripherals, and meeting connections visually tidy. The desk is well suited to private manager offices, director rooms, and administration spaces where focused computer work, paperwork, and guest discussion occur in one location. The 680 mm high and 900 mm wide knee clearance per main seat supports single-user use, while the return adds practical side space without requiring a separate meeting table. Procurement planning should account for a substantial two-part furniture installation. Reference logistics list one set across two cartons, with the main top and return or pedestal packed separately, while another packaging reference records 180 kg across four cartons and 1 m³ per set. Total gross weight is listed as 185 kg, and reference assembly time is 40 minutes per set. Buyers should confirm delivery, floor access, leveling provisions, and final packaging configuration before purchase. Concealed adjustable glides are intended for use on uneven floors.

L-Shaped Executive Desk with Integrated Storage Base and Cable Management Specifications
