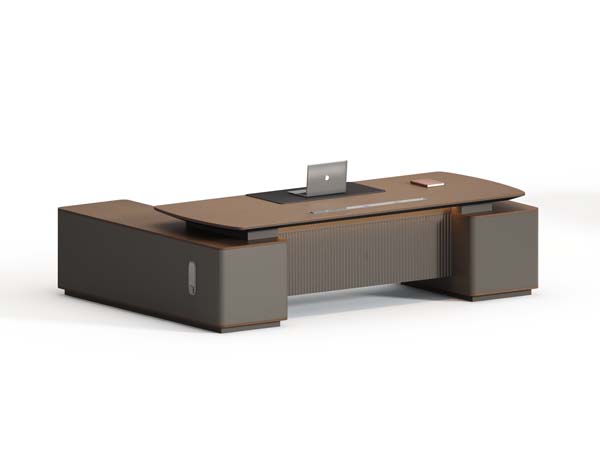

商品供应商Two-Tone Brown-Grey L-Shaped Executive Desk with Fluted Modesty Panel,MDF
可联系供应商获取生产周期与报价。
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录,发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions (main desk + return) | 3200 x 2300 x 760 mm | |
|---|---|---|
| Main work surface depth | 1000 mm | |
| Side return cabinet width | 1200 mm | |
| Seated knee clearance height | 650 mm | |
| Seated knee clearance width | 1600 mm | |
| Desktop panel thickness | 50 mm | |
| Edge band thickness | 2 mm | |
| Left storage cabinet depth | 600 mm | |
| Right support pedestal width | 600 mm | |
| Fluted modesty panel height | 450 mm | |
| Integrated cable grommet diameter | 80 mm | |
| Raised central tech mat area | 800 x 400 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Desktop static load capacity | 150 kg | |
|---|---|---|
| Single drawer slide load rating | 45 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Cabinet door hinge cycle rating | 80000 cycles | |
| Surface abrasion resistance rating | 2000 cycles | |
| Net weight (assembled) | 180 kg | |
| Recommended user weight capacity | 136 kg | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Main desktop | E1 grade MDF core with 0.3mm wood veneer brown finish | |
|---|---|---|
| Cabinet exterior panels | E1 grade particleboard with matte grey thermally fused laminate | |
| Fluted modesty panel | Engineered wood with vertical ribbed texture, matte grey finish | |
| Desk edge trim | 2mm thick PVC edge banding, color-matched to brown top | |
| Drawer slides | Cold-rolled steel ball-bearing full-extension slides | |
| Cabinet hinges | Zinc-alloy concealed soft-close hinges | |
| Cable management grommets | ABS plastic with brush seal, matte grey finish | |
| Leveling feet | Nylon base with steel threaded stem, adjustable 15mm height | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Left side return storage | Enclosed cabinet with locking drawer for document and supply storage | |
|---|---|---|
| Cable management system | Desktop grommet connected to under-desk cable tray for wire routing | |
| Fixed height work surface | Non-adjustable 760mm work height optimized for executive task chairs | |
| Right support pedestal | Enclosed structural support with integrated storage compartment | |
| Central raised tech zone | Recessed black mat area for laptop/monitor placement with integrated power access | |
| Soft-close drawer operation | Drawers close with damped motion to prevent slamming and reduce noise | |
| Adjustable leveling feet | Base feet rotate to compensate for uneven office flooring | |
| Rounded desktop edges | Soft radius corners to reduce impact injury and improve visual profile | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
推荐空间 / 目标用户 / 使用方式
| Executive private office | Suited for senior manager/CEO offices, provides dedicated large work and storage space | |
|---|---|---|
| Open-plan management workstation | Works as a premium dedicated station for department heads in open office layouts | |
| Home office premium setup | Appropriate for high-end residential offices requiring professional storage and work surface | |
| Conference room executive station | Usable as a presenter or meeting lead desk in small executive conference rooms | |
| Recommended seating pairing | Pairs with high-back executive leather office chairs with 720mm fixed seat height | |
| Recommended accessory configuration | Pair with monitor arm, under-desk power strip and filing organizers for full functionality |
欧洲市场准入与化学品要求
| EN 527-1:2011 | Office work tables - Part 1: Dimensions, applicable for ergonomic dimensional checks | |
|---|---|---|
| EN 527-2:2016 | Office work tables - Part 2: Mechanical safety requirements and test methods | |
| EN 13722:2004 | Furniture - Strength and durability requirements for storage units in office furniture |
美国及加拿大家具标准
| ANSI/BIFMA X5.5-2021 | Desk Products - Safety and performance standard for commercial office desks | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage Units - Performance requirements for integrated desk storage pedestals |
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for structural and finishAcceptance | |
|---|---|---|
| GB/T 3327-2016 | Dimensions and tolerances for office desks, applicable for dimensional compliance checks | |
| GB 18584-2001 | Indoor decoration material formaldehyde emission limit for wood furniture | |
| GB/T 4897.3-2003 | Requirements for particleboard used in furniture construction |
本产品须满足以下技术参数要求: 1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for structural and finishAcceptance; 2. GB/T 3327-2016:Dimensions and tolerances for office desks, applicable for dimensional compliance checks; 3. GB 18584-2001:Indoor decoration material formaldehyde emission limit for wood furniture; 4. GB/T 4897.3-2003:Requirements for particleboard used in furniture construction; 最终交付参数、检测报告和验收标准以双方采购合同为准。
