Two-Tone Walnut Off-White Boat-Shaped L-Shaped Executive Desk Specifications

ED-BOAT-2200-WAL-OFW

代码:LHWQ7NV1
获取供应商报价
2026-09-03 11:32人气: 15
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

ED-BOAT-2200-WAL-OFW

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall footprint2200 x 1800 x 760 mm
Main desktop thickness50 mm
Side return storage depth600 mm
Knee clearance height under desktop650 mm
Knee clearance width for user800 mm
Modesty panel height350 mm
Edge band thickness2 mm
Tapered pedestal base width (floor contact)600 mm
Right storage cabinet height600 mm
Cable grommet diameter80 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Desktop static uniform load capacity180 kg
Drawer slide open/close cycle rating50000 cycles
Door hinge open/close cycle rating80000 cycles
Net weight (desk assembly)180 kg
Recommended user weight capacity150 kg
Surface abrasion resistance rating2000 cycles
Product structural warranty10 years
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Main work surfaceWalnut woodgrain veneer or melamine faced MDF substrate
Edge trimOff-white solid PVC or solid wood edge banding
Left tapered support pedestalMatte off-white powder-coated steel frame with MDF infill panel
Curved modesty panelWalnut woodgrain MDF panel with matching finish to top
Right return storage cabinetMatte off-white laminated MDF cabinet body with interior shelves
Storage hardwareZinc alloy recessed pull handles with matte silver finish
Structural connection hardwareCarbon steel dowels and cam-lock fasteners
Feet padsAdjustable HDPE leveling feet under all base contact points
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
Primary Connector SpecificationReference M6-M8 with at least 2 fixing points per main support
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Integrated side return storageFixed right-side cabinet with open shelf and enclosed compartment for office supplies
Suspended modesty panelFixed curved front panel to conceal user legs without restricting knee movement
Cable management accessDesktop grommets with under-desk cable routing channel to hide power and data cords
Leveling adjustmentRotating adjustable feet to compensate for uneven carpeted or hard office floors
Work surface layoutBoat-shaped curved front edge to provide extended elbow room for executive users
Storage accessibilityFront-facing access to modesty panel compartment and side cabinet from seated position
Assembly configurationKnock-down flat-pack design requiring on-site assembly of base, top and storage units
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Private executive officeSuitable for director, manager or C-suite private workspaces with floor area 25sqm
Corporate headquarter environmentsDesigned for formal modern office interiors with matching executive seating and storage
Work configurationSupports laptop, dual monitors, desk lamp and document storage for daily executive work
Carpeted or hard floor installationAdjustable feet accommodate commercial low-pile carpet or hard tile/wood office flooring
Recommended pairingMatches high-back leather executive office chairs and wall-mounted office shelving units
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office work tables - Part 1: Dimensions, applicable for ergonomic work surface and clearance
EN 527-2:2002+A1:2019Office work tables - Part 2: Mechanical safety requirements, applicable for structural stability
EN 13722:2004Office furniture - Storage units, applicable for cabinet and drawer performance
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk Products, applicable for load, durability and stability testing
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable for structural and finish quality
GB/T 3327-2023Office desks, applicable for dimensional, load and stability performance
GB 18584-2001Indoor decorating and refurbishing materials - limit of harmful substances of wood based furniture
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable for structural and finish quality;
2. GB/T 3327-2023:Office desks, applicable for dimensional, load and stability performance;
3. GB 18584-2001:Indoor decorating and refurbishing materials - limit of harmful substances of wood based furniture;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · ED-BOAT-2200-WAL-OFW

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · ED-BOAT-2200-WAL-OFW

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · ED-BOAT-2200-WAL-OFW打开导出工具

页面快速操作

发布采购询价

产品描述

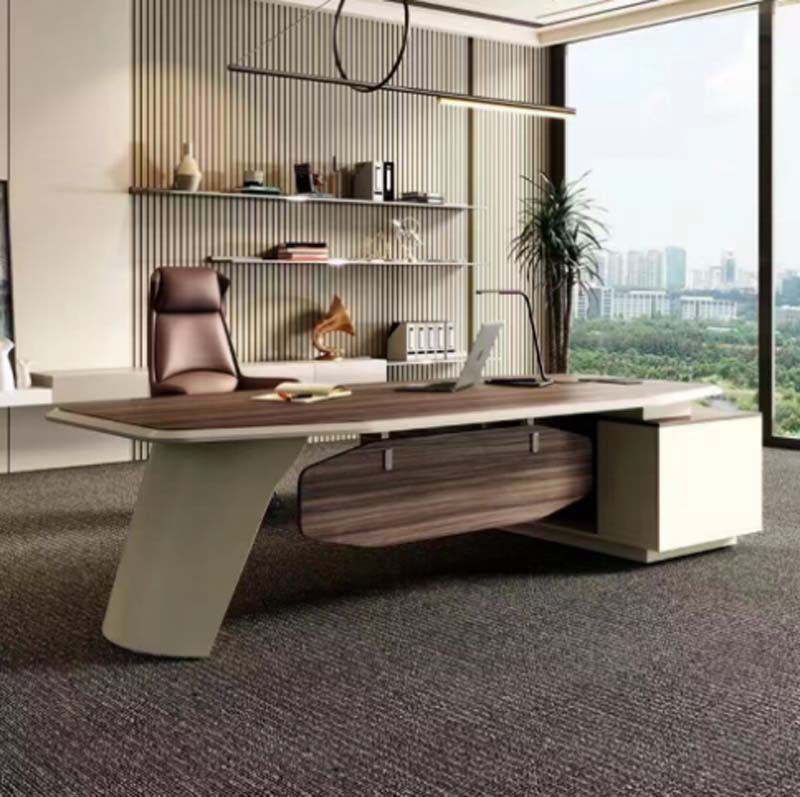

The KANAITE Two-Tone Walnut Off-White Boat-Shaped L-Shaped Executive Desk, model ED-BOAT-2200-WAL-OFW, presents a polished modern executive aesthetic defined by its distinctive boat-shaped curved front work surface and L-shaped layout. The design pairs warm walnut woodgrain finishes across the main desktop and curved suspended modesty panel with matte off-white accents on the left tapered support pedestal and right-side return storage cabinet, creating a balanced, professional visual profile suited to formal work environments. Constructed with an MDF substrate across core panel components, the desk features a 50mm thick main work surface finished with walnut woodgrain veneer or melamine, trimmed with 2mm thick off-white solid PVC or solid wood edge banding. The left support uses a matte off-white powder-coated steel frame with MDF infill, while the right return storage cabinet is built from matte off-white laminated MDF with integrated interior shelving. Hardware includes matte silver zinc alloy recessed pull handles, carbon steel dowels and cam-lock fasteners for structural connections, and adjustable HDPE leveling feet at all base contact points. The assembly uses a knock-down flat-pack format requiring on-site installation of the base, worktop, and storage units. Functional design details prioritize executive user comfort and practicality. The curved front desktop edge delivers extended elbow room, while the fixed suspended modesty panel conceals the user’s legs without impeding knee movement, offering comfortable clearance for seated use. The fixed right-side return cabinet combines open shelving and enclosed compartments to hold office supplies, with full front-facing access available from a seated position. Desktop grommets paired with an under-desk cable routing channel keep power and data cords organized out of sight, while rotating adjustable feet compensate for uneven carpeted or hard flooring surfaces to ensure a stable work base. This executive desk is suited for private director, manager, or C-suite workspaces, as well as formal corporate headquarters interiors designed with a modern aesthetic. It supports daily work configurations including laptop use, dual monitor setups, desk lamp placement, and document storage, and pairs seamlessly with high-back leather executive chairs and matching wall-mounted office shelving for a cohesive workspace layout. For procurement planning, note the desk ships in separate cartons, with a documented reference assembly time per unit. The product carries a 10-year structural warranty, with rated performance for static desktop load, hardware cycle durability, and surface abrasion resistance to support long-term commercial use. Buyers should confirm available floor space to accommodate the desk’s footprint, and account for on-site assembly requirements when planning installation schedules for commercial fit-outs or residential home office upgrades.
