PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

数据来源：工厂资料结构化字段，最终以实测值为准

产品外部尺寸（宽 × 深 × 高）	2400 × 1900 × 760 mm
Finished Top Thickness	50 mm
Effective Knee Clearance	680 mm high and 900 mm wide per main seat
Leg / Support Section	80 mm main section with 2 mm metal wall
Cable Opening Size	80 mm diameter; cable tray depth 120 mm

PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

数据来源：产品性能数据，采购前请核对具体测试口径

Suggested user capacity	1 person
Desktop distributed load	80 kg
Pedestal top load	40 kg
Drawer or shelf load per level	25 kg
Desktop point-load resistance	30 kg
Net weight	135 kg
Recommended seated monitor width	800 mm
Recommended knee-space width	850 mm
Warranty target	5 years
Color options	2 finishes

PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

数据来源：以工厂材质清单与验货报告为准

Desktop panel	Wood-composite panel with dark warm-brown laminate or veneered surface
Edge treatment	Soft-formed rounded edge with contrasting dark protective banding
Storage carcass	Matte charcoal wood-composite panels with sealed exposed edges
Modesty and support panels	Rigid vertical wood-composite panels with charcoal matte finish
Hardware	Integrated metal or hard-plastic cable grommet and rectangular access cover
Power/data module housing	Flush rectangular desk module with metallic or dark hard cover

PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

数据来源：功能配置参数，以供应商正式规格为准

Cable routing	Two desktop access points route laptop and monitor cables into the under-desk cavity
Power and data provisioning	Rectangular module is positioned for power, USB, or data sockets; exact socket count requires electrical schedule
Storage pedestal	Left floor-standing cabinet provides file or personal storage and supports the return top
Seated work zone	Open knee bay between left pedestal and right panel accommodates an executive chair

PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

数据来源：外贸报价与装柜测算参考

Main carton dimensions	2100 x 980 x 160 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	Main top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight	180 kg/set in 4 cartons
Reference Packaging Volume	1 m³/set

PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

数据来源：依据产品结构与品类整理的推荐应用场景

Executive office	Suitable for a manager or director office requiring laptop work, meeting-side storage, and concealed cable management
Private consultation workspace	The left return supports documents or a second device while the main top retains a clear seated work zone

STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

该市场暂无标准数据。

STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

该市场暂无标准数据。

招标文件标准化描述文本

本产品须满足以下技术参数要求：
1. 技术标准与检测报告由供应商在投标或采购确认阶段提供；
最终交付参数、检测报告和验收标准以双方采购合同为准。

GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告，可选择公制或英制单位。

PDF · ED-L2400-EXEC-CM

完整参数 Excel

导出全部商品信息与参数模块，文件内容统一使用英文。

XLSX · ED-L2400-EXEC-CM

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段，可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · ED-L2400-EXEC-CM打开导出工具

页面快速操作

发布采购询价

产品描述

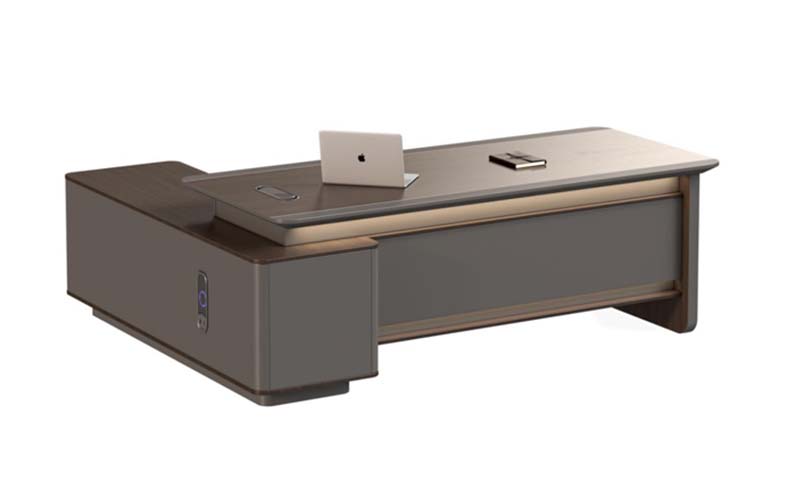

The ED-L2400-EXEC-CM is an unbranded L-shaped executive desk designed for private offices where a substantial work surface, built-in storage, and orderly cable management are required. Its layout combines a main desk with a left return supported by a floor-standing storage pedestal, leaving an open knee bay between the pedestal and the right support panel for an executive chair. The pedestal occupies the left side and provides file or personal storage, while the return surface can hold documents, meeting materials, or a second device without encroaching on the primary seated work zone. The desk is configured for one user and is suited to a monitor width of 800 mm in the recommended seated arrangement. Visually, the workstation has a modern executive appearance defined by a dark, warm-brown wood-composite desktop with a matte laminate or veneered surface. The storage cabinet and vertical modesty and support panels use charcoal matte wood-composite construction, with warm trim adding contrast to the darker body. Edges are soft formed and rounded, with dark protective banding on the desktop and sealed exposed edges on the storage carcass, producing a refined but practical office aesthetic. Construction is based on panel furniture with a 50 mm thick finished top. The main support section measures 80 mm and uses a 2 mm metal wall, while the rigid vertical panels provide support beneath the top and around the knee opening. Main-seat knee clearance is 680 mm high and 900 mm wide. The desk has a net weight of 135 kg, with rated distributed loading of 80 kg on the desktop, 40 kg on the pedestal top, and 25 kg per drawer or shelf level. Its desktop point-load resistance is rated at 30 kg. Cable management is integrated into the working surface. Two desktop access points guide laptop and monitor cables into the under-desk cavity, where an 80 mm diameter opening and a cable tray with 120 mm depth help contain leads. Metal or hard-plastic grommets, rectangular access covers, and metal cable covers maintain a clean finish. A flush rectangular desk module is positioned to house power, USB, or data sockets, although the exact socket configuration should be confirmed through the project electrical schedule. This desk is appropriate for manager or director offices, private consultation rooms, and residential studies that call for an executive-style workstation with storage. Procurement teams should plan for delivery as a multi-carton set, confirm packaging details against the selected shipment, allow 40 minutes for assembly reference, and coordinate socket requirements separately. Access planning should account for the large main top carton and the separately packed return and pedestal components.

L-Shaped Executive Desk with Left Storage Pedestal and Integrated Cable Ports Specifications
