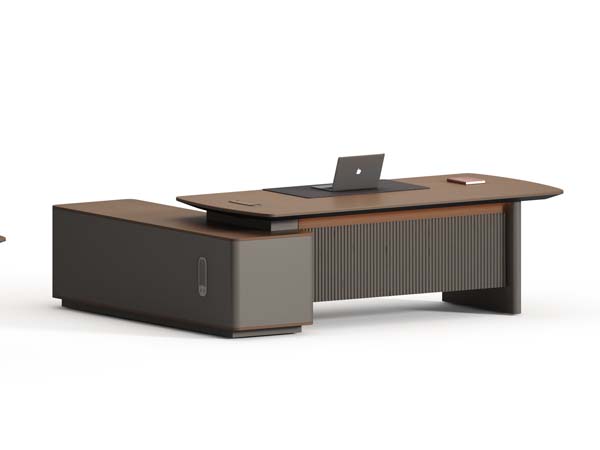

L-Shaped Curved Executive Office Desk with Fluted Modesty Panel and Side Storage Return Specifications

EXD-L2200-FLUTED-WG

代码:SPDPEAV1
获取供应商报价
2026-08-31 14:13人气: 21
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

EXD-L2200-FLUTED-WG

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions2200 x 1800 x 760 mm
Main worktop depth900 mm
Side return cabinet dimensions1500 x 600 x 650 mm
Worktop thickness25 mm
Knee clearance height680 mm
Knee clearance width1200 mm
Edge band thickness2 mm
Support leg wall thickness2 mm
Fluted modesty panel height400 mm
Cable grommet diameter80 mm
Plinth base height30 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Desktop static load capacity136 kg
Drawer slide load rating45 kg
Drawer slide cycle rating50000 cycles
Hinge cycle rating80000 cycles
Unit net weight165 kg
Recommended user capacity1 person
Surface scratch resistance2000 cycles
Standard warranty5 years
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Worktop substrate25mm high-density MDF core
Worktop finishWalnut wood veneer with matte clear lacquer
Return cabinet panels18mm melamine-faced chipboard, dark grey matte finish
Front modesty panel15mm fluted/ribbed MDF, dark grey finish
Right support legPowder-coated dark grey steel, U-shaped profile
Return cabinet baseLow-profile engineered wood plinth with metal trim
Drawer hardwareCold-rolled steel ball-bearing slides, recessed metal handles
Edge trim2mm PVC edge banding matching worktop finish
Desk mat inlayBlack matte leatherette writing surface
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Fixed L-shaped layoutPermanent attached left return for extended work and storage, no reversible configuration
Enclosed storage returnFull-height cabinet with lockable file drawers and supply storage, recessed integrated handles
Cable managementIntegrated cable grommets and under-desk cable tray to route power and data cords
Modesty panel coverageVertical fluted front panel blocks under-desk view from front while maintaining open knee space
Curved worktop edgeRounded bullnose front edges reduce contact pressure and provide ergonomic arm support
Leveling adjustmentHidden adjustable glides on plinth and leg base correct for uneven office floors
Integrated writing surfaceRecessed leatherette desk mat zone for writing and laptop placement
Lockable storageCentral locking system secures all cabinet drawers for confidential document storage
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Private executive officeSized for CEO, director or senior manager private workspaces with 3m+ room width
Corporate manager workspaceSuitable for department head offices requiring integrated storage and large work surface
High-end home officePremium finish for luxury residential home offices requiring professional workspace aesthetics
Conference side work areaCan be used as a presenter work surface in large boardrooms for meeting materials
Recommended matching furniturePair with high-back executive office chair, 3-drawer mobile pedestal and adjacent bookcase
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office work tables and desks, safety and dimensional requirements for commercial office use
EN 12521:2015Furniture strength, durability and safety requirements for non-domestic seating-adjacent tables
EN 13986:2004+A1:2015Wood-based panels for structural use in furniture, applicable to substrate performance
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Desk products standard, applicable to structural load, stability and durability testing for office desks
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to desk panel construction and finish quality
GB/T 4897.3-2015Particleboard for furniture use, applicable to cabinet and worktop substrate performance
GB 18580-2017Formaldehyde emission limits for wood-based panels, required for indoor office air quality compliance
GB/T 10357.1-2013Furniture mechanical performance test for tables, applicable to desk structural stability and load testing
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to desk panel construction and finish quality;
2. GB/T 4897.3-2015:Particleboard for furniture use, applicable to cabinet and worktop substrate performance;
3. GB 18580-2017:Formaldehyde emission limits for wood-based panels, required for indoor office air quality compliance;
4. GB/T 10357.1-2013:Furniture mechanical performance test for tables, applicable to desk structural stability and load testing;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · EXD-L2200-FLUTED-WG

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · EXD-L2200-FLUTED-WG

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EXD-L2200-FLUTED-WG打开导出工具

页面快速操作

发布采购询价

产品描述

This L-Shaped Curved Executive Office Desk with Fluted Modesty Panel and Side Storage Return is a professional, fixed-configuration executive workspace solution. Its distinct L-shaped layout features a permanently attached left-side storage return, with no reversible setup option, creating a broad, cohesive work surface anchored by a gently curved bullnose front desk edge that softens the desk’s formal profile. The visual design balances warm walnut-toned work surfaces with dark grey structural elements: the worktop is finished in matte clear lacquered walnut wood veneer, paired with dark grey matte cabinetry, a vertically ribbed fluted dark grey modesty panel spanning the front knee well, a powder-coated dark grey U-shaped steel support leg, and a low-profile engineered wood plinth base trimmed with metal for a polished, modern executive aesthetic. A recessed black matte leatherette inlay sits within the worktop to define a dedicated writing and laptop placement zone. Construction draws on durable, fit-for-purpose materials: the worktop uses a 25mm high-density MDF core finished with matching 2mm PVC edge banding, the return cabinet is built from 18mm melamine-faced chipboard, the fluted modesty panel is formed from 15mm MDF, and storage hardware includes cold-rolled steel ball-bearing drawer slides with recessed integrated metal handles. The desk supports a single user, with open knee space screened from front view by the fluted modesty panel, and hidden adjustable glides on the plinth and support leg to accommodate uneven flooring. Integrated cable management features include desktop grommets and an under-desk cable tray to neatly route power and data cords. The attached return houses an enclosed full-height lockable cabinet with dedicated file drawers and general supply storage to keep work materials accessible but out of sight. This desk is well suited for private executive offices for senior leadership, department head workspaces requiring integrated storage, high-end luxury residential home offices, and as a dedicated presenter work surface in large boardrooms. It pairs seamlessly with high-back executive office chairs, mobile storage pedestals, and adjacent bookcases for a complete workspace setup. Procurement teams should note the unit ships across multiple cartons, requires on-site assembly, and features fixed positioning of the storage return that cannot be reconfigured to suit alternate room layouts, so space planning should account for the fixed L-shaped orientation prior to installation.
