Two-Tone Walnut Beige L-Shaped Executive Office Desk with Fixed Right Return Pedestal Specifications

EXD-L2400-WB-CANT

代码:V4DNACV1
获取供应商报价
2026-09-03 12:23人气: 19
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

EXD-L2400-WB-CANT

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall L-shaped dimensions2400 x 1800 x 760 mm
Main desktop thickness50 mm
Desktop edge band thickness2 mm
Main work surface depth1000 mm
Right return work surface depth600 mm
Seated knee clearance height650 mm
Knee clearance width (central opening)1400 mm
Cantilever support panel thickness38 mm
Right storage pedestal width600 mm
Right storage pedestal depth1800 mm
Cable grommet diameter80 mm
Drawer interior depth (pedestal)500 mm
Finished Top Thickness50 mm
Effective Knee Clearance680 mm high and 900 mm wide per main seat
Leg / Support Section80 mm main section with 2 mm metal wall
Cable Opening Size80 mm diameter; cable tray depth 120 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Desktop static load capacity150 kg
Drawer slide cycle rating50000 cycles
Hinge cycle rating (cabinet doors)100000 cycles
Surface abrasion resistance2000 cycles
Net weight of assembled desk185 kg
Recommended user weight capacity150 kg
Top Static Load Reference150 kg uniformly distributed
Drawer Slide Load / Life45 kg/pair; 50000 cycles
Hinge Opening LifeAcceptance target 80000 cycles
Top Abrasion ReferenceAcceptance target ≥4,000 abrasion cycles or finish-system test
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Main worktop substrate25mm MDF core with walnut wood veneer finish
Beige accent panels18mm MDF with matte beige thermofused laminate finish
Edge banding2mm PVC matching walnut and beige finishes
Cantilever support internal frame1.5mm thick steel reinforcement inside panel
Drawer slidesFull extension soft-close ball bearing steel slides
Cabinet door hingesSoft close 3-way adjustable steel hinges
Cable grommetsABS plastic with brush inserts
Base levelling feetNylon adjustable feet with 15mm adjustment range
Pedestal interior backing3mm hardboard backing panel
Primary Panel Thickness25 mm; load-bearing top may use 40 mm composite build-up
Edge Band Thickness2 mm
Metal Frame Wall Thickness2 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Fixed right return storage pedestalIntegrated enclosed storage with 2 utility drawers and 1 hanging file drawer
Angled cantilever left supportRigid panel support with no front leg, maximizing unobstructed leg room
Desktop cable managementTwo brush grommets routed to under-desk cable tray, hidden from front view
Soft-close drawer operationDrawers close silently and automatically in final 50mm of travel
Fixed seated working height760mm fixed work surface height optimized for ergonomic office chairs
Rounded desktop corner designSoft 50mm radius edges on all worktop corners to reduce impact injury
Levelling foot adjustmentAdjustable feet on all base contact points to compensate for uneven floor surfaces
Concealed hardware designRecessed finger pulls for drawers and doors with no exposed external handles
Cable Management CapacityReference capacity 10power/data cables; tray load 10 kg
Reference Reassembly CountMain joints should support 5controlled assembly cycles
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Package DimensionsMain top 2500× 1050× 350 mm; return/pedestal packed separately
Reference Packaged Gross Weight180 kg/set in 4 cartons
Reference Packaging Volume1 m³/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Private executive officePrimary use for CEO/manager daily work, client meetings, and document processing
Corporate management floorSuitable for senior management suites paired with matching filing cabinets and guest seating
Commercial office spaceDesigned for daily heavy commercial office use with durable wear-resistant surfaces
Recommended pairingMatch with high-back executive leather office chair and 4-door glass display filing cabinet
Room size requirementMinimum 3000 x 3000 mm dedicated office space to accommodate L-shape and guest seating
Floor surface compatibilitySuitable for low-pile carpet and polished hard commercial flooring
Peripheral supportSupports dual monitors, desktop printer, and personal work items on main and return surfaces
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-1:2011Office work tables - dimensions, safety and strength requirements for office desks
EN 15372:2016Furniture - strength, durability and safety for non-domestic office storage
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Standard for desk products - performance and safety requirements for office desks
ANSI/BIFMA X5.9-2019Standard for storage units - performance requirements for office storage pedestals
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to wooden desk construction
GB/T 4897.3-2003Particleboard for furniture use, applicable to engineered wood substrate requirements
GB 18584-2001Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to wooden desk construction;
2. GB/T 4897.3-2003:Particleboard for furniture use, applicable to engineered wood substrate requirements;
3. GB 18584-2001:Indoor decorating and refurbishing materials - limit of harmful substances for wooden furniture;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · EXD-L2400-WB-CANT

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · EXD-L2400-WB-CANT

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · EXD-L2400-WB-CANT打开导出工具

页面快速操作

发布采购询价

产品描述

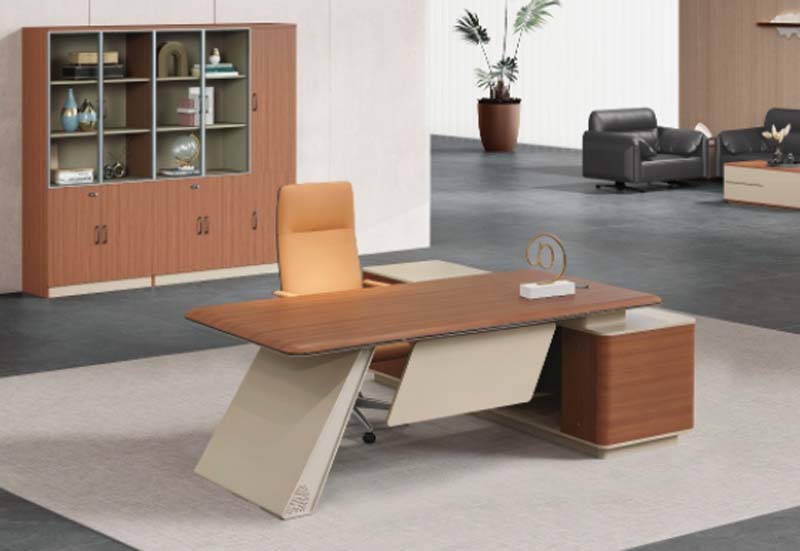

The Two-Tone Walnut Beige L-Shaped Executive Office Desk with Fixed Right Return Pedestal carries a sleek modern executive styling defined by clean angular lines and a coordinated two-tone walnut and beige finish. Its L-shaped layout anchors a generous main work surface paired with a fixed right-side return that integrates an enclosed storage pedestal, while the left side relies on an angled cantilever support panel with no front leg to maintain an open, unobstructed central seating opening. Rounded 50mm radius corners soften all worktop edges, and matching edge banding blends seamlessly with both surface finishes for a cohesive, polished appearance. The desk is constructed for heavy commercial use with durable engineered wood components. The main worktop features an MDF core topped with walnut wood veneer, set atop matte beige MDF accent panels finished with thermofused laminate. Edge banding uses color-matched PVC, and the cantilever support panel incorporates internal steel reinforcement for rigid stability. Hardware includes commercial-grade soft-close full-extension steel drawer slides, 3-way adjustable soft-close steel cabinet hinges, ABS cable grommets with brush inserts, and nylon adjustable levelling feet. The integrated right pedestal holds two utility drawers and one hanging file drawer, with all soft-close mechanisms engaging in the final segment of travel to eliminate slamming. Built-in cable management routes wires through two hidden brush grommets to an under-desk tray, keeping work surfaces clear. The fixed work height is optimized for standard ergonomic office chairs, and rounded corners reduce impact injury risk, while adjustable feet compensate for uneven floor surfaces. This desk is designed for private executive offices, supporting daily work, client meetings, and document processing for senior leadership, and fits seamlessly into corporate management floor suites when paired with complementary guest seating and filing storage. It is rated for daily heavy commercial office use, with wear-resistant surfaces suited to consistent long-term use, and is compatible with both low-pile carpet and polished hard commercial flooring. Installation requires a minimum dedicated office space to accommodate the L-shaped footprint and accompanying guest seating. For procurement, note that the unit ships across multiple cartons, with a straightforward assembly timeline per set, and pairs naturally with high-back executive leather office chairs and glass-front filing cabinets to complete a cohesive executive workspace. The assembled unit carries substantial net weight, so floor load suitability should be confirmed prior to installation.
