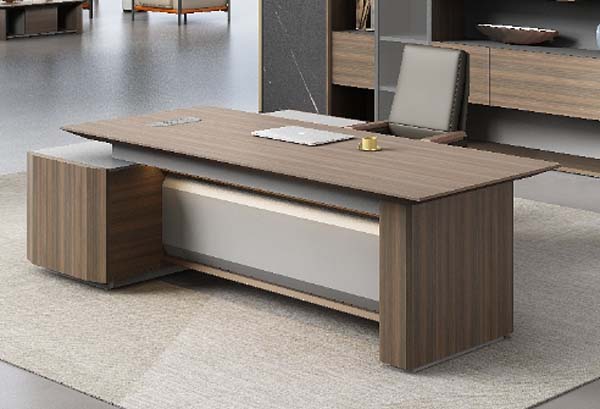

商品供应商L-Shaped Fluted Panel Executive Office Desk,MDF
可联系供应商获取生产周期与报价。
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录,发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions (main desk + left return) | 2400 x 1800 x 760 mm | |
|---|---|---|
| Main work surface depth | 900 mm | |
| Left side return width | 1500 mm | |
| Side return depth | 600 mm | |
| Knee clearance width (central opening) | 800 mm | |
| Knee clearance height (under work surface) | 650 mm | |
| Work surface panel thickness | 50 mm | |
| Modesty panel thickness | 18 mm | |
| Fluted pedestal panel thickness | 25 mm | |
| Edge banding thickness | 2 mm | |
| Desktop cable grommet diameter | 80 mm | |
| Pedestal base height (floor to work surface underside) | 710 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
净重 / 最大承重 / 适用人数 / 耐久性能
| Work surface static load capacity | 150 kg | |
|---|---|---|
| Drawer slide dynamic load rating (if equipped) | 45 kg | |
| Drawer slide cycle rating | 50000 cycles | |
| Cabinet door hinge cycle rating | 80000 cycles | |
| Surface abrasion resistance | 2000 cycles | |
| Net product weight (reference) | 185 kg | |
| Recommended user weight capacity (seated use) | 136 kg | |
| Standard commercial warranty period | 5 years | |
| Available finish color options | 3 | |
| Top Static Load Reference | 150 kg uniformly distributed |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Work surface core | E1 grade high-density MDF panel | |
|---|---|---|
| Work surface finish | 0.6mm walnut wood grain melamine laminate | |
| Vertical pedestal panels | 25mm MDF with vertical fluted walnut veneer finish | |
| Front modesty panel | 18mm MDF with matte light grey laminate finish | |
| Edge trim | 2mm thick impact-resistant ABS edge banding | |
| Structural connecting hardware | Zinc-plated steel cam lock and bolt connectors | |
| Adjustable foot levelers | Nylon base with steel threaded stud | |
| Cable management grommet | ABS plastic flip-top cover | |
| Internal drawer components (return cabinet) | 18mm MDF drawer boxes with steel ball bearing slides | |
| Surface coating treatment | UV-cured lacquer top coat | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| L-shaped work surface layout | Dual-zone layout with primary writing zone and secondary return zone | |
|---|---|---|
| Integrated cable management | Dual flip-top cable grommets on work surface with under-desk routing channel | |
| Enclosed pedestal support design | Full block pedestal bases on right desk end and left return | |
| Return cabinet storage | Left return pedestal includes enclosed swing-door cabinet and two pull-out drawers | |
| Concealed modesty panel design | Full-width front modesty panel blocks under-desk view for privacy | |
| Adjustable floor leveling | Threaded foot levelers at each base corner adjust 15mm vertically | |
| Knock-down assembly configuration | Desk ships flat-packed with pre-drilled panels for on-site assembly | |
| Reversible configuration option | Return can be assembled on left or right side per office layout | |
| Optional drawer locking mechanism | Keyed cam locks installed on return storage drawers | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
推荐空间 / 目标用户 / 使用方式
| Private executive office | Designed for CEO, manager, or director private office spaces | |
|---|---|---|
| Small meeting workspace | Side return accommodates 2 guest seating for impromptu discussions | |
| Corporate headquarters fit-out | Matches modern wood-tone commercial office design palettes | |
| Home executive office | Suitable for high-end residential home office installations | |
| Workstation configuration | Supports desktop computer, dual monitors, telephone, and document organization | |
| Mixed-use office environment | Works for both individual focused work and small guest meetings |
欧洲市场准入与化学品要求
| EN 527-1:2011 | Office work tables safety and strength requirements, applicable to desk load and stability | |
|---|---|---|
| EN 527-2:2016 | Office work tables dimensional safety requirements, applicable to knee clearance dimensions | |
| EN 13722:2004 | Furniture test methods for storage unit strength and durability, applicable to return cabinet |
美国及加拿大家具标准
| ANSI/BIFMA X5.5-2021 | Desk products performance standard, applicable to static load and durability testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units performance standard, applicable to return cabinet drawer and door durability |
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to panel desk structural performance | |
|---|---|---|
| GB 18584-2001 | Formaldehyde emission limit for interior decoration wooden furniture, required for indoor office use | |
| GB/T 4897.3-2003 | Particleboard specification for furniture-grade panel use, applicable to core panel material |
本产品须满足以下技术参数要求: 1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to panel desk structural performance; 2. GB 18584-2001:Formaldehyde emission limit for interior decoration wooden furniture, required for indoor office use; 3. GB/T 4897.3-2003:Particleboard specification for furniture-grade panel use, applicable to core panel material; 最终交付参数、检测报告和验收标准以双方采购合同为准。
