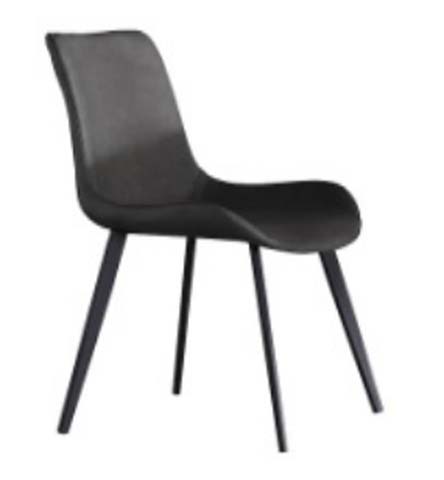

Black Armless Molded Contoured Dining Chair with Splayed Tapered Metal Legs Specifications

DC-BLK-SPL-001

代码:5K92SSV1
获取供应商报价
2026-08-19 16:21人气: 32
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

DC-BLK-SPL-001

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions580 x 572 x 900 mm
Seat height480 mm
Seat width460 mm
Seat depth420 mm
Backrest height440 mm
Leg base spread width520 mm
Leg base spread depth510 mm
Leg taper diameter at floor contact18 mm
Seat front edge thickness35 mm
Backrest top width420 mm
Under-seat knee clearance height460 mm
Floor contact point offset from seat edge120 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net weight per chair8.65 kg
Recommended static load capacity160 kg
Seat foam density (if upholstered)35 kg/m³
Back foam density (if upholstered)30 kg/m³
Foam rebound rate45%
Seam stitch pitch8 stitches per 30mm
Surface abrasion resistance (upholstered variant)30000 Martindale cycles
Anti-slip foot pad static friction coefficient0.6
Warranty period3 years
Available color options5
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat-back shellIntegrated molded 12mm thick high-density polymer shell
Shell surface finishMatte black soft-touch polyurethane coating
Internal support frame1.2mm thick powder-coated steel frame embedded in shell
Legs22mm diameter tapered matte black powder-coated steel tubes
Leg to seat connectionM8 zinc-plated steel bolt hardware with reinforced mounting plates
Floor contact pads5mm thick non-marking TPE rubber foot pads
Optional upholstery variant0.8mm thick PU faux leather over 40mm thick high-resilience foam
Leg surface coating60μm thick epoxy powder coat, scratch-resistant
Edge finishingRounded 5mm radius molded edges with no sharp corners
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Fixed height designNon-adjustable 480mm seat height optimized for 760 mm dining tables
Armless tuckable designNo protruding armrests to allow full tuck under standard dining tables
Ergonomic lumbar supportContoured 8° backward rake integrated into the molded back shell
Four-point splayed leg stabilityOutward-angled legs provide 520x510mm base footprint to resist tipping
Knock-down assemblyLegs attach to seat base via included hex key hardware for home assembly
Wipe-clean surface maintenanceNon-porous shell surface allows stain removal with damp cloth and mild detergent
Floor protectionTPE foot pads prevent scratching of hardwood, tile, and laminate flooring
Stacking compatibilityUp to 4 chairs can be stacked vertically for temporary storage
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
Reference Carton Volume0.26 m³/set
Indicative 20GP Loading135 sets at 85% space utilization
Indicative 40HQ Loading320 sets at 85% space utilization
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Residential dining roomsPairs with standard 750mm height dining tables for everyday family meals
Kitchen island seatingTucks under island overhangs for casual breakfast and prep seating
Coworking breakout areasLightweight stackable design for flexible event and meeting space setup
Small apartment dining nooksCompact footprint fits limited space without obstructing walkways
Café and bistro seatingWipe-clean surface supports high-turnover commercial food service use
Home office side seatingProvides upright guest seating for temporary desk or meeting use
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12520:2015Furniture strength, durability and safety requirements for domestic seating
EN 1022:2018Domestic seating stability test method for non-adjustable chairs
EN 16139:2013Non-domestic seating strength requirements for light contract use
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden/metal household furniture, applicable to structural stability
GB/T 10357.3-2013Furniture mechanical test for chair seat and back static/durability performance
GB 18584-2001Indoor decoration material limit of harmful substances for wood/furniture coatings
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden/metal household furniture, applicable to structural stability;
2. GB/T 10357.3-2013:Furniture mechanical test for chair seat and back static/durability performance;
3. GB 18584-2001:Indoor decoration material limit of harmful substances for wood/furniture coatings;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · DC-BLK-SPL-001

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · DC-BLK-SPL-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · DC-BLK-SPL-001打开导出工具

页面快速操作

发布采购询价

产品描述

The Black Armless Molded Contoured Dining Chair, model DC-BLK-SPL-001, is an unbranded minimalist modern fixed dining seating solution defined by clean, streamlined visual lines. Its form centers on a single integrated seat-back shell with a uniform matte black finish, supported by four outward-splayed tapered metal legs that create a stable, open base profile without protruding armrests to disrupt sightlines or spatial flow. The chair is built for durable long-term use, starting with a 12mm thick high-density polymer seat-back shell finished with a soft-touch matte black polyurethane coating, with rounded 5mm radius edges that eliminate sharp corners. A 1.2mm thick powder-coated steel frame is embedded within the shell for internal structural support, while legs are constructed from 22mm diameter tapered matte black steel tubes finished with a 60μm thick scratch-resistant epoxy powder coat. Legs fasten to the seat base via M8 zinc-plated steel bolts with reinforced mounting plates, capped with 5mm thick non-marking TPE rubber foot pads at floor contact points. An optional upholstered variant features 0.8mm thick PU faux leather over high-resilience foam for a softer seating feel. Functional design details are tailored for versatile daily use. It has a fixed 480mm seat height optimized for standard dining tables, with an armless profile that allows the chair to tuck fully under table tops to save unused space. The contoured molded back incorporates an 8° backward rake for built-in ergonomic lumbar support, and the four-point splayed leg structure creates a wide, stable base to resist tipping. The non-porous shell surface wipes clean easily with a damp cloth and mild detergent, while the soft rubber foot pads prevent scratches on hardwood, tile, and laminate flooring. The chair ships for knock-down assembly, with all required hex key hardware included, and requires no specialized tools to put together. This chair suits a broad range of residential and commercial settings. It works seamlessly in home dining rooms for everyday family meals, tucks neatly under kitchen island overhangs for casual breakfast seating, and fits compact small apartment dining nooks without obstructing walkways. It also serves as practical upright guest seating for home office meeting areas, supports flexible setup in coworking breakout spaces, and withstands high-turnover use in café and bistro environments thanks to its easy-to-clean surface. For procurement, note that each set is packaged across two cartons, with straightforward assembly requiring roughly 40 minutes per unit. Its standardized dimensions allow bulk loading for large commercial fit-outs, and its matte black finish coordinates with most neutral or bold interior color palettes without clashing with existing decor. The optional upholstered variant is available for settings that prioritize softer seating texture, while the standard hard-surface shell is ideal for high-traffic areas where quick cleanup is a priority.
