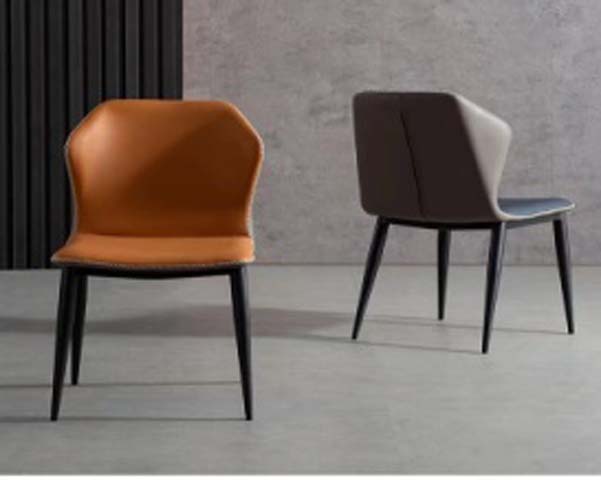

Modern Armless Upholstered Dining Chair with Curved Back and Tapered Black Metal Legs Specifications

DC-CURV-BLKLEG-001

代码:7H5TA4V1
获取供应商报价
2026-08-25 15:00人气: 19
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

DC-CURV-BLKLEG-001

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall assembled dimensions500 x 610 x 900 mm
Seat height from floor450 mm
Seat cushion width470 mm
Seat cushion depth480 mm
Seat cushion thickness80 mm
Backrest total height from seat450 mm
Backrest width at widest point460 mm
Leg diameter at floor contact20 mm
Leg splay from seat frame to floor35 mm per leg
Floor clearance under seat front edge370 mm
Finished Seat Cushion Thickness90 mm
Backrest Padding Thickness70 mm
Lumbar Support Zone Height240 mm
Clear Width Between Armrests540 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net weight per chair13 kg
Maximum static user weight capacity150 kg
Seat foam density45 kg/m³
Foam rebound rate60%
Upholstery abrasion resistance50000 Martindale cycles
Static load rating per leg75 kg
Available color options7
Recommended warranty period3 years
Seat Foam Density / Rebound Reference45 kg/m³ / 65%
Back Foam Density Reference38 kg/m³
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Seat and back upholstery1.2mm thick PU/microfiber faux leather
Seat padding coreHigh-density polyurethane foam
Back padding core30mm thick medium-density polyurethane foam
Inner seat and back frame12mm thick multi-layer plywood
Leg material and finish1.2mm thick matte black powder-coated carbon steel
Floor protection pads5mm thick non-slip felt glides
Upholstery stitchingBonded polyester thread with 8mm seam pitch
Frame connection hardwareZinc-plated steel M6 mounting bolts
Seat Internal Support Board Thickness14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness14 mm bent plywood/composite reinforced frame
Gas-lift Engineering SpecificationRecommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness2.5 mm cold-rolled steel
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Seat and back structureFixed integrated non-reclining design for upright dining posture
Floor glide functionFixed non-rotating felt pads prevent hard floor scratching and reduce movement noise
Stacking capabilityNon-stackable structure due to curved back and splayed leg geometry
Assembly requirementKnock-down assembly requiring leg attachment to seat frame with included hardware
Push-in clearanceArmless profile allows full push-in under 760 mm high dining tables to save floor space
Surface maintenanceSmooth non-porous upholstery allows wipe-clean with damp cloth for food and drink spills
Structural stabilityFour-point splayed leg layout prevents tipping during normal seated use
Recline Angle / Lock Reference125° with 3suggested lock positions
Tilt Tension User-weight RangeReference adjustment coverage 120 kg
Height Adjustment Stroke100 mm continuous travel
Rotation / Mobility Configuration360° swivel with 5-caster multidirectional movement
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Single carton outer dimensions620 x 590 x 900 mm
Gross weight per 2-chair carton28 kg
Carton volume per 2-chair pack0.33 CBM
Required assembly time per chair15 minutes
20ft GP container loading quantity240
40ft HQ container loading quantity580
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Carton Dimensions850× 420× 720 mm
Reference Packaged Gross Weight23 kg/set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Residential dining spacesMatches modern minimalist home dining sets for 6seat tables, armless design saves space
Commercial cafe and restaurant seatingDurable wipe-clean upholstery and 150kg load rating suit high-traffic food service areas
Hotel guest room ancillary seatingSleek silhouette and multiple color options coordinate with contemporary hotel room interiors
Small office meeting and breakout areasCompact footprint suits informal meeting spaces without adjustable office mechanisms
Open-plan kitchen island seating450mm seat height pairs with standard 900mm kitchen counter overhangs for casual dining
Showroom and model home stagingNeutral and bold color options support a range of modern interior design schemes
Recommended Matching Desk Size2.4 m executive desk
Reference Daily Use Duration8 hours/day; confirm by ergonomic testing
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12520:2015Strength, durability and safety requirements for domestic seating, applicable for home dining use
EN 1022:2018Stability test standard for non-domestic and domestic seating
EN 13722:2019Upholstered furniture fire resistance requirements for public and commercial spaces
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to inner plywood frame structure
GB/T 35607-2017Formaldehyde emission limits for upholstered furniture, applicable to foam and plywood components
GB/T 4893.8-2013Surface abrasion resistance test for furniture finishes, applicable to PU upholstery
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to inner plywood frame structure;
2. GB/T 35607-2017:Formaldehyde emission limits for upholstered furniture, applicable to foam and plywood components;
3. GB/T 4893.8-2013:Surface abrasion resistance test for furniture finishes, applicable to PU upholstery;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · DC-CURV-BLKLEG-001

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · DC-CURV-BLKLEG-001

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · DC-CURV-BLKLEG-001打开导出工具

页面快速操作

发布采购询价

产品描述

This modern armless upholstered dining chair, model DC-CURV-BLKLEG-001, is unbranded public and residential seating built for streamlined, space-efficient use across diverse settings. Visually, it features a clean, curved integrated backrest paired with slender tapered matte black metal legs, creating a minimalist silhouette that aligns with contemporary interior schemes without excessive ornamentation. The armless profile allows the chair to be pushed fully under 760mm high dining tables when not in use, eliminating unused clearance gaps to reduce visual clutter and free up floor space in compact layouts. Its construction centers on a rigid multi-layer plywood inner frame, with a 14mm bent plywood internal seat support board secured to legs using zinc-plated steel M6 mounting bolts. Seat cushions use high-density 45 kg/m³ polyurethane foam with 60% rebound rate, wrapped in 1.2mm thick PU/microfiber faux leather stitched with bonded polyester thread at 8mm seam pitch, while backrests use 30mm thick medium-density foam for balanced support. The 1.2mm thick matte black powder-coated carbon steel legs are arranged in a four-point splayed layout for stable, tip-resistant support during normal use, fitted with 5mm thick non-slip felt glides that prevent hard floor scratching and cut down on movement noise. The upholstery carries a 50000 Martindale abrasion resistance rating, supporting a 150kg maximum static user weight, with 75kg static load capacity per leg. Functionally, the fixed non-reclining structure promotes upright posture ideal for dining, while the smooth non-porous upholstery wipes clean with a damp cloth to quickly address food and drink spills. Delivered as knock-down units requiring 15 minutes of assembly per chair via included hardware, the chairs are non-stackable due to their curved back and splayed leg geometry. This model suits a wide range of spaces: residential dining areas paired with 6-seat modern table sets, high-traffic commercial cafes and restaurants, hotel guest room ancillary seating, small office breakout and informal meeting zones, open-plan kitchen island seating, and showroom or model home staging, with 7 available color options to coordinate with varied design palettes. For procurement, note that 2-chair cartons hold a gross weight of 28kg, with 240 units fitting a 20ft GP container and 580 units fitting a 40ft HQ container; the 450mm seat height is calibrated for standard dining table and kitchen counter overhang heights, and the fixed structure lacks adjustable or reclining mechanisms for low-maintenance long-term use.
