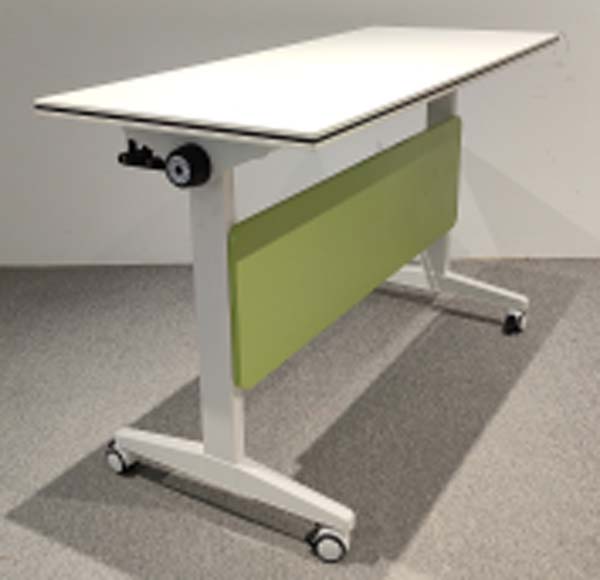

Mobile Manual Crank Height-Adjustable Sit-Stand Office Side Table with Green Modesty Panel Specifications

MAS-CC08G-WT

代码:28D8YXV1
获取供应商报价
2026-08-08 15:45人气: 50
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

MAS-CC08G-WT

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall dimensions (W×D×H)900 × 600 × 1200 mm
Tabletop thickness25 mm
Vertical leg column cross-section60 × 40 mm
T-base caster spread (per leg)550 mm
Minimum tabletop height from floor650 mm
Maximum vertical lift travel550 mm
Green modesty panel dimensions800 × 350 × 12 mm
Caster wheel diameter50 mm
Crank handle diameter80 mm
Clear knee opening height (at minimum table height)620 mm
Floor clearance under base crossbar30 mm
Black edge trim thickness2 mm
Primary Component Thickness40 mm according to load-bearing role
Hardware / Moving-part Clearance5 mm operating clearance
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Net weight range18 kg
Uniform static tabletop load capacity50 kg
Modesty panel impact resistance10 J
Caster dynamic rolling load rating (per wheel)25 kg
Crank lift mechanism cycle life10000 cycles
Powder coat finish abrasion resistance2000 cycles
Laminated tabletop surface stain resistance ratingGrade 4
Stability tipping load at maximum height20 kg offset
Reference Static Load150 kg depending on category
Moving-part Durability ReferenceAcceptance target 50000 cycles
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Worktop substrate18mm thick particleboard core
Worktop surface finishWhite melamine laminate
Worktop edge treatment2mm thick black PVC edge banding
Vertical support legs and T-bases2mm thick cold-rolled steel with epoxy polyester powder coat, off-white finish
Green modesty panel12mm thick rigid MDF core with green matte powder-coated or laminated finish, steel mounting brackets
Height adjustment crank mechanismZinc-plated steel leadscrew drive, glass-reinforced polyamide control knob
Lift locking hardwareHardened steel position lock with black powder-coated release lever
Caster wheels50mm diameter nylon twin-wheel swivel casters, polyurethane tread, two casters with integrated brake locks
Hardware fastenersZinc-plated steel bolts, barrel nuts, and assembly screws
Adjustment mechanism internal bearingsSelf-lubricating POM plastic guide bushings
Primary Connector SpecificationReference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color CountRecommended 6finish options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Manual crank height adjustmentLeft-side mounted hand crank operates synchronized leadscrew drive to adjust table height between 650mm and 1200mm, locks automatically at set height when crank is stationary
360° swivel mobilityFour dual-wheel casters allow full omnidirectional repositioning on carpet and hard floors, enabling movement between workstations, meeting areas, or home office spaces
Locking caster brakesTwo casters include step-on brake locks that prevent rolling when stationary, securing the table in position during active use
Modesty panel privacy screeningFull-width green solid panel mounted between vertical legs blocks view of under-table leg area from front approach, suitable for open office and training environments
Cantilever C-leg access clearanceT-shaped bases extend under seating areas with no central support obstruction, allowing users to pull a chair fully up to the table edge without base interference
Tool-less assembly requirementKnock-down flat pack design assembles with included hex key, no specialized power tools required for installation
Surface level stabilityFixed rigid worktop maintains flat horizontal orientation across full height adjustment range, no tilt function included
Low-friction height operationCrank requires less than 25N turning force to adjust height under full rated load, enabling easy adjustment by all users
Reference Adjustment / Operating Range100 mm or 120° where applicable
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Pack carton count1 unit
Packed carton dimensions (L×W×H)1050 × 650 × 250 mm
Packed gross weight18 kg
Packed volume per unit0.18 CBM
Assembly time50 minutes
20ft full container load quantity180 units
40ft HQ full container load quantity430 units
Packaging material5-layer corrugated carton, EPS foam corner protection, polybag wrapping for components, hardware blister pack
Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Open plan office touchdown workstationsProvides compact, repositionable sit-stand work surface for hot-desking and temporary work points, with modesty panel for user privacy in shared spaces
Home office dual work setupsRolls to sofas, beds, or existing desks for flexible laptop/monitor use, supports both seated and standing work positions without fixed installation
Training room and seminar spacesMobile, height-adjustable design allows fast reconfiguration of room layouts for different session formats, lockable casters secure units during sessions
Healthcare and clinical consultation spacesEasy to move and wipe-clean surface supports adjustable height for seated or standing consultations, accessible for wheelchair users at lower height settings
Educational classroom flexible learning areasDurable steel frame and lockable mobility suit student project work, small group collaboration, and instructor demonstration stations
Co-working space shared amenitiesCompact footprint and easy mobility allow members to move tables between private booths and open areas as needed, matching flexible workspace operational needs
Trade show and temporary event setupsFast assembly, light weight, and rolling mobility support quick booth and pop-up display installation, adjusts for presenter standing or seated demonstration use
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 527-2:2002Applies to safety, strength and durability requirements for office work tables and desks, recommended for structural performance acceptance
EN 527-3:2003Applies to test methods for stability and structural integrity of office desks, recommended for tip resistance testing at maximum height
EN 15372:2016Applies to durability, strength and safety requirements for non-domestic furniture, recommended for commercial office deployment verification
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

ANSI/BIFMA X5.5-2021Applies to standard test methods for desk products, including static load, cycle, and stability tests for office work surfaces
ANSI/BIFMA X5.9-2019Applies to caster durability and rolling performance requirements for office furniture casters, recommended for wheel life verification
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3326-2016Applies to desk and table dimensional, physical and mechanical performance requirements for office furniture, recommended for stability and load verification
GB/T 4893.8-2013Applies to surface wear resistance testing for laminated furniture surfaces, recommended acceptance for tabletop finish durability
GB 28007-2011Applies to general safety requirements for children and adult office furniture, recommended for edge and tip-over safety verification
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3326-2016:Applies to desk and table dimensional, physical and mechanical performance requirements for office furniture, recommended for stability and load verification;
2. GB/T 4893.8-2013:Applies to surface wear resistance testing for laminated furniture surfaces, recommended acceptance for tabletop finish durability;
3. GB 28007-2011:Applies to general safety requirements for children and adult office furniture, recommended for edge and tip-over safety verification;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · MAS-CC08G-WT

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · MAS-CC08G-WT

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MAS-CC08G-WT打开导出工具

页面快速操作

发布采购询价

产品描述

This unbranded height-adjustable mobile office side table, model MAS-CC08G-WT, presents a clean, functional design defined by a smooth white laminate worktop, off-white powder-coated steel frame, and distinctive matte green rigid modesty panel mounted between its vertical support legs. Its T-shaped base configuration sits on lockable dual-wheel casters, with an open front access profile that eliminates central support obstructions, while a slim black PVC edge trim runs the full perimeter of the worktop for a polished, finished look. The table’s worktop features an 18mm particleboard core surfaced with stain-resistant white melamine laminate, rated to resist common office spills like coffee, water, and standard cleaning agents for simple upkeep. The 2mm thick cold-rolled steel frame is finished with abrasion-resistant powder coating designed to hold up to regular contact scuffs in high-traffic settings, while the green 12mm rigid MDF modesty panel delivers reliable impact resistance against incidental contact from chairs and foot traffic. Four 50mm nylon casters with polyurethane treads support omnidirectional movement, with two integrated step-on brakes to hold the table securely in place during use. The left-side mounted manual crank operates a zinc-plated steel leadscrew drive with self-lubricating guide bushings for low-friction height adjustment, with a hardened steel lock that automatically secures the table at the chosen height across its full sit-stand adjustment range, supporting a 50kg uniform static load across the worktop, with lateral stability at full extended height to prevent accidental tipping. Practically, the table moves seamlessly between seated and standing work positions, with ample clear knee space at its lowest height to accommodate standard office seating and accessible positioning for wheelchair users. The cantilevered T-base design lets users pull seating fully to the table edge without obstruction, while the full-width modesty panel provides privacy for under-table areas in open shared spaces. The flat-pack knock-down design assembles with an included hex key, requiring no specialized power tools. This table suits a broad range of spaces, including open plan office touchdown and hot-desking stations, flexible home office setups that can be repositioned near seating or existing fixed desks, reconfigurable training rooms and seminar spaces, accessible healthcare consultation areas, flexible K-12 and higher education classrooms, shared co-working amenities, and temporary trade show or pop-up event installations. For procurement teams, key considerations include noting that the unit ships in a single 5-layer corrugated carton with protective foam and component wrapping, with standard export packaging suitable for LCL and FCL shipping. Final material confirmations for worktop substrates and modesty panel finish should be requested from suppliers prior to bulk orders, and assembly time should be allocated per standard knock-down furniture timelines for planned installations.
