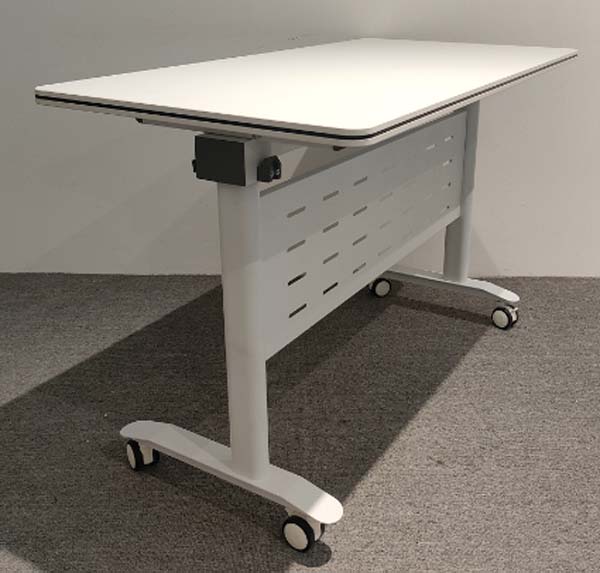

商品供应商Mobile Height-Adjustable Flip-Top Training Table，particle board
可联系供应商获取生产周期与报价。
2026-08-08 16:41人气: 59
参数纠错历史记录（所有访客可见）
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录，发现错误可点击行末旗标提交 | ||||
| 纠错时间 | 修改字段 | 原参数 | 修改后参数 | 说明 / 状态 |
|---|---|---|---|---|
暂无参数纠错记录，发现错误可点击行末旗标提交 | ||||
mm / 英寸自动双单位换算 · 工程采购基础规格
| Overall dimensions | 1200 x 600 x 760 mm | |
|---|---|---|
| Worktop thickness | 25 mm | |
| Frame column cross-section | 80 x 50 mm | |
| Foot base length per leg | 620 mm | |
| Caster diameter | 50 mm | |
| Vertical height adjustment range | 650 mm | |
| Seated knee clearance height under worktop | 690 mm | |
| Seated knee clearance depth | 530 mm | |
| Modesty panel height | 400 mm | |
| Caster setback from foot end | 40 mm | |
| Flip mechanism pivot offset from worktop edge | 30 mm | |
| Horizontal clearance between folded nested tables | 120 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
净重 / 最大承重 / 适用人数 / 耐久性能
| Net product weight | 38 kg | |
|---|---|---|
| Static uniform worktop load capacity | 150 kg | |
| Recommended user capacity | 2 people | |
| Caster dynamic rolling load per wheel | 40 kg | |
| Modesty panel point load resistance | 30 kg | |
| Flip mechanism cycle durability | 10000 cycles | |
| Worktop surface abrasion resistance | 2000 revolutions | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
| Worktop substrate | High-density particleboard core, 25mm thick | |
|---|---|---|
| Worktop surface | Matte white high-pressure laminate, 0.6mm face thickness | |
| Worktop edge banding | Black PVC T-molding, 2mm thickness | |
| Leg frames and feet | Powder-coated matte white 1.5mm thick cold-rolled steel | |
| Modesty panel | Perforated light gray 1.2mm thick powder-coated steel | |
| Height adjustment lock knob | Black reinforced nylon knob with steel thread insert | |
| Flip top release lever | Black reinforced plastic recessed handle | |
| Casters | Dual-wheel polyurethane tread, white wheel with black polypropylene hub, swivel design | |
| Adjustment gas strut | Steel nitrogen-filled gas spring, 50mm diameter | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
| Manual height adjustment | Screw-lock assisted height adjustment via rotating side knob, 110mm total travel from 650mm to 760mm, locks at any position within range | |
|---|---|---|
| Flip-top folding mechanism | Worktop pivots 90 degrees to vertical position via spring-assisted pivot, locks in both horizontal working and vertical storage positions | |
| Mobile rolling capability | Four swivel casters allow 360-degree omnidirectional movement on carpet or hard flooring, table moves easily when unlocked | |
| Caster locking function | Two front casters include total lock brakes that prevent both wheel rolling and swivel rotation, brakes engaged via foot pedal | |
| Nested storage capability | Vertical folded worktop allows tables to nest together side-by-side with 120mm gap between units, reducing storage footprint by 75% compared to fixed tables | |
| Cable management access | Horizontal slot perforations on modesty panel allow cable pass-through for device power and data cords | |
| Edge impact protection | Black PVC edge banding absorbs impact from collisions during movement or reconfiguration, prevents chipping of worktop substrate | |
| Stacking stability stop | Integrated rubber stops on frame prevent worktop contact between nested tables, preventing scratches during storage | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
经核验的外箱 / 毛重 / 组装 / 装柜数据
| Shipping carton dimensions | 1260 x 670 x 130 mm | |
|---|---|---|
| Gross shipping weight | 43 kg | |
| Shipping volume per unit | 0.11 CBM | |
| Required assembly time | 40 minutes | |
| 20ft full container load quantity | 245 units | |
| 40ft HQ full container load quantity | 610 units | |
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
推荐空间 / 目标用户 / 使用方式
| Corporate training rooms | Suitable for flexible employee training sessions, supports 2 users per table, easy reconfiguration and compact storage between sessions | |
|---|---|---|
| Conference and meeting spaces | Applicable for temporary meeting setups, height adjustability accommodates different chair heights and user groups, casters allow fast room rearrangement | |
| Educational classrooms and seminar rooms | Ideal for school or higher education seminar spaces, durable laminate surface resists daily wear, nested storage saves space when rooms are used for other activities | |
| Co-working flexible workspaces | Perfect for hot-desking and flexible work zones, tables can be arranged in rows, clusters, or stored away to create open event space | |
| Temporary event and exam setups | Suitable for short-term exams, workshops or pop-up events, locking casters secure tables in place during use, fast breakdown after events | |
| Healthcare and rehabilitation facilities | Height adjustability supports seated users with mobility needs, easy cleaning laminate surface and mobile design supports adaptable clinical or therapy spaces |
欧洲市场准入与化学品要求
| EN 527-1:2011 | Applies to dimensional and safety requirements for office work tables, defines minimum clearance and stability criteria for seated work use | |
|---|---|---|
| EN 527-2:2002+A1:2019 | Applies to mechanical safety, stability and strength requirements for office tables, including static load and fatigue testing | |
| EN 1335-3:2020 | Applies to caster durability and rolling resistance testing for mobile office furniture casters |
美国及加拿大家具标准
| ANSI/BIFMA X5.5-2021 | Applies to performance and durability requirements for office desks and tables, including vertical load, horizontal stability and cycle testing | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Applies to caster performance, durability and load rating requirements for mobile furniture wheels |
适用于中国市场项目的标准
| GB/T 3326-2016 | Applies to table dimension measurement and tolerance requirements for office furniture tables, sets standard height, clearance and dimensional stability criteria | |
|---|---|---|
| GB/T 3327-2016 | Applies to mechanical performance requirements for office tables, including static load, impact and durability testing for work surfaces and frames | |
| GB 18580-2017 | Applies to formaldehyde emission limits for wood-based panel substrates used in the worktop, requires E1 grade ≤0.124mg/m³ emission for indoor use | |
| GB/T 4893.8-2013 | Applies to surface wear resistance testing for laminate worktops, sets minimum abrasion cycle requirements for commercial use |
本产品须满足以下技术参数要求： 1. GB/T 3326-2016：Applies to table dimension measurement and tolerance requirements for office furniture tables, sets standard height, clearance and dimensional stability criteria； 2. GB/T 3327-2016：Applies to mechanical performance requirements for office tables, including static load, impact and durability testing for work surfaces and frames； 3. GB 18580-2017：Applies to formaldehyde emission limits for wood-based panel substrates used in the worktop, requires E1 grade ≤0.124mg/m³ emission for indoor use； 4. GB/T 4893.8-2013：Applies to surface wear resistance testing for laminate worktops, sets minimum abrasion cycle requirements for commercial use； 最终交付参数、检测报告和验收标准以双方采购合同为准。
