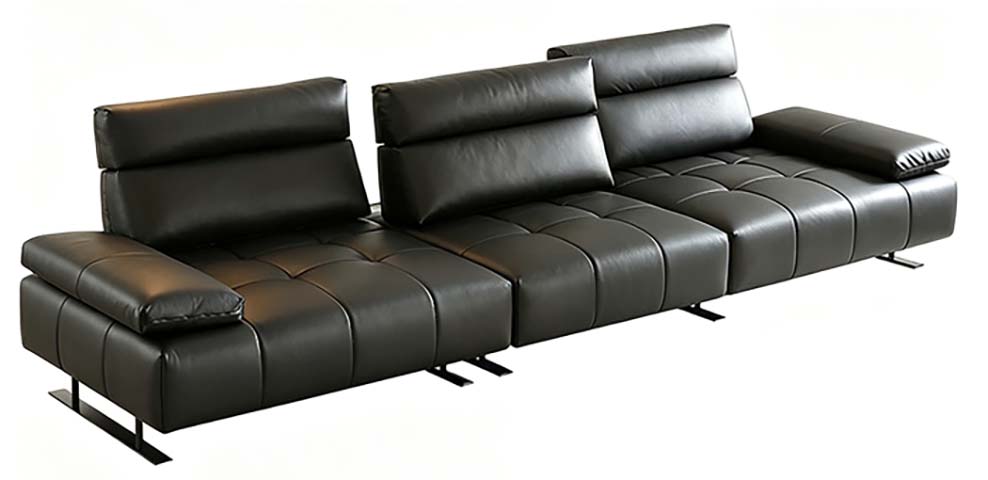

4-Seat Linear Modular Channel-Tufted Black Leather Sofa with Adjustable Headrests Specifications

LS-MOD-4S-BLK-METAL

代码:14N11HV1
获取供应商报价
2026-09-08 14:55人气: 7
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

LS-MOD-4S-BLK-METAL

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

overall dimensions3400 x 1100 x 910 mm
per-seat width750 mm
seat height from floor450 mm
seat depth680 mm
armrest width250 mm
armrest height from floor620 mm
leg height120 mm
headrest extended height910 mm
seat cushion thickness150 mm
backrest cushion thickness120 mm
knee clearance under seat120 mm
Back Cushion Thickness160 mm
Leg Height / Floor Clearance160 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

total static load capacity1000 kg
product net weight160 kg
seat foam density2.0 lb/ft³
foam rebound rate60%
leather upholstery abrasion resistance50000 cycles
adjustable backrest positions3 positions
seam stitch pitch30 mm
frame static load durability25000 cycles
Seat Foam Density / Rebound40 kg/m³ / 60%
Upholstery Abrasion ReferenceFabric 60000 cycles; leather-class cover 1.4 mm
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

internal framekiln-dried solid hardwood and plywood, corner-blocked glued joinery
seat suspensioninterwoven 80mm elastic webbing under seat cushions
seat cushion fillhigh-density polyurethane foam wrapped in Dacron batting
backrest/headrest fillvariable-density polyurethane foam for lumbar and neck support
upholstery surfacesmooth matte black full-grain or bonded leather, channel-quilted grid stitching
armrest paddingwrapped high-density foam over rigid subframe, matching upholstery
support legs/basematte black powder-coated flat steel cantilever sled feet
modular connection hardwarezinc-plated steel connecting brackets between seat modules
Timber Frame Section / MoisturePrimary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing SpecificationSinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector SpecificationReference M8-M10 with at least 1 mechanical fixing per leg
Reference Upholstery Color CountRecommended 8fabric/leather color options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

adjustable headrest/backrestmanual ratchet mechanism adjusts to 3 recline angles, locks in position for neck/lumbar support
modular section connectionsteel brackets secure individual seat and arm modules, enabling configuration changes
non-marking leg padsplastic foot caps on metal legs prevent floor scratching
fixed deep-seat designsingle fixed seat depth with no movable footrest extension, optimized for relaxed lounging
removable cushion coverszippered upholstery covers allow removal for spot cleaning
cantilever base supportflat-bar steel sled legs distribute weight evenly without central support beams
Cushion Service ConfigurationRecommended 2removable/replaceable cushion methods
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Module Carton Dimensions2200× 1050× 850 mm
Reference Packaging Volume1.8 m³/item
Reference Packaged Gross Weight110 kg/item
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

residential living roommain lounge seating for 4 adults, suitable for open-plan contemporary interiors
modern office reception areawaiting area seating for executive suites or design studio common spaces
luxury lounge spacehigh-end hotel lobby or premium residential media room seating arrangement
minimalist interior schemeslow-profile matte black finish complements monochrome, industrial, or modern decor
open-plan loft spaceslinear configuration fits long wall layouts without blocking sightlines
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12520:2015Furniture strength, durability and safety requirements for residential seating
EN 1021-1:2014Upholstered furniture ignitability resistance to smouldering cigarette
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to internal hardwood frame
GB 18584-2001Limit of harmful substances in wooden furniture, applicable for formaldehyde emission control
GB/T 16799-2008Furniture leather performance requirements, applicable to upholstery material
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to internal hardwood frame;
2. GB 18584-2001:Limit of harmful substances in wooden furniture, applicable for formaldehyde emission control;
3. GB/T 16799-2008:Furniture leather performance requirements, applicable to upholstery material;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · LS-MOD-4S-BLK-METAL

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · LS-MOD-4S-BLK-METAL

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · LS-MOD-4S-BLK-METAL打开导出工具

页面快速操作

发布采购询价

产品描述

This 4-seat linear modular channel-tufted black leather sofa, model LS-MOD-4S-BLK-METAL, is an unbranded contemporary modular sectional designed for cohesive, streamlined seating across residential and commercial settings. Visually, it features a low-profile linear form with smooth matte black upholstery finished with precise channel-quilted grid stitching, supported by a seamless matte black metal cantilever sled base that eliminates obstructing central support beams. The 250mm wide padded armrests sit at a balanced 620mm height from the floor, framing a deep, open seating layout that aligns cleanly along long wall placements without blocking cross-space sightlines. Construction centers on a kiln-dried solid hardwood and plywood frame with corner-blocked glued joinery, using primary timber sections sized for lasting structural stability and finished to a recommended 12% moisture content. Seating support comes from interwoven 80mm elastic webbing under seat cushions filled with high-density polyurethane foam wrapped in Dacron batting, rated for 1000kg total static load capacity. Backrests and integrated headrests use variable-density polyurethane foam shaped for targeted lumbar and neck support, while armrests are padded with matching high-density foam over a rigid subframe. The upholstery, available in smooth matte black full-grain or bonded leather, delivers 50,000 cycles of abrasion resistance, with 30mm seam stitch pitch for tailored durability. Matte black powder-coated flat steel sled feet are fitted with non-marking plastic caps to protect floor surfaces, and zinc-plated steel brackets connect individual modules securely. Practical functionality includes a manual ratchet mechanism that adjusts headrests and backrests to three locked recline angles to accommodate varied seating preferences. Zippered, removable cushion covers support straightforward spot cleaning, while the fixed 680mm deep seat, set 450mm from the floor, is optimized for relaxed lounging without movable footrest extensions. Each individual seat offers 750mm of width, with the headrest extending to a full 910mm height at its maximum adjustment. The modular bracket system also allows reconfiguration of sections to suit evolving layout needs. This sofa is well suited for residential open-plan living rooms as primary lounge seating for four adults, modern office reception and waiting areas in executive suites or design studios, high-end hotel lobbies, premium residential media rooms, and open-plan loft spaces. Its matte black low-profile finish complements monochrome, industrial, and minimalist interior schemes. Procurement teams should note the unit ships in two cartons per set, with a 40-minute per-set reference assembly time, 160kg net weight, and 1.8 cubic meter total packaging volume. Removable cushion covers support long-term maintenance, and replacement cushion options are recommended for extended service life.
