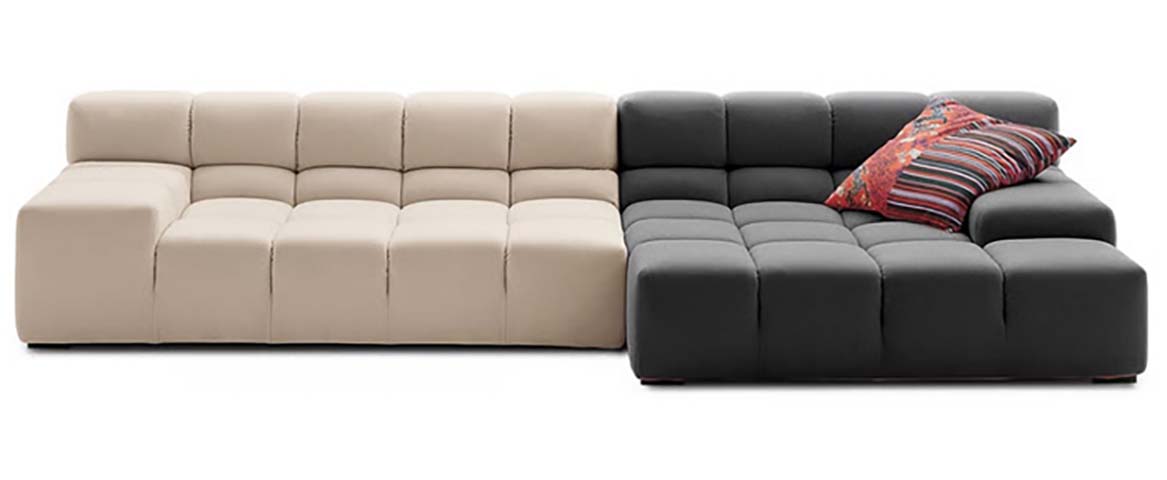

Two-Tone Grid-Tufted L-Shaped Modular Sectional Sofa Specifications

MS-GT2T-3600

代码:6N4QABV1
获取供应商报价
2026-09-09 12:26人气: 4
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

MS-GT2T-3600

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

Overall L-shape dimensions3600 x 1750 x 890 mm
Seat height from floor470 mm
Straight seating module depth1000 mm
Chaise extended seat depth1100 mm
Cushion grid segment width450 mm
Backrest height above seat420 mm
Support foot height90 mm
Minimum door clearance for delivery465 mm
Seat Cushion Thickness180 mm
Back Cushion Thickness160 mm
Leg Height / Floor Clearance160 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

Total static weight capacity1360 kg
Per-seat static load capacity150 kg
Seat foam density45 kg/m³
Seat foam thickness200 mm
Backrest foam thickness150 mm
Foam rebound rate60%
Fabric abrasion resistance30000 Martindale cycles
Seating capacity6 adults
Seat Foam Density / Rebound40 kg/m³ / 60%
Upholstery Abrasion ReferenceFabric 60000 cycles; leather-class cover 1.4 mm
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

Internal frameKiln-dried solid pine wood with reinforced joinery
Seat support system3.8mm gauge sinuous spring foundation
Upholstery fabricMatte soft woven polyester blend fabric
Cushion fillingHigh-resiliency polyurethane foam wrapped in polyester fiber
Support feetReinforced black plastic foot caps with non-slip pads
Seam stitchingReinforced polyester thread with 30mm stitch pitch
Cushion coversNon-removable sewn upholstery covers
Module connectorsHeavy-duty steel interlocking brackets
Timber Frame Section / MoisturePrimary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing SpecificationSinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector SpecificationReference M8-M10 with at least 1 mechanical fixing per leg
Reference Upholstery Color CountRecommended 8fabric/leather color options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

Modular configurationFixed L-shape layout with dual extended chaise ends
Grid tuft constructionStitched square segmented cushioning preventing fill shift
No recline mechanismFixed angle upright lounge backrest for casual seating
Low-profile seatingFloor-adjacent deep seat design for relaxed lounging
Cushion retentionIntegrated sewn cushions attached to frame base
Leveling adjustmentSmall adjustable foot pads to compensate for uneven floors
Armrest block width (outer segments)450 mm
Cushion Service ConfigurationRecommended 2removable/replaceable cushion methods
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Module Carton Dimensions2200× 1050× 850 mm
Reference Packaging Volume1.8 m³/item
Reference Packaged Gross Weight110 kg/item
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

Residential living room main seatingProvides spacious lounge seating for family gatherings and daily relaxation
Open-plan loft or apartment spacesLow-profile geometric silhouette complements modern minimalist interior design
Casual office lounge areasSuitable for informal break room or reception waiting area seating
Small home media roomsDeep chaise seats support reclined viewing positions for home entertainment
Recommended complementary furniturePairs with low-profile coffee tables of 400 mm height for visual balance
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12520:2015Furniture – Strength, durability and safety for domestic seating, applicable for residential use
EN 1021-1:2014Upholstered furniture ignitability test for smouldering cigarette sources
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 3324-2017General technical requirements for wooden furniture, applicable to internal wood frame construction
GB 18401-2010National textile product safety basic specification, applicable to upholstery fabric
GB/T 1952.1-2012Test methods for upholstered sofas, applicable for seating durability and safety verification
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 3324-2017:General technical requirements for wooden furniture, applicable to internal wood frame construction;
2. GB 18401-2010:National textile product safety basic specification, applicable to upholstery fabric;
3. GB/T 1952.1-2012:Test methods for upholstered sofas, applicable for seating durability and safety verification;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · MS-GT2T-3600

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · MS-GT2T-3600

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · MS-GT2T-3600打开导出工具

页面快速操作

发布采购询价

产品描述

The Two-Tone Grid-Tufted L-Shaped Modular Sectional Sofa, model MS-GT2T-3600, is an unbranded modular sectional sofa built to deliver comfortable, visually cohesive lounge seating for a range of settings. It features a distinct two-tone beige and charcoal finish, with a low-profile geometric silhouette defined by grid-tufted, square-segmented cushions and a fixed L-shaped layout fitted with dual extended chaise ends. Outer armrest blocks measure 450mm in width, aligning with the structured cushion segments to create a clean, balanced visual line suited to modern minimalist interiors. Its construction centers on a kiln-dried solid pine wood frame with reinforced joinery, built from primary frame sections of 30 x 50mm timber maintained at 12% recommended moisture content. The seat support system uses 3.8mm gauge sinuous springs, topped with 200mm thick, 45kg/m³ high-resiliency polyurethane seat foam wrapped in polyester fiber, with 150mm thick foam for the backrest delivering a 60% rebound rate. Matte soft woven polyester blend upholstery covers the frame and cushions, tested to 30000 Martindale cycles of abrasion resistance, with reinforced polyester thread stitched at a 30mm pitch for durable seams. Heavy-duty steel interlocking brackets secure modular segments, while reinforced black plastic feet with non-slip pads include small adjustable pads to level the piece on uneven floors. Fixed upright backrests offer casual lounge support without recline mechanisms, and integrated sewn cushions attach directly to the frame base to prevent fill shift, with grid tufting further stabilizing cushion filling over time. The sofa supports a total static weight capacity of 1360kg, with 150kg per-seat static load capacity. Measuring 3600 x 1750 x 890mm overall, it features a 470mm seat height, 420mm backrest height above the seat, 1000mm deep straight seating modules, and 1100mm extended chaise depth ideal for relaxed, reclined postures. It is well suited for residential living rooms as primary seating for family gatherings and daily relaxation, open-plan lofts and apartments where its low profile complements minimalist design, casual office lounge and break areas, reception waiting zones, and small home media rooms. It pairs best with 400mm high low-profile coffee tables for visual balance. Procurement teams should note delivery requires minimum 465mm door clearance. The sofa ships in 2 cartons per set, with a packaged gross weight of 110kg and total packaging volume of 1.8m³, requiring 40 minutes of assembly per set. Cushion covers are non-removable, so care planning should account for sewn-in upholstery maintenance needs.
