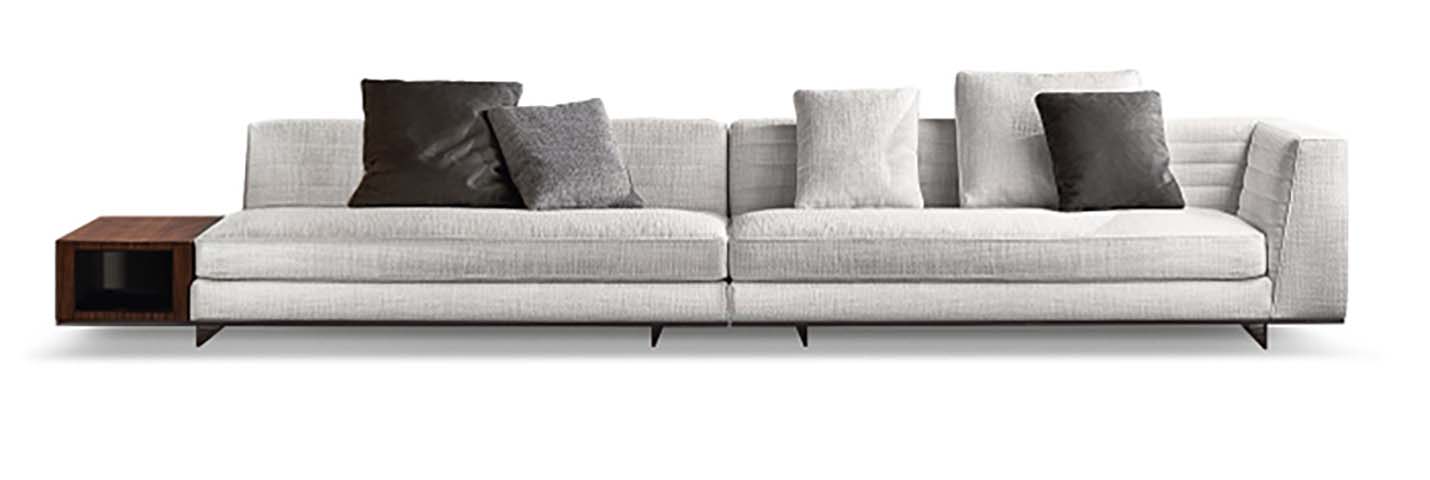

Light Gray Fabric 4-Seat Linear Sectional Sofa with Integrated Walnut Side End Table Specifications

SEC-4S-INT-WAL-01

代码:7NYGCWV1
获取供应商报价
2026-09-08 16:40人气: 23
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

SEC-4S-INT-WAL-01

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

overall dimensions3400 x 1030 x 860 mm
seat height460 mm
seat depth670 mm
right armrest dimensions200 x 1030 x 620 mm
integrated end table dimensions600 x 1030 x 420 mm
leg height150 mm
backrest height above seat400 mm
seat cushion thickness240 mm
back cushion thickness180 mm
throw pillow size500 x 500 mm
under-sofa ground clearance120 mm
seating width per seat position700 mm
Leg Height / Floor Clearance160 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

total static load capacity454 kg
seating capacity4 adults
cushion foam density45 kg/m³
foam rebound rate60%
net product weight136 kg
fabric Martindale abrasion resistance30000 cycles
frame static load durability100000 cycles
seam stitch pitch8 stitches per inch
Seat Foam Density / Rebound40 kg/m³ / 60%
Upholstery Abrasion ReferenceFabric 60000 cycles; leather-class cover 1.4 mm
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

main upholstery fabricTextured light gray 380gsm linen-look polyester
internal frame18mm thick kiln-dried solid pine + 15mm plywood
seat cushion support8 gauge serpentine steel springs + 50mm elastic webbing
cushion fillingHigh-density polyurethane foam with 20mm down wrap layer
support legs30x20mm dark powder-coated angled steel
integrated end tableWalnut-veneer MDF with open storage cubby
base trim railDark matte powder-coated steel perimeter rail
throw pillow coversMixed dark charcoal, medium gray and light gray textured polyester
right armrest coreHigh-density foam padding over plywood frame
Timber Frame Section / MoisturePrimary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing SpecificationSinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector SpecificationReference M8-M10 with at least 1 mechanical fixing per leg
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

cushion configurationFixed non-removable seat and back cushions aligned to low-profile design
modular assemblyTwo split seat units joined during installation for easier transport
integrated end table featureAttached left-side open cubby for small item storage adjacent to seating
floor protectionPlastic glide pads fitted to leg bases to prevent hard floor scratching
back support designSemi-firm channel-stitched right armrest and flat back cushions for upright lounging
color option availability5 neutral finish options including light gray, charcoal, beige, black and coffee
throw pillow inclusion5 mixed-tone decorative throw pillows included with the sofa set
Cushion Service ConfigurationRecommended 2removable/replaceable cushion methods
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Module Carton Dimensions2200× 1050× 850 mm
Reference Packaging Volume1.8 m³/item
Reference Packaged Gross Weight110 kg/item
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

living room primary seatingSuited for modern minimalist residential living rooms as main 4-person lounge seating
open plan lounge spaceIdeal for open-plan apartments and lofts, integrated table eliminates need for separate side table
reception lounge areaSuitable for contemporary office reception or executive lounge waiting areas
residential open studioFits small to medium home studios, long linear layout aligns with wall placement
recommended pairingPairs with low-profile rectangular coffee tables and neutral area rugs for coordinated modern interiors
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

EN 12520:2015Applicable to domestic seating, defining strength, durability and stability test methods
EN 1021-1:2014Applicable to upholstered furniture, assessing ignition resistance from smouldering cigarettes
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

GB/T 1952.1-2012Applicable to residential upholstered sofas, covering strength, durability and safety requirements
GB 18584-2001Applicable to furniture, setting limits for formaldehyde and heavy metal emissions
GB/T 17592-2011Applicable to upholstery textiles, restricting harmful azo dye content
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. GB/T 1952.1-2012:Applicable to residential upholstered sofas, covering strength, durability and safety requirements;
2. GB 18584-2001:Applicable to furniture, setting limits for formaldehyde and heavy metal emissions;
3. GB/T 17592-2011:Applicable to upholstery textiles, restricting harmful azo dye content;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · SEC-4S-INT-WAL-01

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · SEC-4S-INT-WAL-01

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · SEC-4S-INT-WAL-01打开导出工具

页面快速操作

发布采购询价

产品描述

The AIMENGSHI SEC-4S-INT-WAL-01 is a four-seat linear sectional sofa defined by clean, minimalist modern lines and a streamlined one-arm layout that integrates a functional end table directly into its frame. Its light gray textured linen-look polyester upholstery creates a soft, neutral visual foundation, accented by five included decorative throw pillows in mixed charcoal, medium gray, and light gray tones. The right-side armrest and flat, channel-stitched backrests align to a low-profile silhouette, supported by angled dark powder-coated steel legs and a matching dark matte steel perimeter base rail. The integrated walnut-veneer end table sits flush with the sofa’s left end, matching the unit’s overall depth for a seamless built-in appearance. Constructed for long-term regular use, the sofa’s internal frame combines kiln-dried solid pine and plywood, with a support system of serpentine steel springs and elastic webbing under the seat cushions. Seat and back cushions are fixed to maintain the sofa’s tailored shape, filled with high-density polyurethane foam wrapped in a soft down layer for balanced, semi-firm support. The integrated end table includes an open lower cubby for small-item storage, and plastic glide pads fitted to each leg base prevent scratching on hard flooring surfaces. The sofa ships as two separate seat units joined during installation to simplify transport, and is delivered across two cartons for straightforward on-site assembly. This sectional suits a range of modern spaces, from residential living rooms, open-plan apartments, lofts, and small to medium home studios where its linear form works well positioned against a wall, to contemporary office reception areas and executive lounge waiting zones. The built-in end table removes the need for a separate side table in tighter layouts, and the piece coordinates seamlessly with low-profile rectangular coffee tables and neutral area rugs for a cohesive interior scheme. Five neutral upholstery finish options are available to align with varied design palettes. For procurement planning, buyers should account for the unit’s total static load capacity, abrasion-resistant fabric performance, and frame durability ratings to confirm fit for intended use frequency, as well as allocate appropriate time for on-site assembly and confirm access for delivery of the packaged cartons.
