Beige Terraced Mirrored Modular Landscape Lounge Sofa Specifications

TERR-MOD-2200-LS

代码:867A6WV1
获取供应商报价
2026-09-08 13:18人气: 7
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

TERR-MOD-2200-LS

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

overall dimensions2200 x 1000 x 630 mm
single module dimensions1100 x 1000 x 630 mm
seat height450 mm
primary seating surface depth per position700 mm
integrated backrest/armrest height above seat180 mm
layered terrace step height between pads90 mm
central abutment joint width0 mm
rounded edge radius50 mm
seating position count4
Seat Cushion Thickness180 mm
Back Cushion Thickness160 mm
Leg Height / Floor Clearance160 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

total static weight capacity544 kg
per-seat static weight capacity227 kg
total product net weight120 kg
seating foam density45 kg/m³
foam rebound rate60%
upholstery abrasion resistance30000 Martindale cycles
durability cycle rating20000 cycles
seam tensile strength150 N
Seat Foam Density / Rebound40 kg/m³ / 60%
Upholstery Abrasion ReferenceFabric 60000 cycles; leather-class cover 1.4 mm
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

internal support frameKiln-dried solid pine and plywood frame
seat core fillHigh-density cold-cure polyurethane foam
comfort topper layer400g/m³ polyester fiber wrap
outer upholsteryMatte light beige top-grain leather or performance fabric
modular connecting hardwarePowder-coated steel connector brackets
base layerNon-slip high-friction fabric bottom
stitching constructionDouble-needle saddle stitching with 8mm seam pitch
foam layer thickness (base)150 mm
foam layer thickness (seat surface)100 mm
Timber Frame Section / MoisturePrimary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing SpecificationSinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector SpecificationReference M8-M10 with at least 1 mechanical fixing per leg
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

modular configurationTwo mirror-image units join centrally to form a symmetrical landscape sofa
integrated arm/back supportRaised curved padded perimeters provide built-in armrest and backrest support
contoured seatingTerraced layered padding forms indented ergonomic seat pockets
low-profile lounge designElevated seat height enables casual floor-adjacent lounge seating
fixed non-reclining structureAll padded layers are permanently secured to the frame
reconfigurable layout capabilityUnits may be arranged standalone or paired with additional compatible terraced modules
Cushion Service ConfigurationRecommended 2removable/replaceable cushion methods
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Module Carton Dimensions2200× 1050× 850 mm
Reference Packaging Volume1.8 m³/item
Reference Packaged Gross Weight110 kg/item
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

open-plan living room loungeSculptural low-profile form serves as a statement seating piece for residential spaces
high-end office reception areaWide multi-seat configuration supports guest waiting and informal collaboration
lobby and hospitality loungeSoft contoured form provides relaxed seating for hotel and public lobby spaces
creative studio breakout spaceModular layout adapts to flexible casual gathering spaces in creative workplaces
exhibition and display spaceTerraced sculptural form acts as both functional seating and design installation
residential open loft spaceLow-profile design maintains sight lines in wide, open interior layouts
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

furniture seating safetyEN 12520:2015
upholstered furniture flammabilityEN 1021:2014
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

lounge seating durabilityANSI/BIFMA X2020
seating static load testingANSI/BIFMA X5.4 Section 5
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

upholstered furniture safetyGB 20400:2006
furniture mechanical performance for sofasGB/T 3324
foam material standardGB/T 10802
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. upholstered furniture safety:GB 20400:2006;
2. furniture mechanical performance for sofas:GB/T 3324;
3. foam material standard:GB/T 10802;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · TERR-MOD-2200-LS

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · TERR-MOD-2200-LS

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · TERR-MOD-2200-LS打开导出工具

页面快速操作

发布采购询价

产品描述

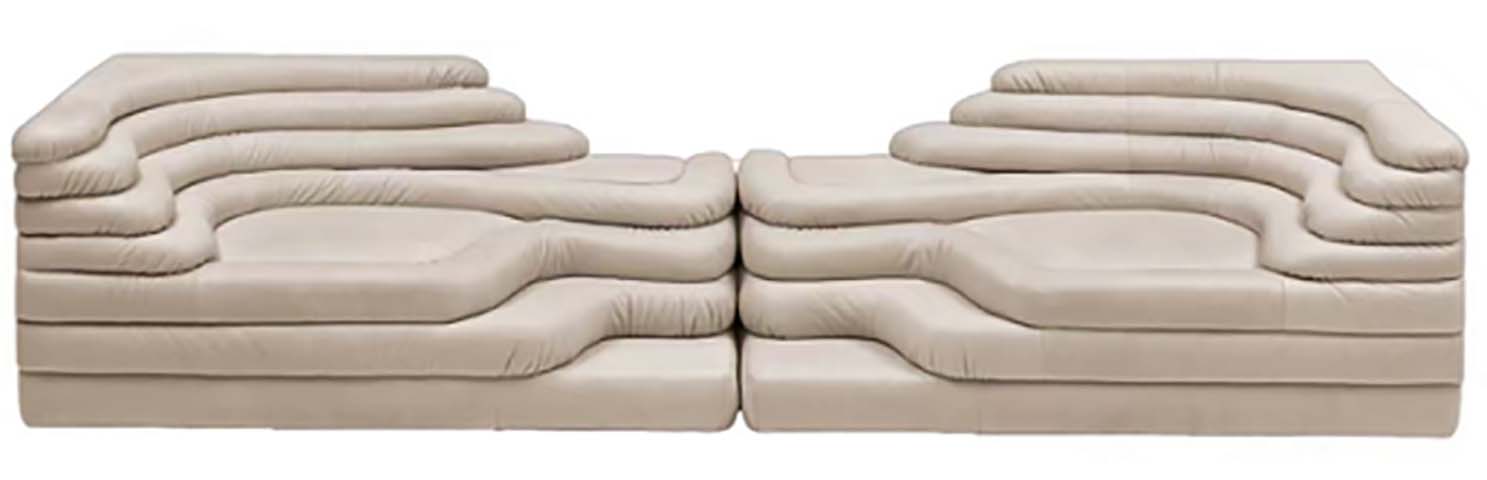

The Beige Terraced Mirrored Modular Landscape Lounge Sofa by AIMENGSHI, model TERR-MOD-2200-LS, is a fully upholstered curvilinear modular sectional designed for flexible, sculptural public and premium private seating. Its visual form features smooth rounded edges and a symmetrical low-profile silhouette, formed by two mirror-image units that join at a seamless central abutment with zero visible gap, creating a flowing landscape-style layout. Terraced layered padding with defined step heights between pads forms contoured, indented ergonomic seat pockets, while raised curved padded perimeters wrap the structure to deliver integrated armrest and backrest support without separate attached components. Built for long-term high-use settings, the sofa uses a kiln-dried solid pine and plywood internal frame, secured with powder-coated steel connector brackets that hold modules firmly in place during use. Seating cores are constructed from high-density cold-cure polyurethane foam, topped with a soft polyester fiber wrap, and finished in either matte light beige top-grain leather or performance fabric, applied with double-needle saddle stitching for durable, clean seam lines. A non-slip high-friction fabric base prevents unwanted shifting on smooth flooring. The fixed non-reclining structure supports a total static weight capacity of 544 kg, with per-seat capacity rated for 227 kg, and upholstery tested to 30000 Martindale abrasion cycles to withstand regular public use. Units can be deployed as standalone seating pieces or paired with additional compatible terraced modules to scale layouts for larger spaces; removable, replaceable cushions support simplified long-term maintenance. Assembly takes 40 minutes per set, with two cartons included per full sofa configuration. This sofa fits a wide range of spaces, including open-plan residential living rooms and lofts where its low profile preserves unobstructed sight lines, high-end office reception areas supporting guest waiting and informal collaboration, hotel and public lobby hospitality lounges, creative studio breakout zones for casual gatherings, and exhibition spaces where its sculptural form functions as both seating and a design installation. When procuring, confirm upholstery selection matches intended use case traffic levels, and account for required assembly time and layout flexibility to align with space planning goals.
