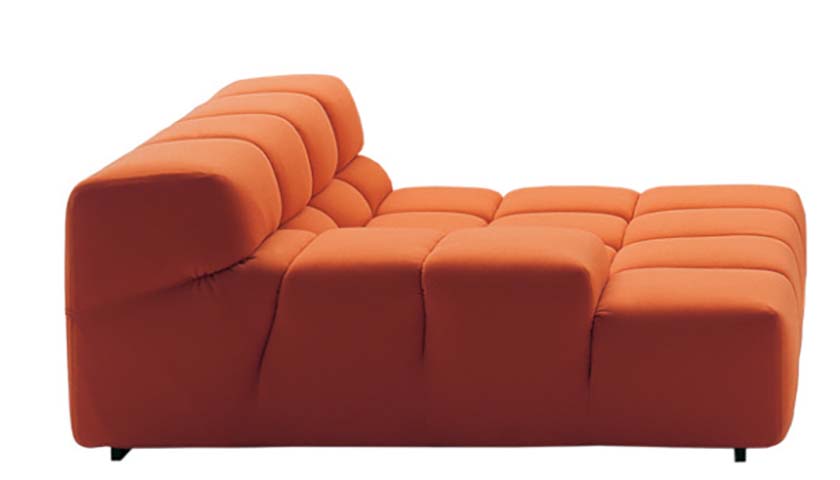

Orange Block-Quilted Left Chaise Sectional Sofa Module Specifications

LCH-OR-2000-BQ

代码:AQHST9V1
获取供应商报价
2026-09-09 14:09人气: 6
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

LCH-OR-2000-BQ

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

overall dimensions2000 x 1000 x 680 mm
seat height430 mm
chaise lounge depth (right open end)1650 mm
integrated left armrest/backrest height680 mm
foot height (floor clearance)50 mm
seat cushion thickness250 mm
armrest width (left end)200 mm
Back Cushion Thickness160 mm
Leg Height / Floor Clearance160 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

overall unit weight65 kg
static seat load capacity (per seating position)150 kg
fabric abrasion resistance30000 cycles
fabric lightfastness rating5
foam density (seat core)45 kg/m³
foam rebound rate60%
seam stitch pitch30 mm
standard component warranty10 years
Seat Foam Density / Rebound40 kg/m³ / 60%
Upholstery Abrasion ReferenceFabric 60000 cycles; leather-class cover 1.4 mm
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

internal frame50x40mm kiln-dried solid wood + 12mm plywood, corner blocked
seat suspension system3.8mm gauge sinuous no-sag springs spaced 100mm apart
seat cushion fill45kg/m³ HR polyurethane foam core + 30mm soft polyester fiber wrap
back/armrest fill30kg/m³ polyurethane foam + layered polyester padding
upholstery fabric380gsm matte woven polyester fabric, orange color
support feetMatte black engineering plastic feet, 50mm height, floor-protecting base
upholstery constructionChannel-quilted grid stitching, rounded soft edge finishing
Timber Frame Section / MoisturePrimary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing SpecificationSinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector SpecificationReference M8-M10 with at least 1 mechanical fixing per leg
Reference Upholstery Color CountRecommended 8fabric/leather color options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

seating configurationLeft integrated arm/back, right open chaise lounge for single extended seating
modular connection capabilityIntegrated metal clip brackets for connection to adjacent sectional sofa modules
assembly requirementMinor assembly required for attaching support feet with included hardware
upholstery featureFixed non-removable upholstery covers with reinforced quilt stitching
functional useFixed non-reclining deep lounge seating for relaxed upright or reclined postures
floor protectionSmooth non-marking foot pads to prevent scratching hard flooring surfaces
individual quilted seat block width500 mm
Cushion Service ConfigurationRecommended 2removable/replaceable cushion methods
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Module Carton Dimensions2200× 1050× 850 mm
Reference Packaging Volume1.8 m³/item
Reference Packaged Gross Weight110 kg/item
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

residential living roomSuitable for modern minimalist, contemporary or mid-century styled living spaces as primary lounge seating
small apartment spacesCompact standalone chaise fits studio apartments, open lofts or lounge nooks without requiring full sectional footprint
commercial lounge areasApplicable for office break rooms, boutique waiting areas or co-working space soft seating
modular sectional expansionCan be connected with matching center, corner or additional chaise modules to create custom sectional layouts
complementary furnishingPairs with low-profile coffee tables, area rugs and accent chairs for coordinated lounge space design
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

upholstered furniture safetyEN 1021:2014
furniture strength testingEN 12520:2015
STANDARD S2

北美市场采购验货参考 * ANSI/BIFMA 标准

美国及加拿大家具标准

seating durabilityANSI/BIFMA X2021
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

upholstered furniture safetyGB 20400:2006
furniture mechanical performanceGB/T 3324
foam material standardGB/T 10802
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. upholstered furniture safety:GB 20400:2006;
2. furniture mechanical performance:GB/T 3324;
3. foam material standard:GB/T 10802;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · LCH-OR-2000-BQ

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · LCH-OR-2000-BQ

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · LCH-OR-2000-BQ打开导出工具

页面快速操作

发布采购询价

产品描述

The AIMENGSHI Orange Block-Quilted Left Chaise Sectional Sofa Module, model LCH-OR-2000-BQ, presents a sleek modern low-profile form defined by structured block-quilted upholstery, rounded soft edge finishing, and a seamless integrated left armrest and backrest that frame an open right-facing chaise lounge for single extended seating. The cohesive grid channel quilting creates a tailored, contemporary visual rhythm across the seat, back, and arm surfaces, finished in a warm matte orange woven fabric that anchors relaxed lounge layouts. Built for lasting structural integrity, the module’s internal frame combines kiln-dried solid wood and 12mm plywood with corner blocking for stable support. The seat platform uses heavy-gauge sinuous no-sag springs paired with wide elastic webbing to deliver consistent, even support. Seat cushions feature a high-resilience polyurethane foam core wrapped in soft polyester fiber, while backrest and armrests use layered polyurethane foam and polyester padding for balanced, plush comfort. Upholstery is crafted from durable matte woven polyester fabric, mounted on matte black engineering plastic feet fitted with non-marking floor-protecting pads to prevent surface scratches. Fixed non-removable covers are reinforced at quilted seams for long-term wear resistance. Designed for flexible lounge use, the chaise supports both relaxed upright and reclined seated postures as a fixed non-reclining seating unit, with integrated metal clip brackets that allow secure connection to matching center, corner, or additional chaise modules for custom sectional configurations. Only minor assembly is required to attach support feet using included hardware. This chaise module suits a wide range of spaces: it works as primary lounge seating in residential living rooms styled with modern minimalist, contemporary, or mid-century design schemes, fits compact studio apartments, open lofts, or dedicated lounge nooks as a standalone piece without requiring the footprint of a full sectional, and serves as soft seating for commercial settings including office break rooms, boutique waiting areas, and co-working spaces. It pairs naturally with low-profile coffee tables, area rugs, and accent chairs for coordinated space design. Procurement teams and buyers should note the unit ships across two cartons, with a packaged gross weight that should be accounted for in delivery and placement planning. The fixed upholstery means cleaning protocols should align with non-removable fabric care requirements, and planning for modular expansion should account for matching AIMENGSHI sectional components to ensure secure, aligned connections. Assembly for a single unit requires standard basic setup time, with all foot attachment hardware included to eliminate the need for additional specialized parts during installation.
