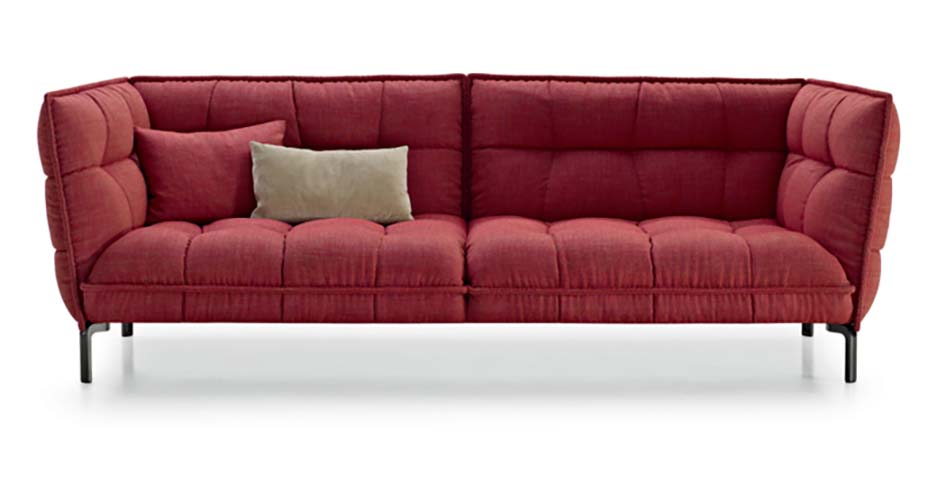

Quilted Grid Upholstered 3-Seater Sofa with Angled Black Metal Legs Specifications

SOF-Q3-2200-RED-MTL

代码:DLCCGWV1
获取供应商报价
2026-09-09 13:19人气: 11
参数纠错历史记录(所有访客可见)
纠错时间修改字段原参数修改后参数说明 / 状态
暂无参数纠错记录,发现错误可点击行末旗标提交

SOF-Q3-2200-RED-MTL

1家生产中供应商 >>
PRODUCT MODULE 01 / 06

基础物理尺寸

mm / 英寸自动双单位换算 · 工程采购基础规格

overall dimensions2200 x 940 x 880 mm
seat height from floor450 mm
seat depth (front to back)640 mm
armrest height from floor670 mm
metal leg height180 mm
clearance under sofa frame180 mm
single seat cushion width670 mm
backrest height above seat430 mm
armrest width at front edge120 mm
throw pillow dimensions450 x 450 mm (red), 500 x 300 mm (beige)
Seat Cushion Thickness180 mm
Back Cushion Thickness160 mm
Leg Height / Floor Clearance160 mm
PRODUCT MODULE 02 / 06

重量、承重与性能参数

净重 / 最大承重 / 适用人数 / 耐久性能

net product weight90 kg
total static load capacity450 kg
seat foam density45 kg/m³
seat foam rebound rate60%
fabric abrasion resistance30000 cycles
fabric lightfastness ratingGrade 5
seam stitch pitch8 stitches per 30mm
frame static load durability100000 cycles
recommended maximum user weight per seat150 kg
Seat Foam Density / Rebound40 kg/m³ / 60%
PRODUCT MODULE 03 / 06

材质与结构参数

工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料

upholstery fabric380g/m² woven linen-blend red fabric
seat cushion fill45kg/m³ high-resilience polyurethane foam wrapped in 20mm Dacron
backrest fill30kg/m³ soft polyurethane foam with polyester fiber wrap
internal support frameKiln-dried solid pine wood frame, 30mm section thickness
seat support system80mm wide elastic webbing, 50mm spaced across seat base
support legs20mm diameter powder-coated matte black angled steel legs
upholstery stitchingHigh-tensile polyester thread, grid quilted stitch construction
throw pillow coversMatching red woven fabric and beige linen-look fabric, removable zip covers
Timber Frame Section / MoisturePrimary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing SpecificationSinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector SpecificationReference M8-M10 with at least 1 mechanical fixing per leg
Reference Upholstery Color CountRecommended 8fabric/leather color options
PRODUCT MODULE 04 / 06

功能与调节参数

升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能

seating configurationFixed straight 3-seat layout with integrated curved armrests
upholstery designFull grid quilted tufting across seat, back and arm panels
leg assemblyKnock-down leg attachment with bolt-on installation, no full sofa assembly required
floor protectionNon-slip plastic foot pads fitted to each leg base
decor accessory inclusionTwo matching throw pillows (1 red, 1 beige) included with sofa
cover removalSeat and back cushion covers have hidden zip fasteners for removal and cleaning
under-seat clearance180mm open space under frame allows standard robot vacuum access
structural stabilityAngled leg geometry provides outward weight distribution for reduced frame wobble
Cushion Service ConfigurationRecommended 2removable/replaceable cushion methods
PRODUCT MODULE 05 / 06

包装与物流参数

经核验的外箱 / 毛重 / 组装 / 装柜数据

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Module Carton Dimensions2200× 1050× 850 mm
Reference Packaging Volume1.8 m³/item
Reference Packaged Gross Weight110 kg/item
PRODUCT MODULE 06 / 06

应用场景与使用方式

推荐空间 / 目标用户 / 使用方式

residential living roomPrimary seating for 3 adults in mid-century modern or contemporary living spaces
small office reception areaStylish guest seating for boutique office or studio reception zones
boutique lounge spaceSeating for independent cafes, beauty salons or creative studio breakout areas
open-plan apartment livingSpace-efficient straight sofa suitable for 120sqm urban apartment layouts
recommended pairingMatches with low-profile rectangular coffee tables 1400 mm in length
floor type suitabilityPerforms well on hardwood, tile and short-pile carpet floors with included foot pads
STANDARD S1

欧盟市场准入要求 * EN 标准

欧洲市场准入与化学品要求

upholstered furniture durabilityEN 12520:2015
furniture flammabilityEN 1021:2014
STANDARD S3

适用于中国市场项目的标准 * GB 标准

适用于中国市场项目的标准

upholstered sofa safetyGB 28007
furniture formaldehyde emissionGB 18584
fabric colorfastnessGB/T 19817
招标文件标准化描述文本
本产品须满足以下技术参数要求:
1. upholstered sofa safety:GB 28007;
2. furniture formaldehyde emission:GB 18584;
3. fabric colorfastness:GB/T 19817;
最终交付参数、检测报告和验收标准以双方采购合同为准。
GENERATED EXPORTS

一键导出完整商品资料

以下文件均根据当前已发布商品参数实时生成。

完整参数报告 PDF

直接下载英文参数报告,可选择公制或英制单位。

PDF · SOF-Q3-2200-RED-MTL

完整参数 Excel

导出全部商品信息与参数模块,文件内容统一使用英文。

XLSX · SOF-Q3-2200-RED-MTL

外贸 Listing 模板

包含英文标题、规格、材质、标准和采购字段,可用于国际平台刊登。

XLSX · LISTING

海关申报数据

生成申报品名、材质、用途、尺寸及海关申报要素。

CUSTOMS · SOF-Q3-2200-RED-MTL打开导出工具

页面快速操作

发布采购询价

产品描述

The AIMENGSHI Quilted Grid Upholstered 3-Seater Sofa, model SOF-Q2200-RED-MTL, is a modern fixed-structure seating solution designed for both residential and light commercial settings. Its visual profile features a straight, streamlined form with integrated curved armrests, defined by consistent grid quilted tufting that spans the seat, back, and arm panels for a tailored, textured appearance. Angled matte black metal legs elevate the frame, creating a light, open silhouette balanced by the rich red woven linen-blend upholstery. Two included throw pillows—one in matching red fabric, one in beige linen-look fabric—add subtle tonal contrast to the design. Built for durable daily use, the sofa rests on a kiln-dried solid pine wood frame with primary sections meeting specified thickness requirements and recommended moisture content for long-term structural stability. The seat support system uses wide elastic webbing spaced evenly across the base, topped with high-resilience polyurethane foam cushions wrapped in Dacron for a balanced, supportive sit. Backrests use softer polyurethane foam with a polyester fiber wrap for relaxed comfort. Upholstery is constructed from heavyweight woven linen-blend fabric, stitched with high-tensile polyester thread in the signature grid quilted pattern. Angled steel legs feature a powder-coated matte black finish, with non-slip plastic foot pads fitted to each base to protect flooring surfaces. Functional details support convenient, everyday use. The fixed three-seat layout accommodates three adults comfortably, with hidden zippers on seat and back cushion covers to allow easy removal for cleaning; the included throw pillows also have removable zip covers. The open clearance beneath the frame accommodates standard robot vacuums for simplified floor maintenance. Legs attach via a bolt-on knock-down system, with no full sofa assembly required for setup. This sofa suits a range of spaces: it serves as primary living room seating for mid-century modern or contemporary residential interiors, fits efficiently in open-plan urban apartment layouts, works as stylish guest seating for small boutique office or studio reception areas, and complements lounge zones in independent cafes, beauty salons, or creative studio breakout spaces. It performs reliably on hardwood, tile, and short-pile carpet floors, and pairs well with low-profile rectangular coffee tables of matching scale. For procurement, note that each unit ships in two cartons, with a packaged gross weight of 110 kg; reference assembly time per unit is 40 minutes. Total static load capacity meets rated limits, and the upholstery fabric delivers tested abrasion resistance and lightfastness for long-term appearance retention in regular use settings.
