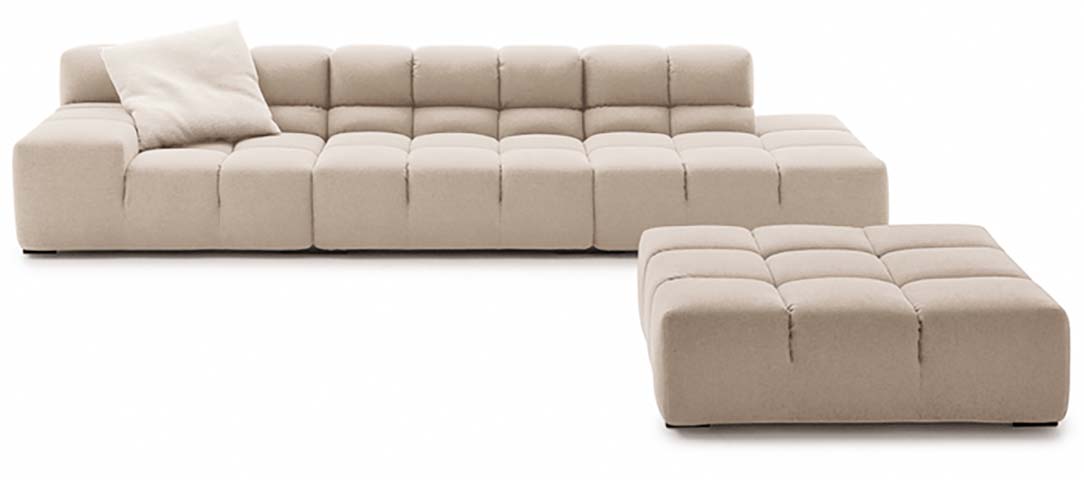

商品供应商Beige Tufted Grid Modular Sectional Sofa with Matching Ottoman，Matte beige polyester-blend woven fabric, soft textured surface
可联系供应商获取生产周期与报价。
PRODUCT MODULE 01 / 06
基础物理尺寸
mm / 英寸自动双单位换算 · 工程采购基础规格
数据来源：工厂资料结构化字段，最终以实测值为准
| 产品外部尺寸（宽 × 深 × 高） | 3760 × 1420 × 850 mm | |
|---|---|---|
| Overall sofa dimensions (W x D x H) | 3760 x 1420 x 850 mm | |
| Matching ottoman dimensions (W x D x H) | 1100 x 970 x 450 mm | |
| Seat height from floor | 460 mm | |
| Seat cushion depth (usable surface) | 610 mm | |
| Left armrest width | 300 mm | |
| Left armrest height from seat | 160 mm | |
| Seat cushion thickness | 200 mm | |
| Backrest height from seat | 390 mm | |
| Backrest cushion thickness | 150 mm | |
| Support foot height | 30 mm | |
| Ottoman seat height from floor | 450 mm | |
| Single modular seat module width | 630 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
重量、承重与性能参数
净重 / 最大承重 / 适用人数 / 耐久性能
数据来源：产品性能数据，采购前请核对具体测试口径
| Total set net weight (reference) | 86 kg | |
|---|---|---|
| Per-seat static weight capacity | 227 kg | |
| Total sofa static weight capacity | 1360 kg | |
| Ottoman static weight capacity | 227 kg | |
| Seat cushion foam density | 45 kg/m³ | |
| Seat foam rebound rate | 60% | |
| Upholstery fabric abrasion resistance | 30000 double rubs | |
| Seam stitch pitch | 8 mm | |
| Frame structural warranty | 3 years | |
| Available standard color variants | 5 |
PRODUCT MODULE 03 / 06
材质与结构参数
工程采购验收核心字段 · 面板基材 / 五金 / 框架 / 面料
数据来源：以工厂材质清单与验货报告为准
| Upholstery fabric | Matte beige polyester-blend woven fabric, soft textured surface | |
|---|---|---|
| Internal load-bearing frame | Kiln-dried solid wood with 18mm plywood reinforcement, corner-blocked joints | |
| Seat cushion core | 45kg/m³ high-density polyurethane foam wrapped in 200g polyester fiber | |
| Back cushion fill | 30kg/m³ medium-density polyurethane foam with fiber topper | |
| Support feet | Dark powder-coated steel or hardened plastic low-profile glide feet | |
| Tufted grid stitching | High-tensile polyester thread, secured through cushion core to prevent shifting | |
| Modular connection hardware | Powder-coated steel clip brackets between modules for secure alignment | |
| Included throw pillow | Matching beige fabric cover, filled with down-alternative polyfiber | |
| Cushion covers | Zippered removable covers for spot cleaning or washing | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg |
PRODUCT MODULE 04 / 06
功能与调节参数
升降 / 旋转 / 倾仰 / 锁定 / 移动 / 储物功能
数据来源：功能配置参数，以供应商正式规格为准
| Modular reconfiguration | Steel clip brackets allow repositioning of sofa modules and ottoman | |
|---|---|---|
| Ottoman multipurpose use | Freestanding ottoman functions as footrest, extra seating, or chaise extension | |
| Cushion cover removal | Zippered seat and back cushion covers allow removal for cleaning | |
| Floor protection | Low-profile glide feet prevent scuffing on hard flooring surfaces | |
| Tufted grid stabilization | Stitched grid pattern secures cushion fill to prevent shifting with use | |
| Flexible layout options | Right-end armless design allows extension with additional matching modules | |
| Reversible cushion design | Seat cushions are reversible to extend upholstery wear life | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
包装与物流参数
经核验的外箱 / 毛重 / 组装 / 装柜数据
数据来源：外贸报价与装柜测算参考
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
应用场景与使用方式
推荐空间 / 目标用户 / 使用方式
数据来源：依据产品结构与品类整理的推荐应用场景
| Residential living room main seating | Suitable for 6person lounge seating in open-plan modern apartments | |
|---|---|---|
| Apartment and small-space use | Low-profile blocky form works in compact urban living rooms without visual bulk | |
| Casual lounge and entertainment spaces | Deep cushions and modular layout support relaxed seating for gatherings | |
| Modern minimalist interior schemes | Neutral beige color and clean geometric form match Scandinavian, Japandi, modern decor | |
| Home studio or loft open spaces | Large linear configuration anchors open-concept living and work zones | |
| Complementary matching ottoman use | Ottoman adds footrest capacity, extra guest seating, or temporary low table surface |
STANDARD S1
欧盟市场准入要求 * EN 标准
欧洲市场准入与化学品要求
| EN 12520:2015 | Furniture seating strength, durability, stability requirements for domestic use | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture flammability cigarette ignition resistance |
STANDARD S3
适用于中国市场项目的标准 * GB 标准
适用于中国市场项目的标准
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to internal frame quality | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable to formaldehyde emission | |
| GB/T 19803-2005 | Test methods for furniture seating mechanical durability, applicable to frame stability |
招标文件标准化描述文本
本产品须满足以下技术参数要求： 1. GB/T 3324-2017：General technical requirements for wooden furniture, applicable to internal frame quality； 2. GB 18584-2001：Limit of harmful substances in wooden furniture, applicable to formaldehyde emission； 3. GB/T 19803-2005：Test methods for furniture seating mechanical durability, applicable to frame stability； 最终交付参数、检测报告和验收标准以双方采购合同为准。
